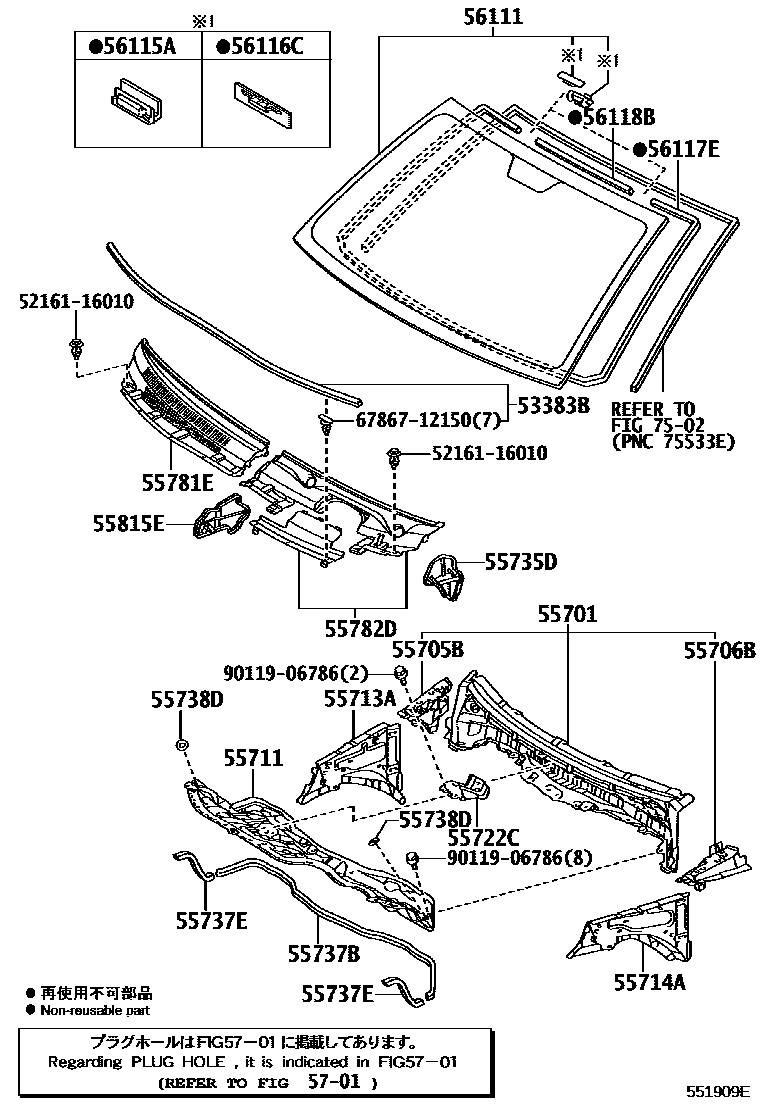

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-52110iZSP110200706-201407

55701PANEL SUB-ASSY, COWL

main55700-52330iZSP110200706-201407

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-52130iZSP110200706-201407

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-52130iZSP110200706-201407

55711PANEL, COWL TOP, OUTER

main55701-52250iZSP110200706-201003

sub55701-52251

main55701-52251iZSP110201004-201407

55713APANEL, COWL TOP SIDE, RH

main55713-52110iZSP110200706-201407

55714APANEL, COWL TOP SIDE, LH

main55714-52110iZSP110200706-201407

55722CBRACE, COWL TOP TO COWL, INNER

main55722-52080iZSP110200706-201407

55735DSEAL, FRONT AIR SHUTTER, RH

main55735-52070iZSP110200706-201407

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-52010iZSP110200706-201407

L=1295

55737ESEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55737-52050iZSP110200706-201407

L=250.0

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55737-52040iZSP110200706-201407

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-52160iZSP110200706-201209

sub55708-52161

main55708-52161iZSP110201210-201407

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-52110iZSP110200706-201407

55815ESEAL, FRONT VENTILATOR, NO.1

main55815-52030iZSP110200706-201407

56111GLASS, WINDSHIELD

main56101-52370iZSP110200706-201407

*LAM,T=4.56,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iZSP110200706-201407

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iZSP110200706-201407

56117EDAM, WINDOW GLASS ADHESIVE

main56117-52160iZSP110200706-201407

L=3043

sub56117-64010

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56118-52110iZSP110200706-201407

L=620

sub56117-74010

5701

7502

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

6786712150CLIP, DOOR WEATHERSTRIP

main67867-12150

9011906786

main90119-06786

25 parts on this diagram · 1 diagram in section
