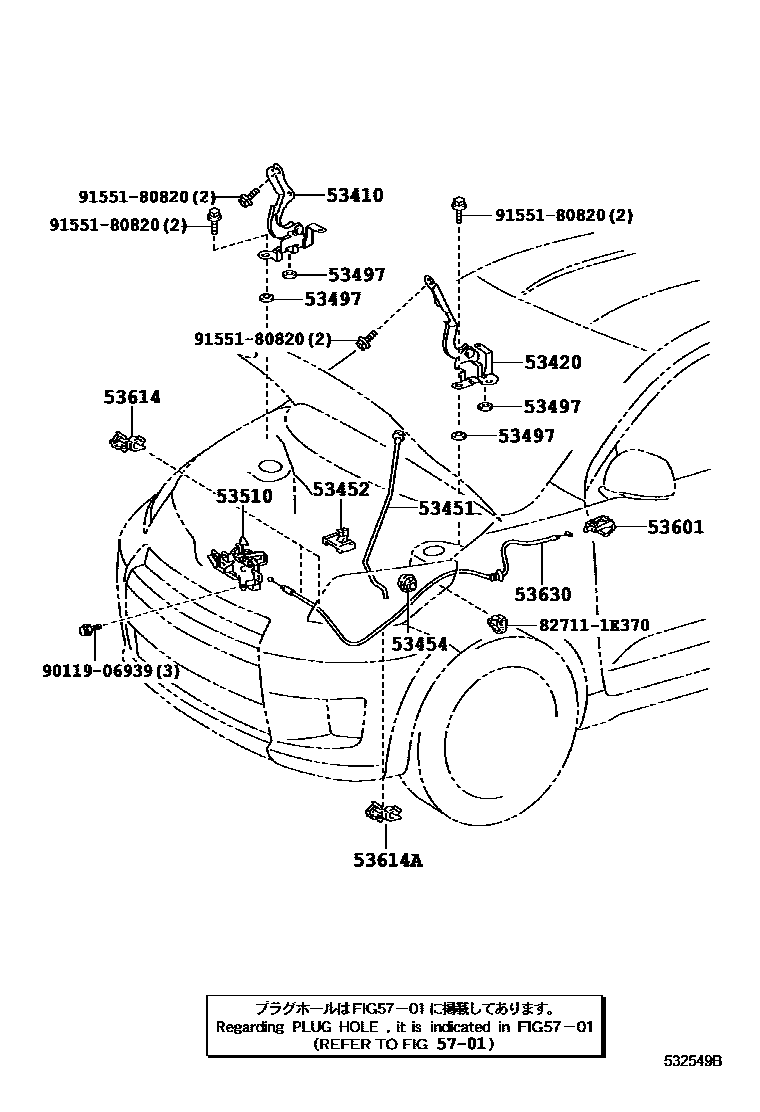

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-52271iZSP110200706-201407

53420HINGE ASSY, HOOD, LH

main53420-52271iZSP110200706-201407

53451ROD, HOOD SUPPORT

main53440-52180iZSP110200706-201407

53452HOLDER, HOOD STAY

main53452-52010iZSP110200706-201407

53454CLIP, HOOD SUPPORT ROD

main53454-52020iZSP110200706-201407

53497PAD, HOOD HINGE, NO.1

main53497-42010iZSP110200706-201407

T=0.5

53510LOCK ASSY, HOOD

main53510-52430iZSP110200706-201407

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B3iZSP110200706-201111

DK.GRAY,TRIM1#

sub53601-52010

main53601-52010-C0iZSP110201111-201407

BLACK,TRIM1#

sub53601-52010

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-52010iZSP110200706-201407

53614ACLAMP, HOOD LOCK CONTROL CABLE, NO.1

main53614-52020iZSP110200706-201407

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52110iZSP110200706-201407

5701

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

9011906939

main90119-06939

9155180820

main91551-80820

15 parts on this diagram · 1 diagram in section
