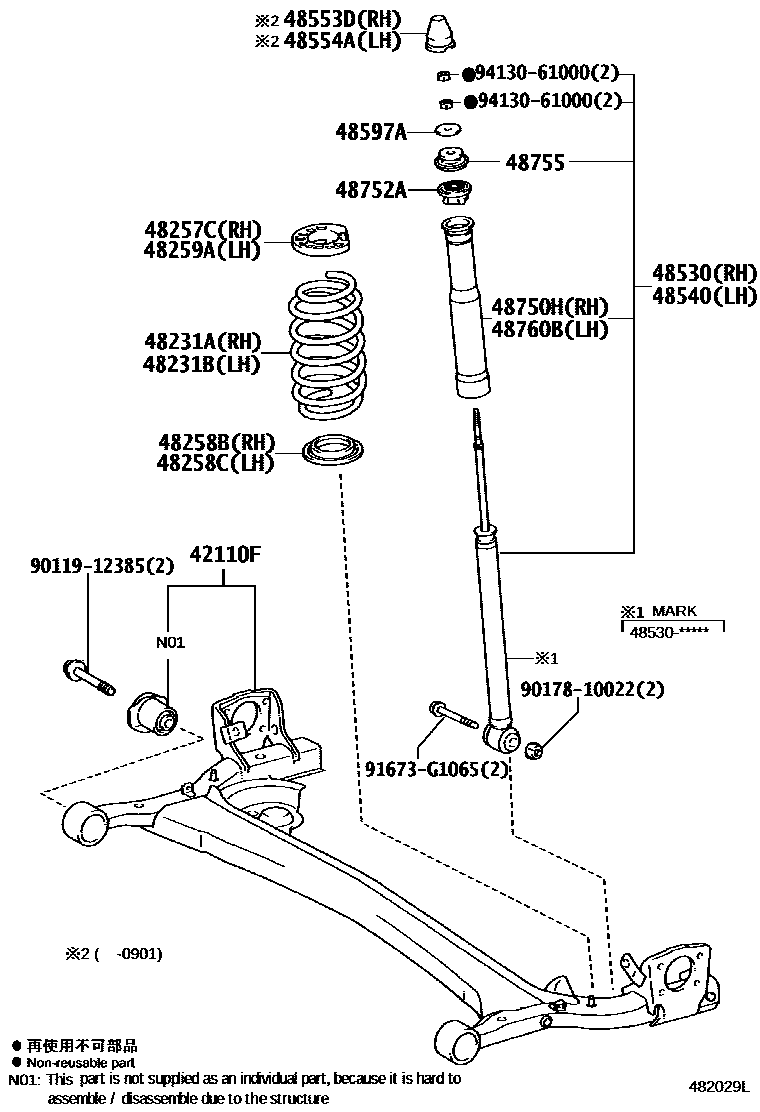

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42110-52331iZSP110200706-201005

sub42110-52332

main42110-52332iZSP110201006-201407

48231ASPRING, COIL, REAR RH

main48231-52D20iZSP110200706-200709

sub48231-52D21

main48231-52D21iZSP110200709-201008

main48231-52F80iZSP110201008-201407

48231BSPRING, COIL, REAR LH

main48231-52D20iZSP110200706-200709

sub48231-52D21

main48231-52D21iZSP110200709-201008

main48231-52F80iZSP110201008-201407

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-52010iZSP110200706-201407

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-52030iZSP110200706-201407

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-52030iZSP110200706-201407

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-52010iZSP110200706-201407

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-80438iZSP110200706-201008

MARK 48530-52E20

main48530-80573iZSP110201008-201407

MARK 48530-52G30

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-80438iZSP110200706-201008

MARK 48530-52E20

main48530-80573iZSP110201008-201407

MARK 48530-52G30

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-52010iZSP110200706-200901

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-52010iZSP110200706-200901

48597ARETAINER, REAR SHOCK ABSORBER CUSHION

main90201-10320iZSP110200706-201407

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-52100iZSP110200706-201402

main48750-52200iZSP110201403-201407

48752ASTOPPER, REAR SUSPENSION SUPPORT

main48752-52010iZSP110200706-201407

48755SUPPORT, REAR SUSPENSION

main48755-52010iZSP110200706-201407

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-52100iZSP110200706-201402

main48750-52200iZSP110201403-201407

9011912385

main90119-12385

9017810022

main90178-10022

91673G1065

main91673-G1065

9413061000

main94130-61000

20 parts on this diagram · 1 diagram in section
