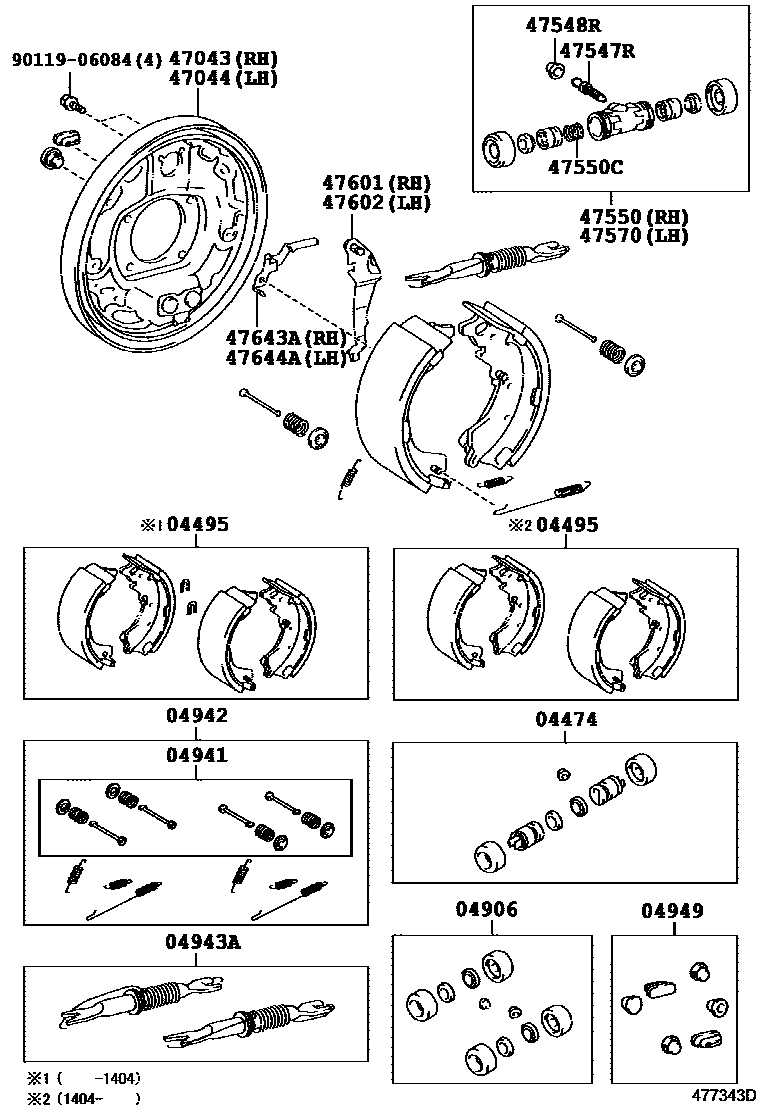

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-52140iZSP110¥1,570200706-201407

04495SHOE KIT, REAR BRAKE

main04495-52120iZSP110¥7,600200706-201404

MARK NBK LN521

sub04495-52121¥4,700

main04495-52121iZSP110¥4,700201404-201407

MARK NBK LN521

04906CUP KIT, REAR WHEEL CYLINDER

main04906-28040iZSP110¥870200706-201407

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-28010iZSP110¥1,860200706-201407

04942SPRING KIT, REAR BRAKE

main04942-13030iZSP110¥2,070200706-201407

04943ASTRUT KIT, REAR BRAKE

main04943-52030iZSP110¥2,460200706-201407

04949PLUG KIT, REAR BRAKE

main04949-13010iZSP110¥800200706-201407

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-52120iZSP110¥2,810200706-201407

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-52120iZSP110¥2,810200706-201407

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-27030iZSP110¥180200706-201407

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iZSP110¥160200706-201407

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-28060iZSP110¥3,560200706-201407

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-09079iZSP110¥90201404-201407

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-28060iZSP110¥3,560200706-201407

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-12480iZSP110¥580200706-201312

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-12480iZSP110¥580200706-201312

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-52120iZSP110¥200200706-201407

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-52120iZSP110¥200200706-201407

9011906084

main90119-06084¥100

19 parts on this diagram · 1 diagram in section
