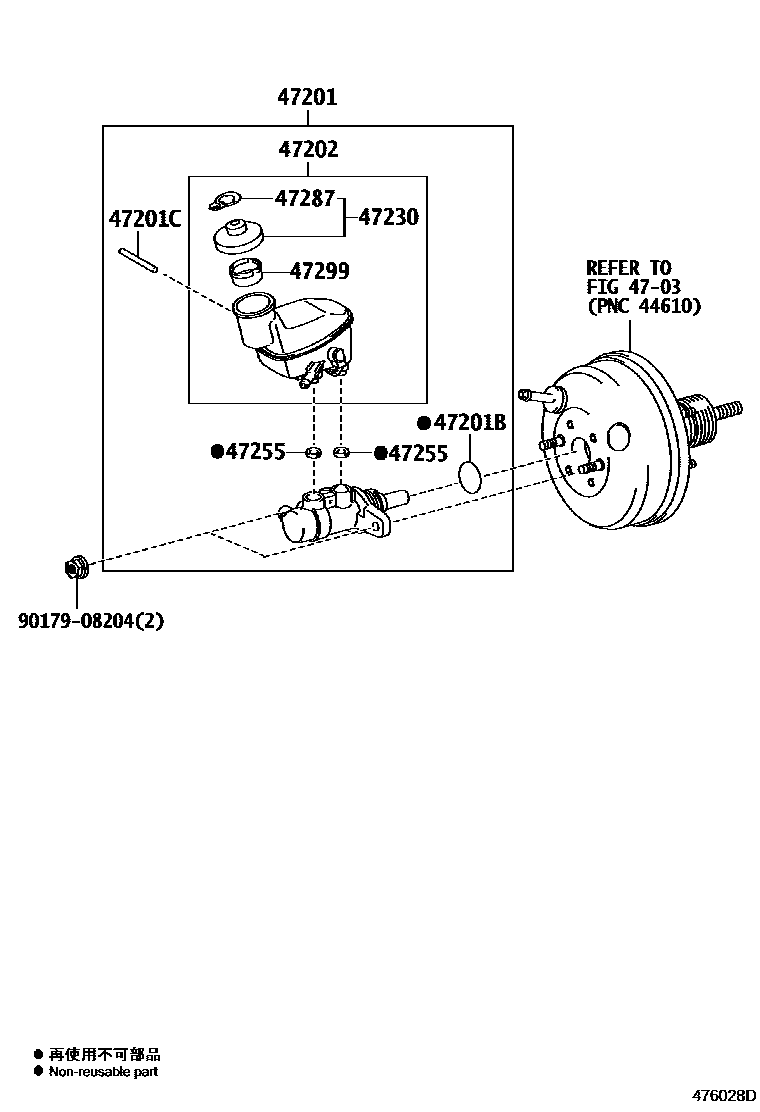

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-52420iZSP110..5F200706-201008

sub47201-52421

main47201-52430iZSP110..4FC200706-201008

sub47201-52431

main47201-52730iZSP110..5F201008-201202

sub47201-52731

main47201-52731iZSP110..5F201203-201204

sub47201-52732

main47201-52732iZSP110..5F201205-201407

main47201-52740iZSP110..4FC201008-201202

sub47201-52741

main47201-52741iZSP110..4FC201203-201204

sub47201-52742

main47201-52742iZSP110..4FC201205-201407

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iZSP110200706-201407

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iZSP110200706-201407

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-52190iZSP110..5F200706-201407

main47220-52200iZSP110..4FC200706-201407

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iZSP110200706-201407

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iZSP110200706-201407

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iZSP110200706-201407

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iZSP110200706-201407

9017908204

main90179-08204

10 parts on this diagram · 1 diagram in section
