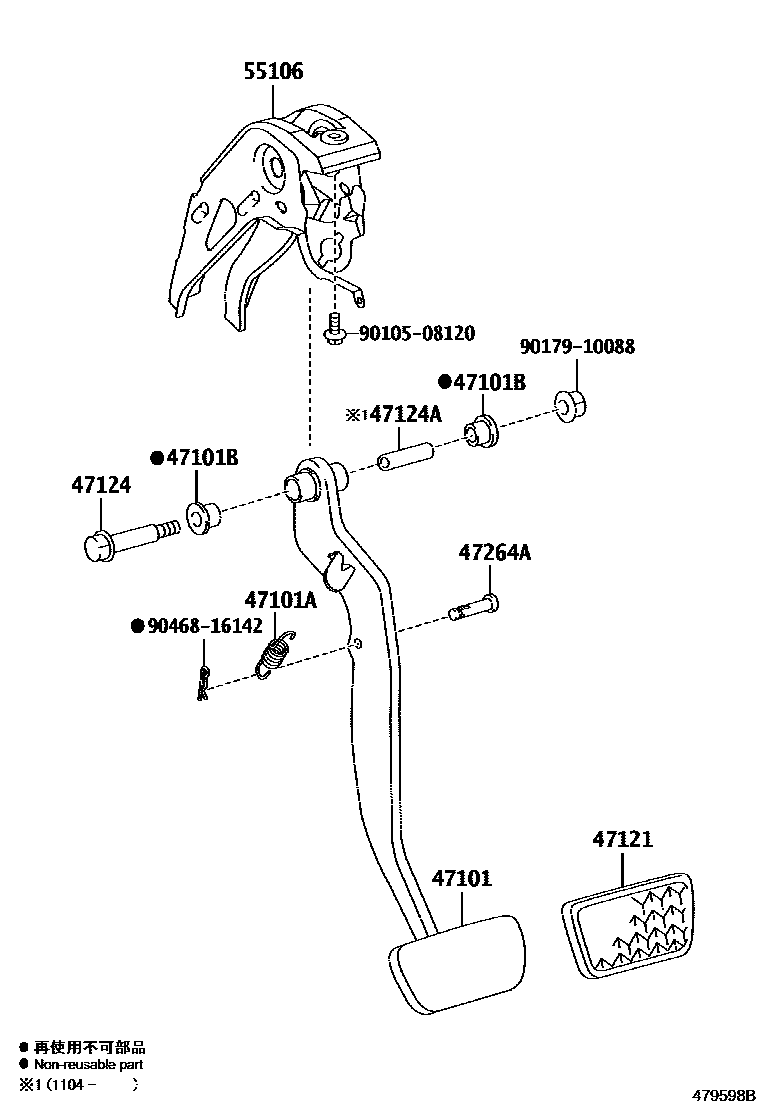

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-52250iZSP110..5F¥2,620200706-201106

sub47101-52251

main47101-52251iZSP110..5F201107-201407

main47101-52260iZSP110..4FC¥2,790200706-201106

sub47101-52261

main47101-52261iZSP110..4FC201107-201407

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iZSP110¥180200706-201205

main90506-14088iZSP110¥120201205-201407

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iZSP110¥120200706-201407

47121PAD, BRAKE PEDAL

main31321-52010iZSP110..5F¥200200706-201407

main47121-52010iZSP110..4FC¥260200706-201407

47124SHAFT, BRAKE PEDAL

main90105-10444iZSP110¥160201104-201407

main90109-10167iZSP110¥190200706-201104

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iZSP110¥370201104-201407

47264APIN(FOR PUSH ROD)

main90249-08051iZSP110¥170200706-201407

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-52160iZSP110¥3,370200706-201104

sub55106-52H02¥4,120

main55106-52161iZSP110¥2,810201104-201407

9010508120

main90105-08120¥90

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

11 parts on this diagram · 1 diagram in section
