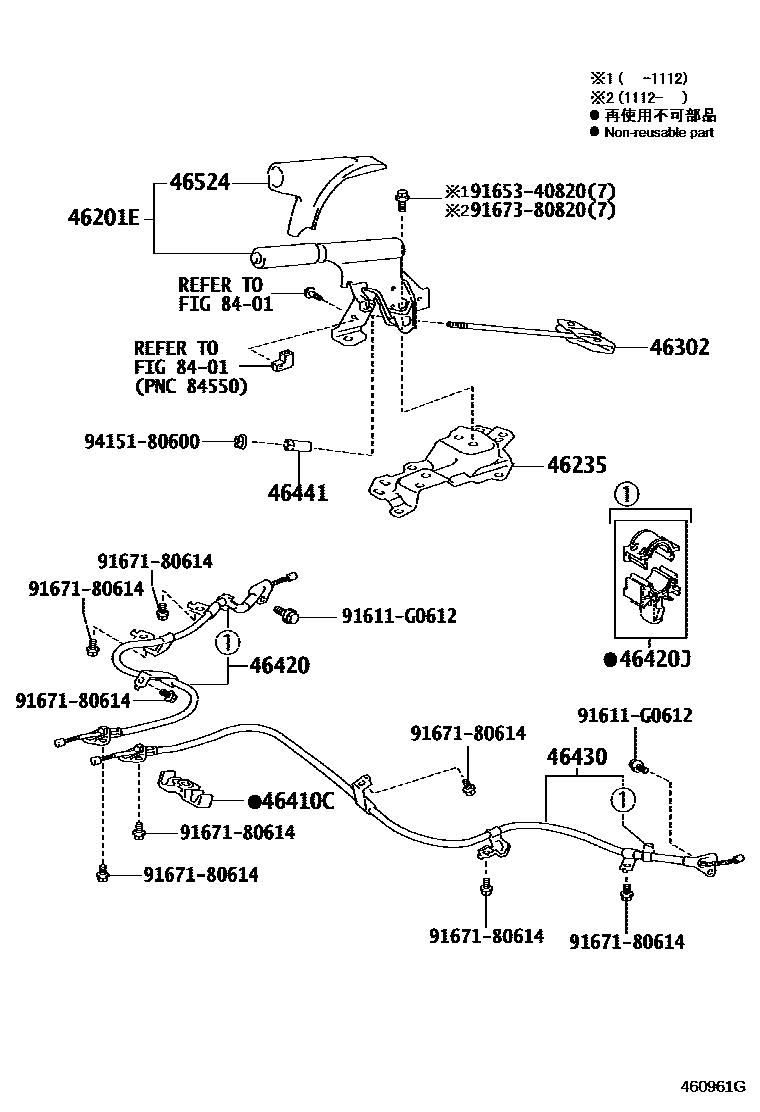

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-52070-B0iZSP110200706-201407

DK.GRAY,TRIM1#

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-52020iZSP110200706-201407

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-52030iZSP110200706-201407

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-52030iZSP110200706-201407

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52270iZSP110200706-201204

sub46420-52271

main46420-52271iZSP110201205-201407

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46402-52030iZSP110200706-201407

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52270iZSP110200706-201407

46441NUT, WIRE ADJUSTING, NO.1

main46441-52010iZSP110200706-201407

46524COVER, PARKING BRAKE DUST

main46524-52020iZSP110200706-201407

8401

91611G0612

main91611-G0612

9165340820

main91653-40820

9167180614

main91671-80614

9167380820

main91673-80820

9415180600

main94151-80600

15 parts on this diagram · 1 diagram in section
