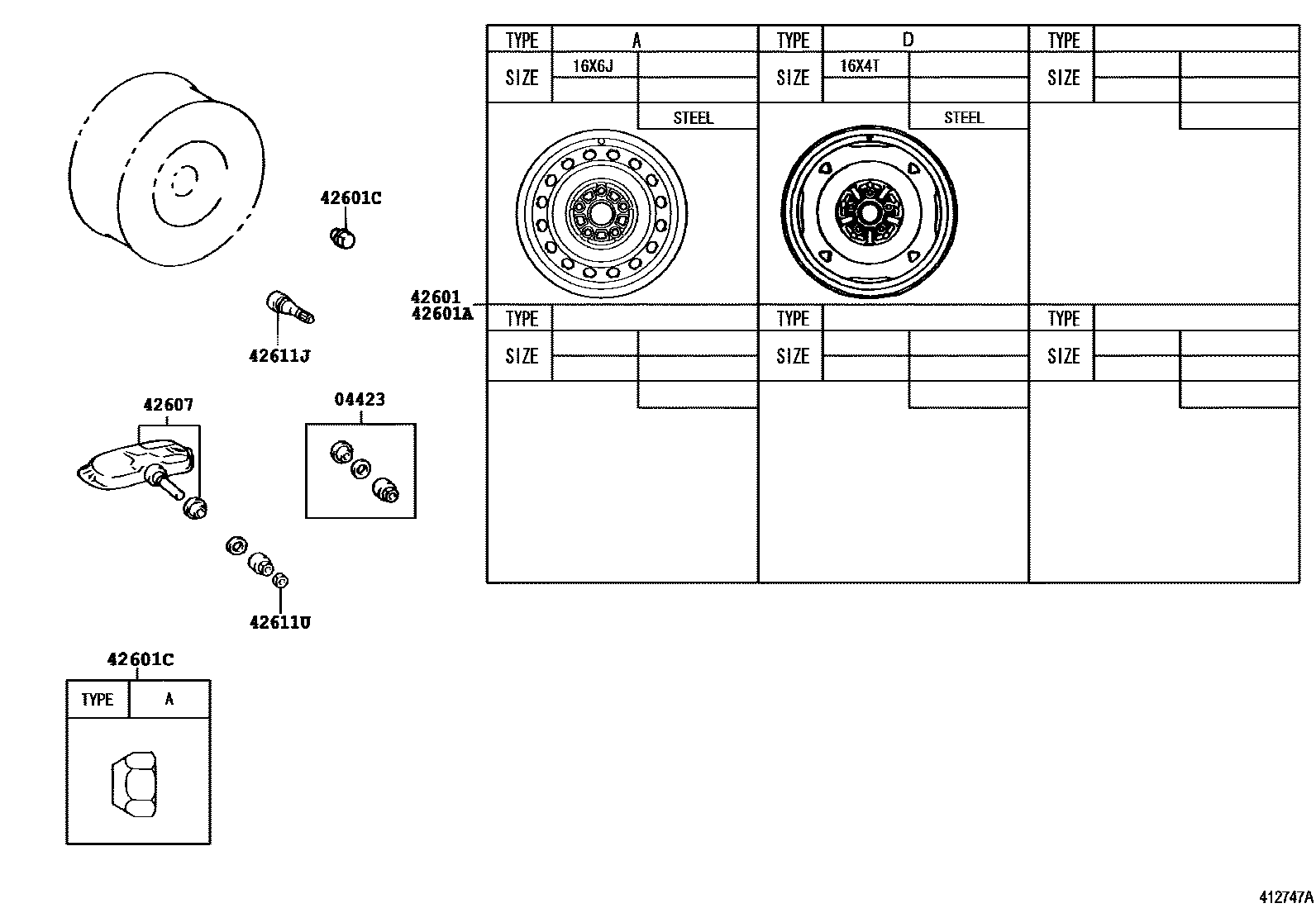

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33030iZSP110200706-201407

sub04423-33060

42601WHEEL, DISC

main42611-52620iZSP110200706-201407

16X6J,#,TYPE A:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-20840iZSP110200706-201004

16X4T,TYPE D:REFER ILLUST.

sub42611-20841

main42611-20A50iZSP110201004-201407

16X4T,TYPE D:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01007iZSP110200706-201407

TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-33011iZSP110200706-201407

sub42607-33012

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iZSP110200706-201407

42611UCAP, TIRE VALVE

main90942-05039iZSP110200706-201407

7 parts on this diagram · 1 diagram in section
