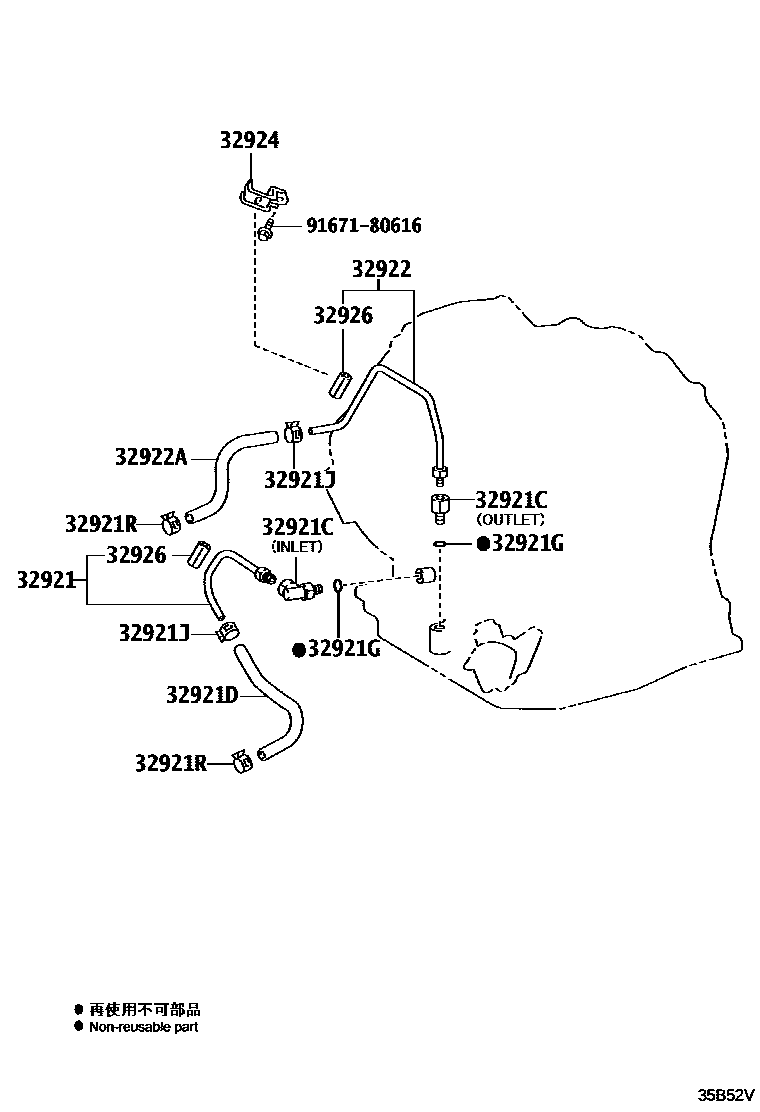

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-52110iZSP110..4FC200706-201407

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iZSP110..4FC200706-201407

OUTLET

main90407-14003iZSP110..4FC200706-201407

INLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-15044iZSP110..4FC200706-201407

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10018iZSP110..4FC201307-201407

main90301-10189iZSP110..4FC200706-201307

32921JCLIP(FOR OIL COOLER HOSE)

main96135-51300iZSP110..4FC200706-201407

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main96137-41501iZSP110..4FC200706-201407

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-52100iZSP110..4FC200706-201407

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15044iZSP110..4FC200706-201407

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-52030iZSP110..4FC200706-201407

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010iZSP110..4FC200706-201407

L=30,ID=8

main32926-22010iZSP110..4FC200706-201407

L=35,ID=8

9167180616

main91671-80616

11 parts on this diagram · 1 diagram in section
