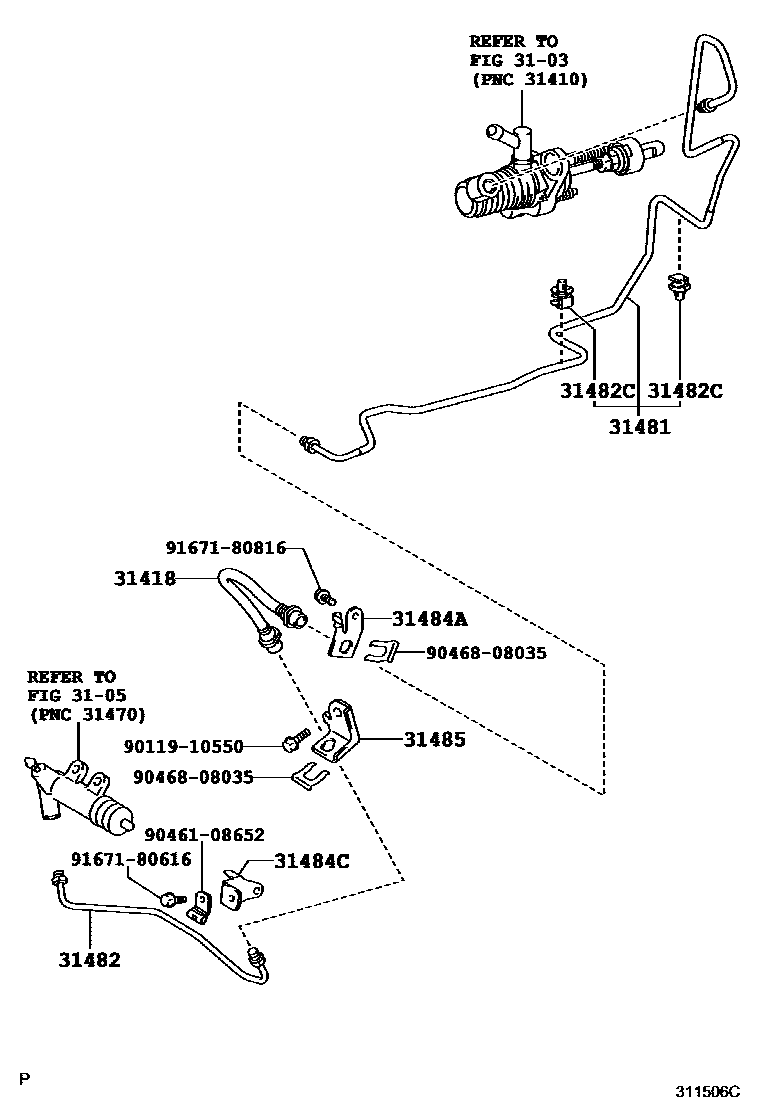

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

3103

3105

31418HOSE, CLUTCH

main90947-02E09iZSP110..5F200706-201407

31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

main31481-52110iZSP110..5F200706-201407

31482TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE

main31482-52070iZSP110..5F200706-201407

31482CCLAMP(FOR CLUTCH TUBE)

main90949-01D17iZSP110..5F200706-201407

31484ABRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)

main31484-52090iZSP110..5F200706-201407

31484CBRACKET, CLUTCH TUBE, NO.1

main31484-52150iZSP110..5F200706-201407

31485BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)

main31484-52050iZSP110..5F200706-201407

9011910550

main90119-10550

9046108652

main90461-08652

9046808035

main90468-08035

9167180616

main91671-80616

9167180816

main91671-80816

14 parts on this diagram · 2 diagrams in section
