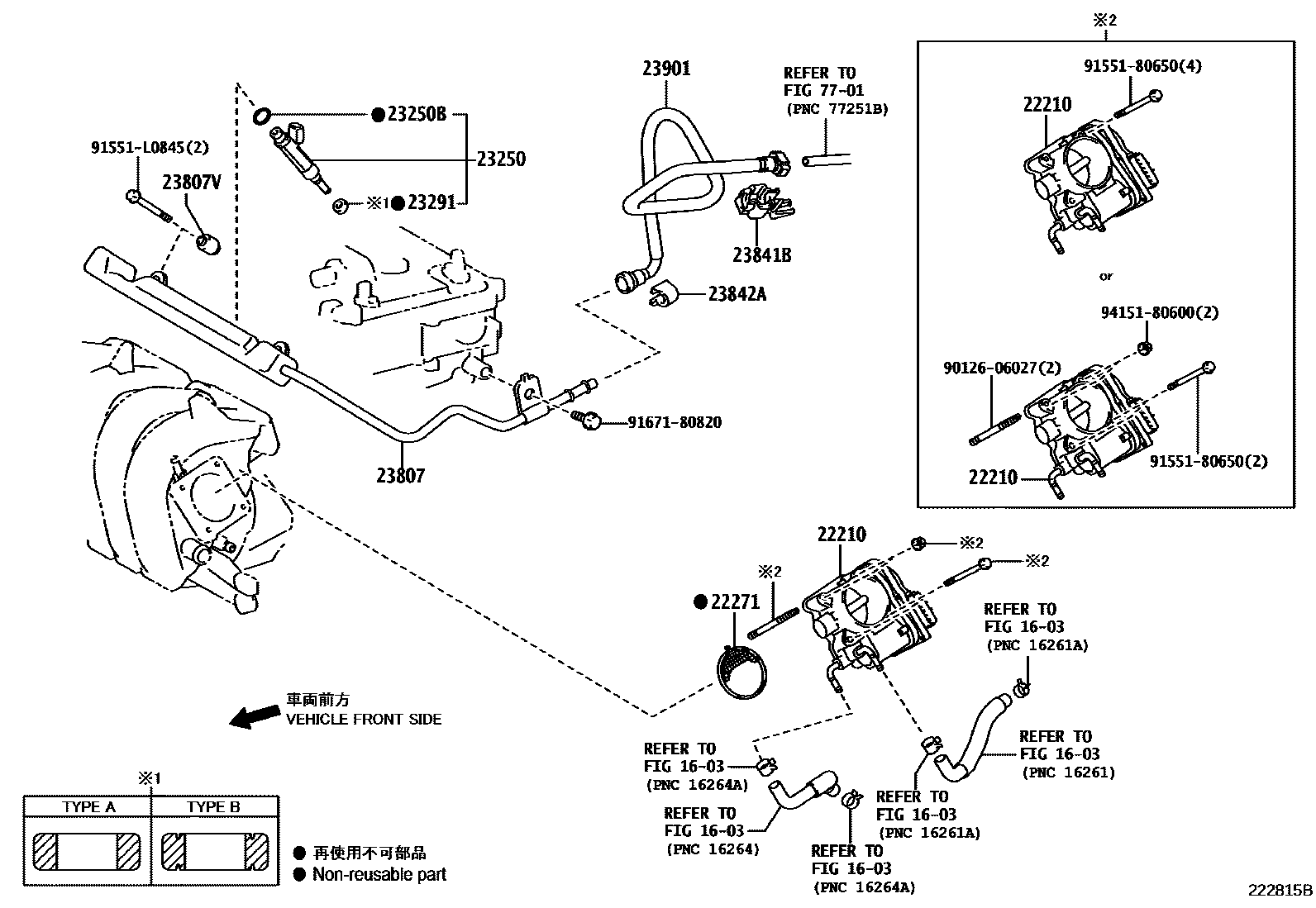

FUEL INJECTION SYSTEM

1603

22210BODY ASSY, THROTTLE

main22030-37020i2ZRFE..ZSP110200706-201208

main22030-37040i2ZRFE..ZSP110201208-201407

main22030-37080i2ZRFE..ZSP110200906-200909

22271GASKET, THROTTLE BODY

main22271-0D051i2ZRFE..ZSP110200906-200909

(L)

main22271-75031i2ZRFE..ZSP110200706-201407

(J)

23250INJECTOR ASSY, FUEL

main23209-39145i2ZRFE..ZSP110200706-200902

main23209-39146i2ZRFE..ZSP110200902-201407

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i2ZRFE..ZSP110200706-201407

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i2ZRFE..ZSP110200805-200902

main23291-23010i2ZRFE..ZSP110201001-201407

TYPE A:REFER ILLUST.

main23291-28020i2ZRFE..ZSP110200902-201001

main23291-28020i2ZRFE..ZSP110201001-201407

TYPE B:REFER ILLUST.

main23291-41010i2ZRFE..ZSP110200706-200805

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-37050i2ZRFE..ZSP110200706-201108

sub23814-37051

main23814-37051i2ZRFE..ZSP110201108-201407

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-37010i2ZRFE..ZSP110200706-201407

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i2ZRFE..ZSP110200706-201407

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i2ZRFE..ZSP110200706-201407

23901TUBE SUB-ASSY, FUEL

main23901-37050i2ZRFE..ZSP110200706-201407

7701

9012606027

main90126-06027

9155180650

main91551-80650

91551L0845

main91551-L0845

9167180820

main91671-80820

9415180600

main94151-80600

17 parts on this diagram · 1 diagram in section
