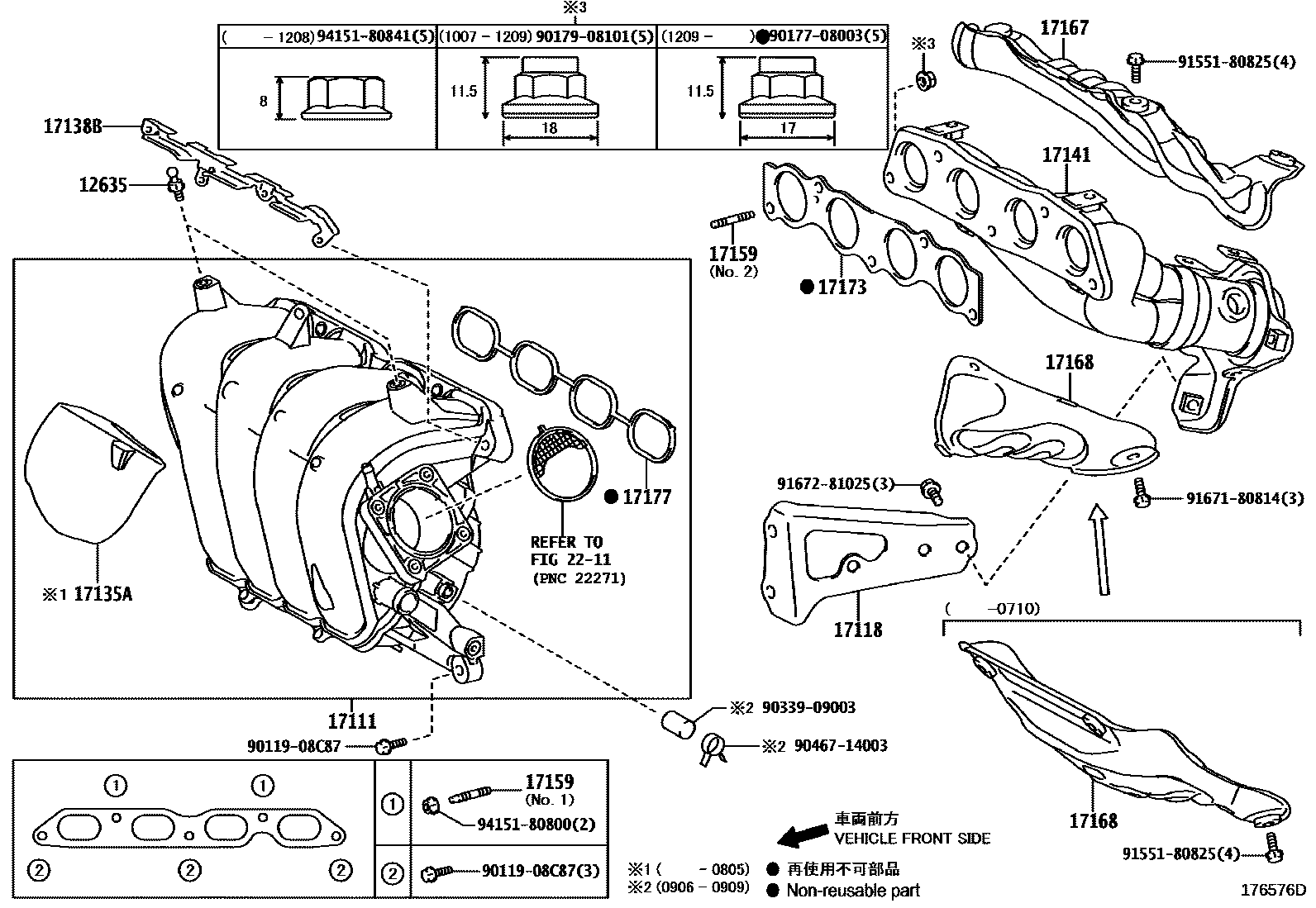

MANIFOLD
12635JOINT, ENGINE COVER
17118STAY, MANIFOLD
17135AINSULATOR, INTAKE MANIFOLD, NO.1
17138BSTAY, INTAKE MANIFOLD
17141MANIFOLD, EXHAUST
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.2
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
(L)
(J)
2211
9011908C87
main90119-08C87
9017708003
main90177-08003
9017908101
main90179-08101
9033909003
main90339-09003
9046714003
main90467-14003
9155180825
main91551-80825
9167180814
main91671-80814
9167281025
main91672-81025
9415180800
main94151-80800
9415180841
main94151-80841
22 parts on this diagram · 1 diagram in section
