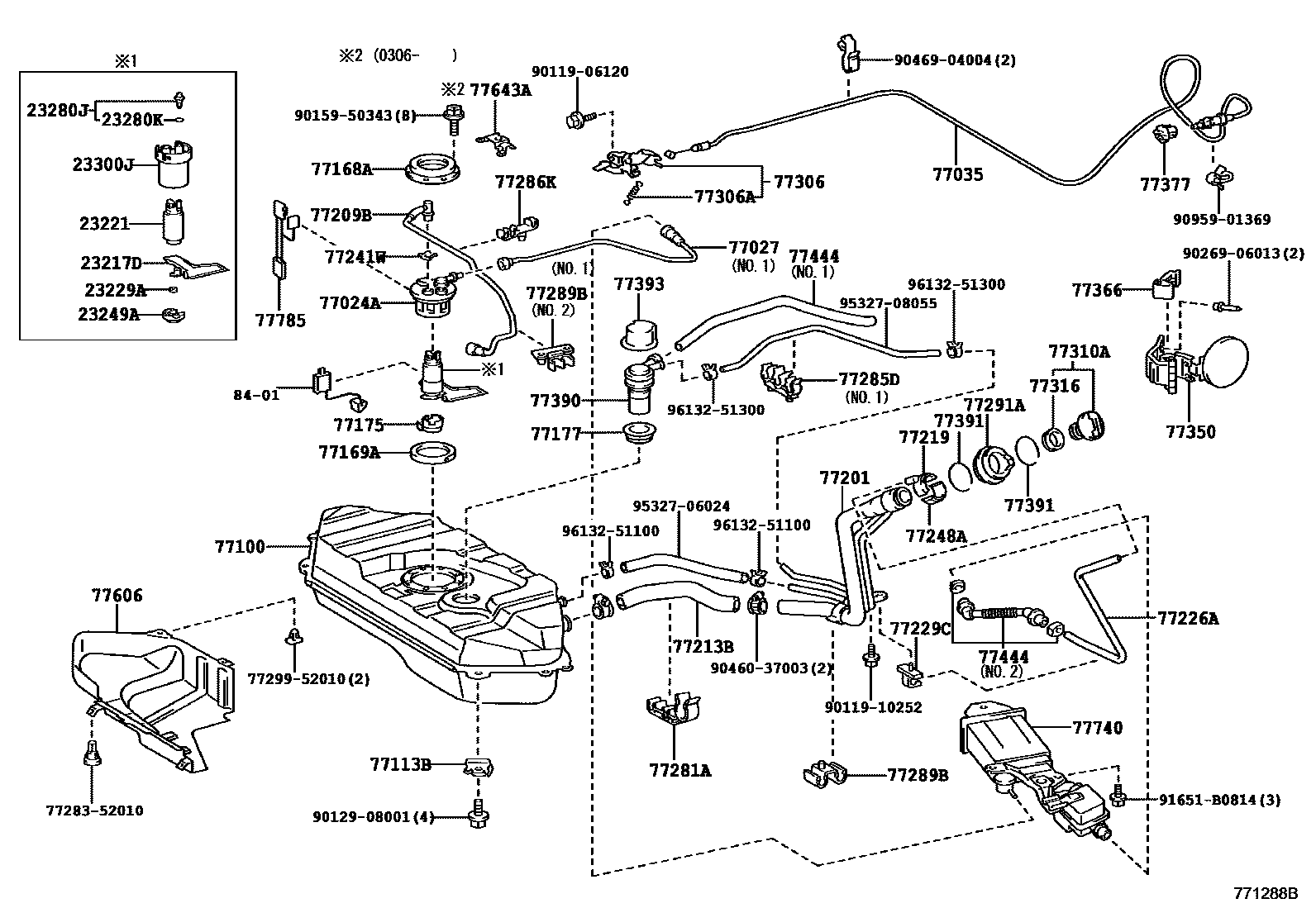

FUEL TANK & TUBE
23217DFILTER, FUEL PUMP
23221PUMP, FUEL
sub23221-21060
23229ACLIP(FOR FUEL PUMP FILTER)
23249ARUBBER, CUSHION(FOR FUEL PUMP)
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
23300JFILTER ASSY, FUEL
77024APLATE SUB-ASSY, FUEL SUCTION
77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
NO.1
NO.2
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77113BPLATE, FUEL TANK SIDE
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77285DCLAMP, FUEL TUBE, NO.1
NO.2
NO.1
77286KCLAMP, FUEL TUBE, NO.2
77289BCLAMP, FUEL TUBE, NO.3
NO.2
NO.1
NO.3
77291ASHIELD, FUEL TANK FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306ASPRING, FUEL LID OPEN LEVER
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77444HOSE, FUEL TANK VENT
NO.1
NO.2
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77643APROTECTOR, FUEL TANK, NO.3
77785HARNESS, FUEL PUMP
8401
7728352010BRACKET, FUEL TUBE
main77283-52010
7729952010CLAMP, FUEL TUBE W/GROMMET, NO.5
main77299-52010
9011906120
main90119-06120
9011910252
main90119-10252
9012908001
main90129-08001
9015950343
main90159-50343
9026906013
main90269-06013
9046037003
main90460-37003
9046904004
main90469-04004
9095901369
main90959-01369
91651B0814
main91651-B0814
9532706024
main95327-06024
9532708055
main95327-08055
9613251100
main96132-51100
9613251300
main96132-51300
60 parts on this diagram · 4 diagrams in section
