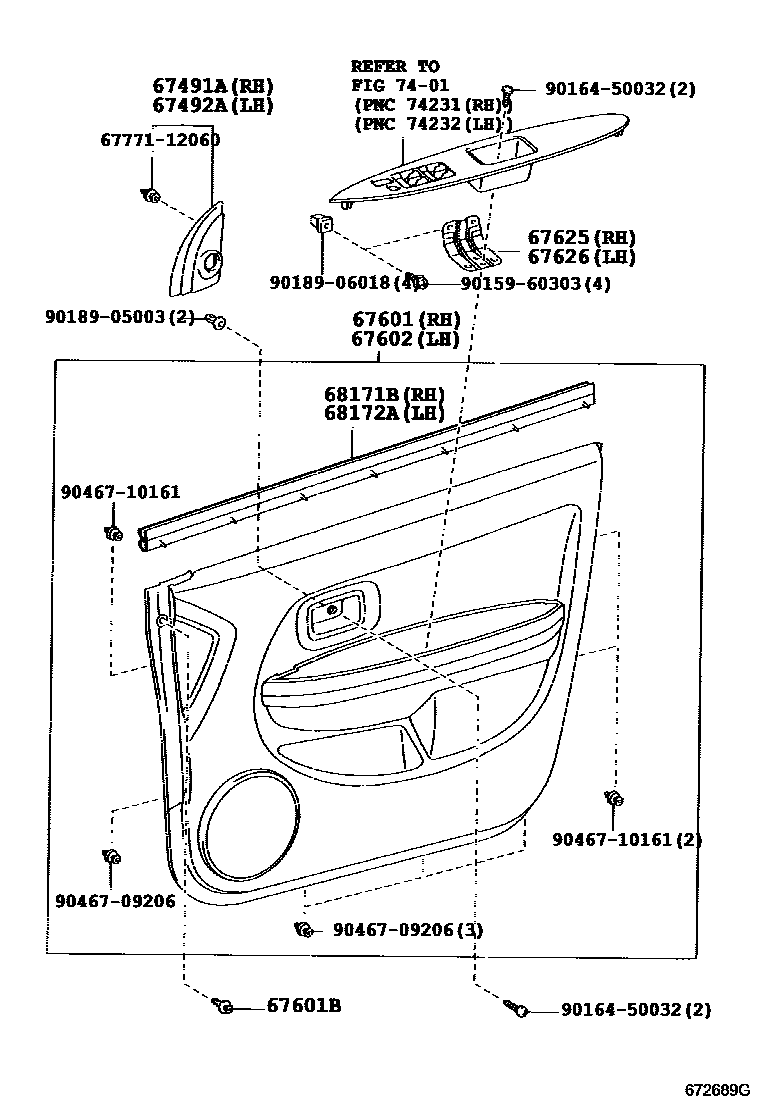

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-52080iNCP61200304-200507

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-52080iNCP61200304-200507

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-5C200-B0iNCP61200304-200312

DARK GRAY,TRIM1#

sub67610-5C201

main67610-5C201-B0iNCP61200312-200612

DARK GRAY,TRIM1#

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07190-B2iNCP61200304-200612

DK.GRAY,TRIM1#

sub90467-07190

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-5C210-B0iNCP61200304-200312

DARK GRAY,TRIM1#

sub67620-5C211

main67620-5C211-B0iNCP61200312-200612

DARK GRAY,TRIM1#

67625BRACKET, FRONT DOOR TRIM, RH

main67625-52060iNCP61200304-200507

67626BRACKET, FRONT DOOR TRIM, LH

main67625-52060iNCP61200304-200507

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-52110iNCP61200304-200612

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-52100iNCP61200304-200612

7401

6777112060WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12060

9015960303

main90159-60303

9016450032

main90164-50032

9018905003

main90189-05003

9018906018

main90189-06018

9046709206

main90467-09206

9046710161

main90467-10161

17 parts on this diagram · 2 diagrams in section
