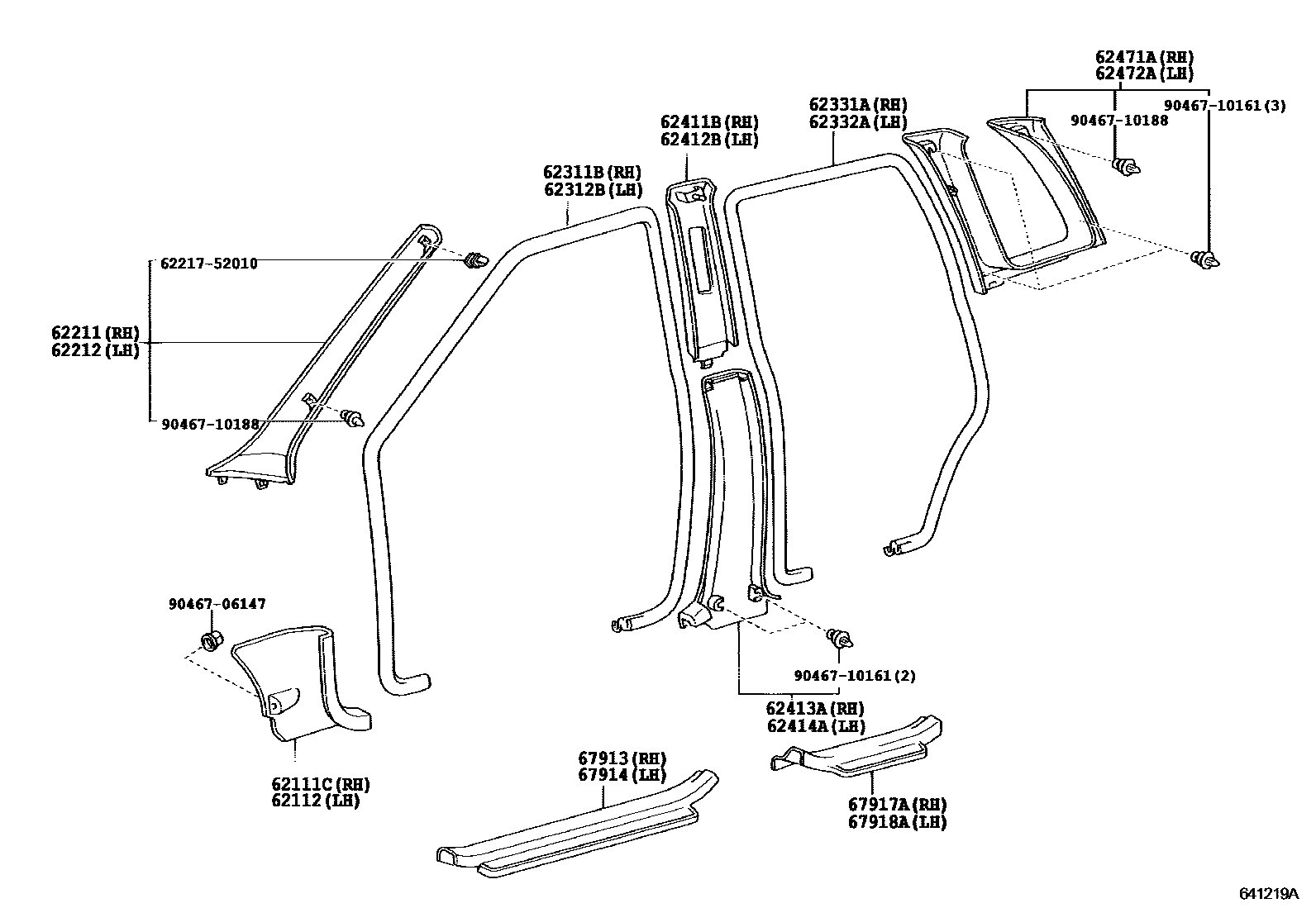

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1W(SRS CURTAIN SHIELD AIR BAG)

62111CBOARD, COWL SIDE TRIM, RH

main62111-52090-B0iNCP61200304-200612

DK.GRAY,TRIM1#

62112BOARD, COWL SIDE TRIM, LH

main62112-52120-B0iNCP61200304-200612

DK.GRAY,TRIM1#

62211GARNISH, FRONT PILLAR, RH

main62211-52050-B0iNCP61200304-200612

LT.GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-52050-B0iNCP61200304-200612

LT.GRAY,TRIM1#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-52060-B1iNCP61200304-200612

DK.GRAY,TRIM1#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-52040-B1iNCP61200304-200612

DK.GRAY,TRIM1#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-52010-B1iNCP61200304-200612

DK.GRAY,TRIM1#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-52010-B1iNCP61200304-200612

DK.GRAY,TRIM1#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-52060-B0iNCP61200304-200612

LT.GRAY,TRIM1#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-52050-B0iNCP61200304-200612

LT.GRAY,TRIM1#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62030-52040-B1iNCP61200304-200612

DK.GRAY,TRIM1#

sub62030-52040

62414AGARNISH, CENTER PILLAR, LOWER LH

main62040-52040-B1iNCP61200304-200612

DK.GRAY,TRIM1#

sub62040-52040

62471AGARNISH, ROOF SIDE, INNER RH

main62471-52090-B0iNCP61200304-200612

LT.GRAY,TRIM1#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-52090-B0iNCP61200304-200612

LT.GRAY,TRIM1#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-52070-B1iNCP61200304-200612

DK.GRAY,TRIM1#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-52080-B1iNCP61200304-200612

DK.GRAY,TRIM1#

67917APLATE, REAR DOOR SCUFF, RH

main67917-52050-B1iNCP61200304-200612

DK.GRAY,TRIM1#

67918APLATE, REAR DOOR SCUFF, LH

main67918-52060-B1iNCP61200304-200612

DK.GRAY,TRIM1#

6221752010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-52010

9046706147

main90467-06147

9046710161

main90467-10161

9046710188

main90467-10188

22 parts on this diagram · 2 diagrams in section
