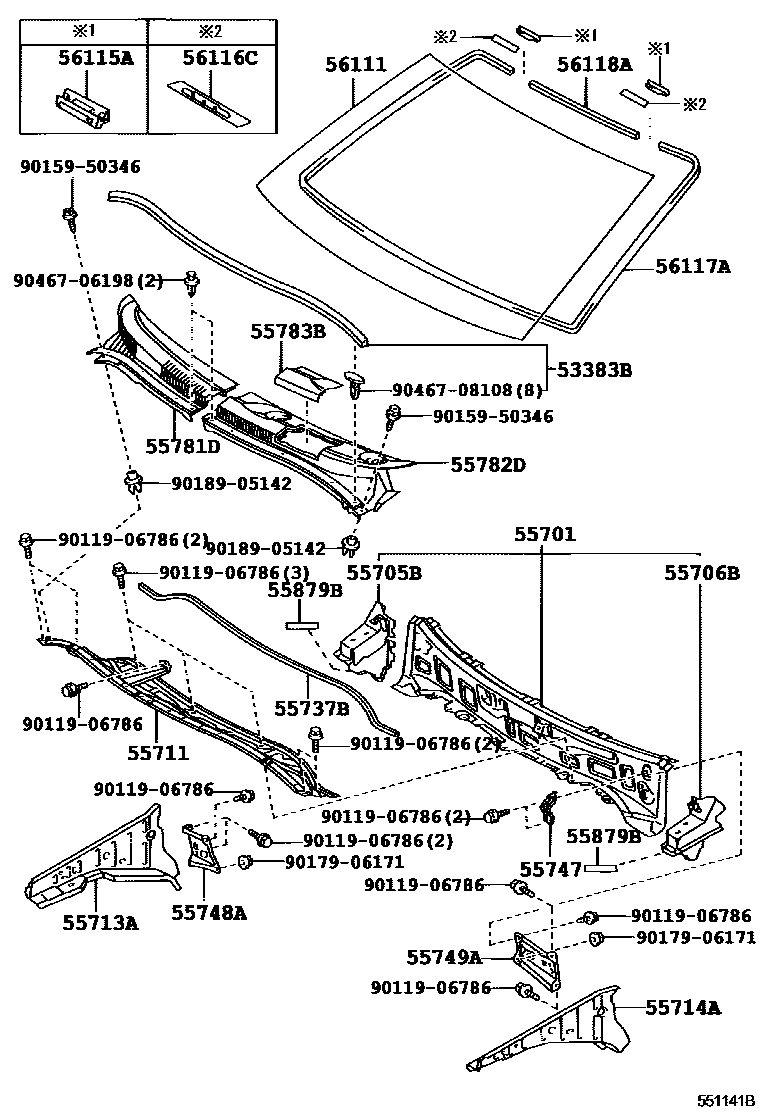

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-52060iNCP61200304-200507

55701PANEL SUB-ASSY, COWL

main55700-52100iNCP61200304-200612

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-52050iNCP61200304-200507

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-52050iNCP61200304-200507

55711PANEL, COWL TOP, OUTER

main55701-52140iNCP61200304-200507

55713APANEL, COWL TOP SIDE, RH

main55713-52060iNCP61200304-200612

55714APANEL, COWL TOP SIDE, LH

main55714-52060iNCP61200304-200612

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-52010iNCP61200304-200507

55747STAY, COWL TOP, INNER

main55747-52100iNCP61200304-200507

55748ABRACE, COWL TOP INNER TO PILLAR

main55748-52060iNCP61200304-200507

55749ABRACE, COWL TOP INNER TO PILLAR, LH

main55749-52050iNCP61200304-200507

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-52200iNCP61200304-200507

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-52200iNCP61200304-200507

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-52160iNCP61200304-200507

55879BSEAL, COWL VENT

main55879-52030iNCP61200308-200507

56111GLASS, WINDSHIELD

main56101-52190iNCP61200304-200411

*LAM,T=4.56,GREEN

sub56101-52191

main56101-52191iNCP61200412-200507

*LAM,T=4.56,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNCP61200304-200507

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNCP61200304-200507

56117ADAM, WINDOW GLASS ADHESIVE

main56117-52010iNCP61200304-200507

*D,L=3191

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56117-52040iNCP61200304-200507

*D,L=593

sub56117-74010

9011906786

main90119-06786

9015950346

main90159-50346

9017906171

main90179-06171

9018905142

main90189-05142

9046706198

main90467-06198

9046708108

main90467-08108

26 parts on this diagram · 1 diagram in section
