FLOOR SIDE MEMBER
5102
51229DDAMPER, NO.2 FRAME CROSSMEMBER DYNAMIC
51963FHOOK, TRANSPORT
51964FHOOK, TRANSPORT, LH
52141FARM, FRONT BUMPER, RH
52142GARM, FRONT BUMPER, LH
53704DSUPPORT SUB-ASSY, BATTERY, LH
5701
57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH
57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH
57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH
57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH
57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH
57145AREINFORCEMENT, FRONT SIDE MEMBER, REAR RH
57146AREINFORCEMENT, FRONT SIDE MEMBER, REAR LH
57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH
57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH
57191PLATE, FRONT SIDE MEMBER, OUTER REAR RH
57192PLATE, FRONT SIDE MEMBER, OUTER REAR LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING
57249BRACKET, FLEXIBLE HOSE, NO.1
57249ABRACKET, FREXIBLE HOUSE, NO.1, LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57451BMEMBER, FRONT FLOOR CROSS, RH
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
sub57601-52927
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
sub57602-52933
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
57661BMEMBER, REAR FLOOR CROSS, FRONT
57688AREINFORCEMENT, REAR FLOOR CROSSMEMBER
57771PLATE, REAR SPRING, RH
57772PLATE, REAR SPRING, LH
75865HPROTECTOR, ROCKER PANEL MOULDING, NO.5
75866HPROTECTOR, ROCKER PANEL MOULDING, NO.6
9046710210
main90467-10210
91651B0820
main91651-B0820

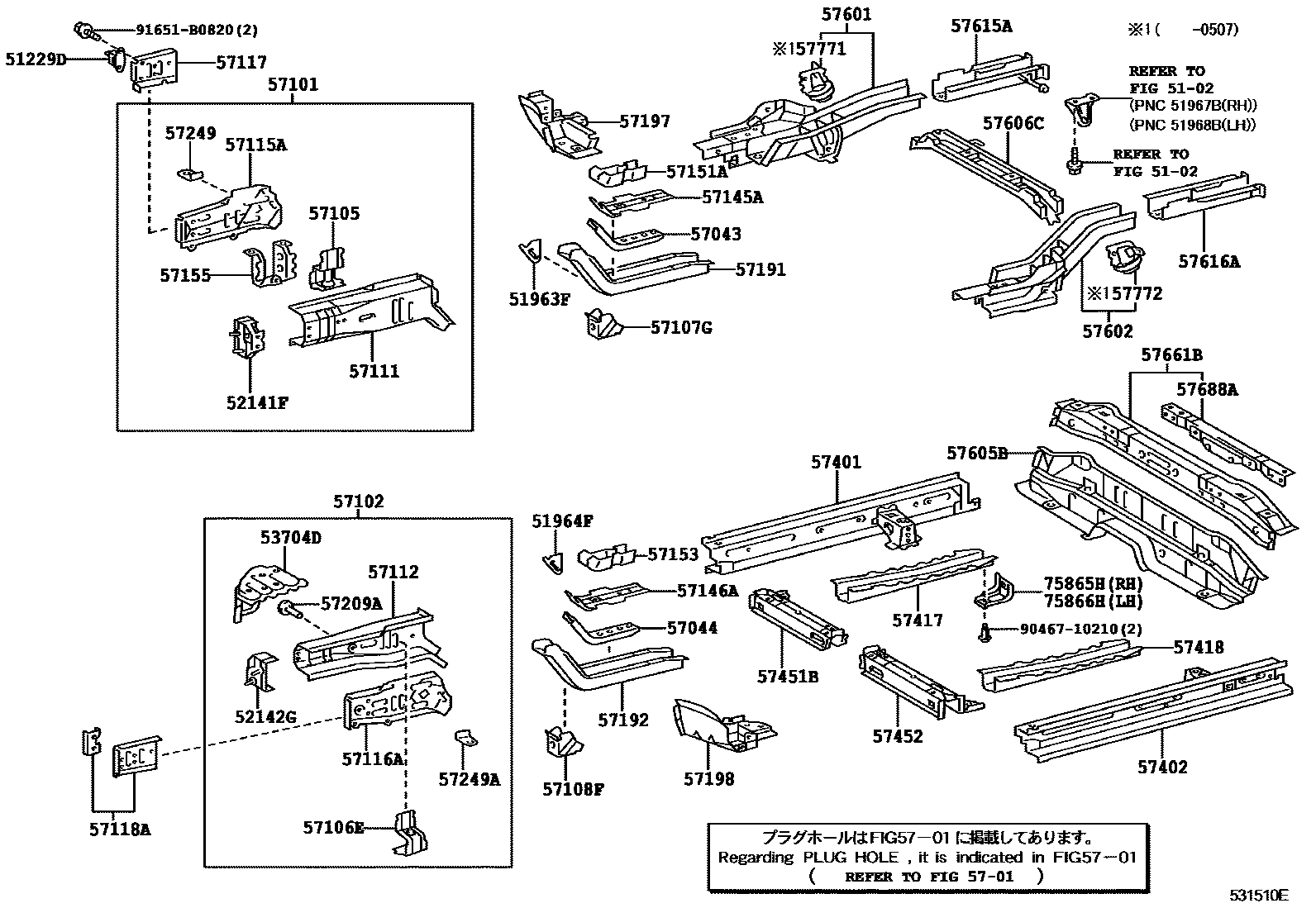

54 parts on this diagram · 1 diagram in section
