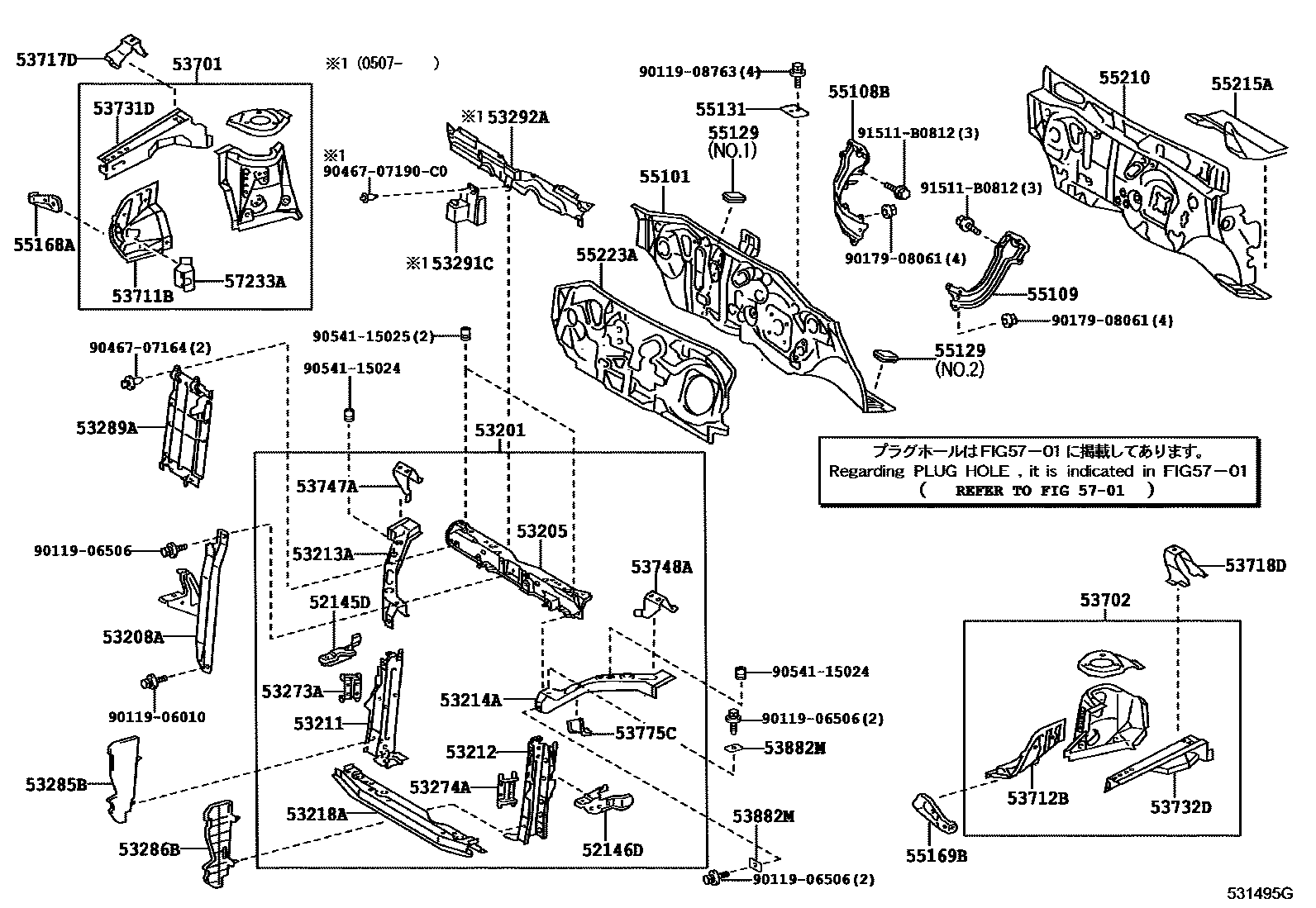

FRONT FENDER APRON & DASH PANEL
52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH
52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH
53208ASUPPORT SUB-ASSY, HOOD LOCK
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53218ASUPPORT, RADIATOR, LOWER
53273AREINFORCEMENT, RADIATOR SUPPORT, RH
53274AREINFORCEMENT, RADIATOR SUPPORT, LH
53289ACOVER, RADIATOR SUPPORT OPENING
53291CSEAL, RADIATOR SUPPORT TO FRAME
53292ASEAL, RADIATOR SUPPORT, UPPER
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53717DGUSSET, FENDER APRON, RH
53718DGUSSET, FENDER APRON, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53747AEXTENSION, APRON FENDER SIDE, RH
53748AEXTENSION, APRON FENDER SIDE, LH
53775CBRACKET, COOL AIR INTAKE DUCT MOUNTING
53882MSEAL, FRONT FENDER
55101PANEL SUB-ASSY, DASH
55108BBRACE SUB-ASSY, DASH TO FRAME, RH
55109BRACE SUB-ASSY, DASH TO FRAME, LH
55129COVER, DASH PANEL HOLE
NO.1
NO.2
55131REINFORCEMENT, DASH PANEL
55168ABRACKET, FRONT FENDER MOUNTING, RH
55169BBRACKET, FRONT FENDER MOUNTING, LH
55210INSULATOR ASSY, DASH PANEL
sub55210-52141
55215APAD, DASH PANEL INSULATOR, NO.3
55223AINSULATOR, DASH PANEL, OUTER
5701
9011906010
main90119-06010
9011906506
main90119-06506
9011908763
main90119-08763
9017908061
main90179-08061
9046707164
main90467-07164
9046707190C0
main90467-07190C0
9054115024
main90541-15024
9054115025
main90541-15025
91511B0812
main91511-B0812
50 parts on this diagram · 1 diagram in section
