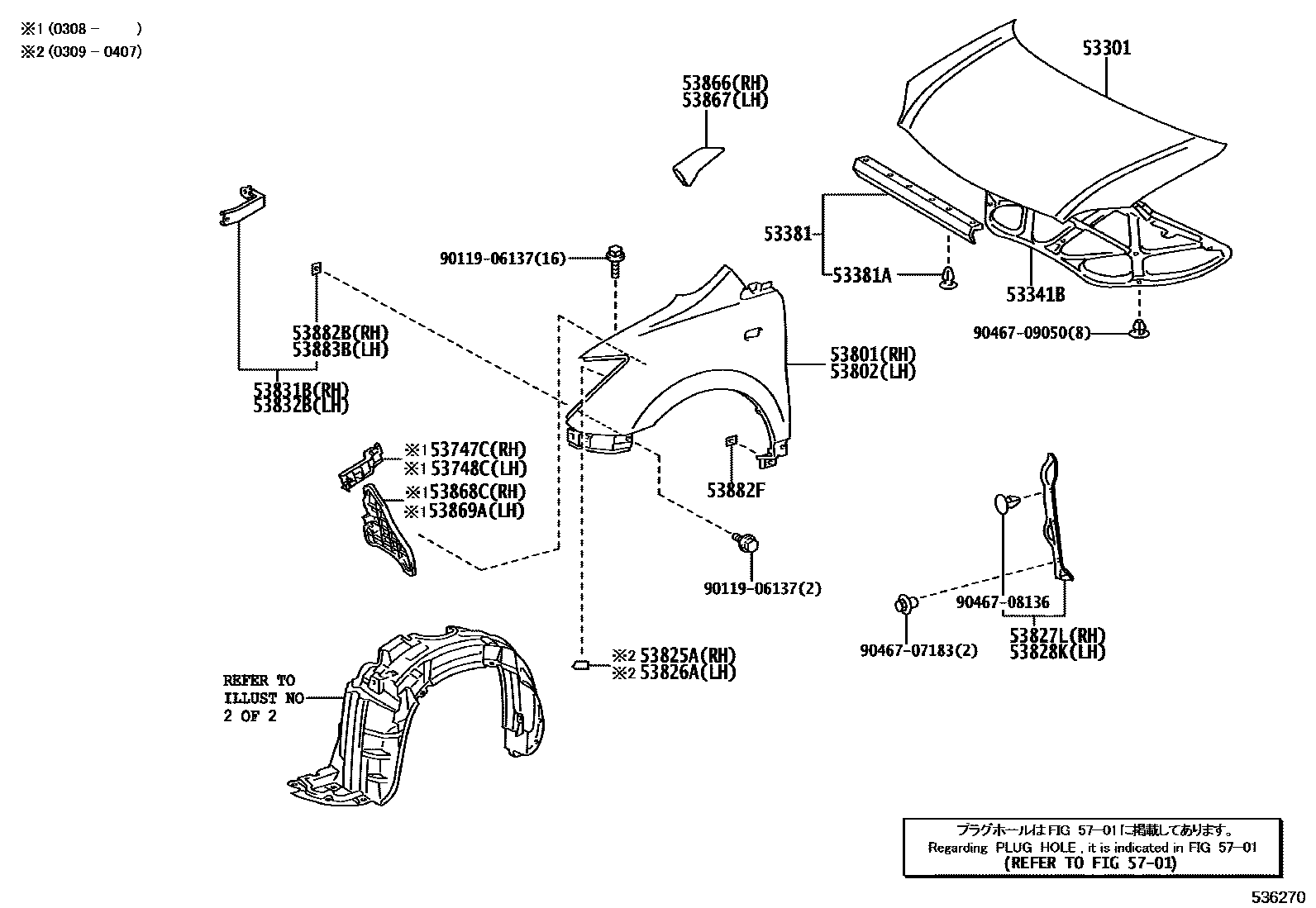

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-52200iNCP61200304-200612

53341BINSULATOR, HOOD

main53341-52080iNCP61200304-200507

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-52010iNCP61200304-200507

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iNCP61200304-200507

53747CPLATE, AIR SEALED, RH

main53747-52060iNCP61200308-200507

53748CPLATE, AIR SEALED, LH

main53748-52060iNCP61200308-200507

53801FENDER SUB-ASSY, FRONT RH

main53801-52060iNCP61200304-200612

53802FENDER SUB-ASSY, FRONT LH

main53802-52060iNCP61200304-200612

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-52020iNCP61200309-200407

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-52020iNCP61200309-200407

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-52070iNCP61200304-200507

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52070iNCP61200304-200507

53831BREINFORCEMENT, FRONT FENDER, RH

main53831-52020iNCP61200304-200507

53832BREINFORCEMENT, FRONT FENDER, LH

main53832-52020iNCP61200304-200507

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52050iNCP61200304-200507

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52050iNCP61200304-200507

53868CSEAL, FRONT FENDER TO COWL SIDE, NO.2 RH

main53868-52030iNCP61200308-200507

53869ASEAL, FRONT FENDER TO COWL SIDE, NO.2 LH

main53869-52040iNCP61200308-200507

53882BSEAL, FRONT FENDER, RH

main53882-16030iNCP61200304-200507

53882FSEAL, FRONT FENDER

main53882-16030iNCP61200304-200507

53883BSEAL, FRONT FENDER, LH

main53882-16030iNCP61200304-200507

5701

9011906137

main90119-06137

9046707183

main90467-07183

9046708136

main90467-08136

9046709050

main90467-09050

26 parts on this diagram · 2 diagrams in section
