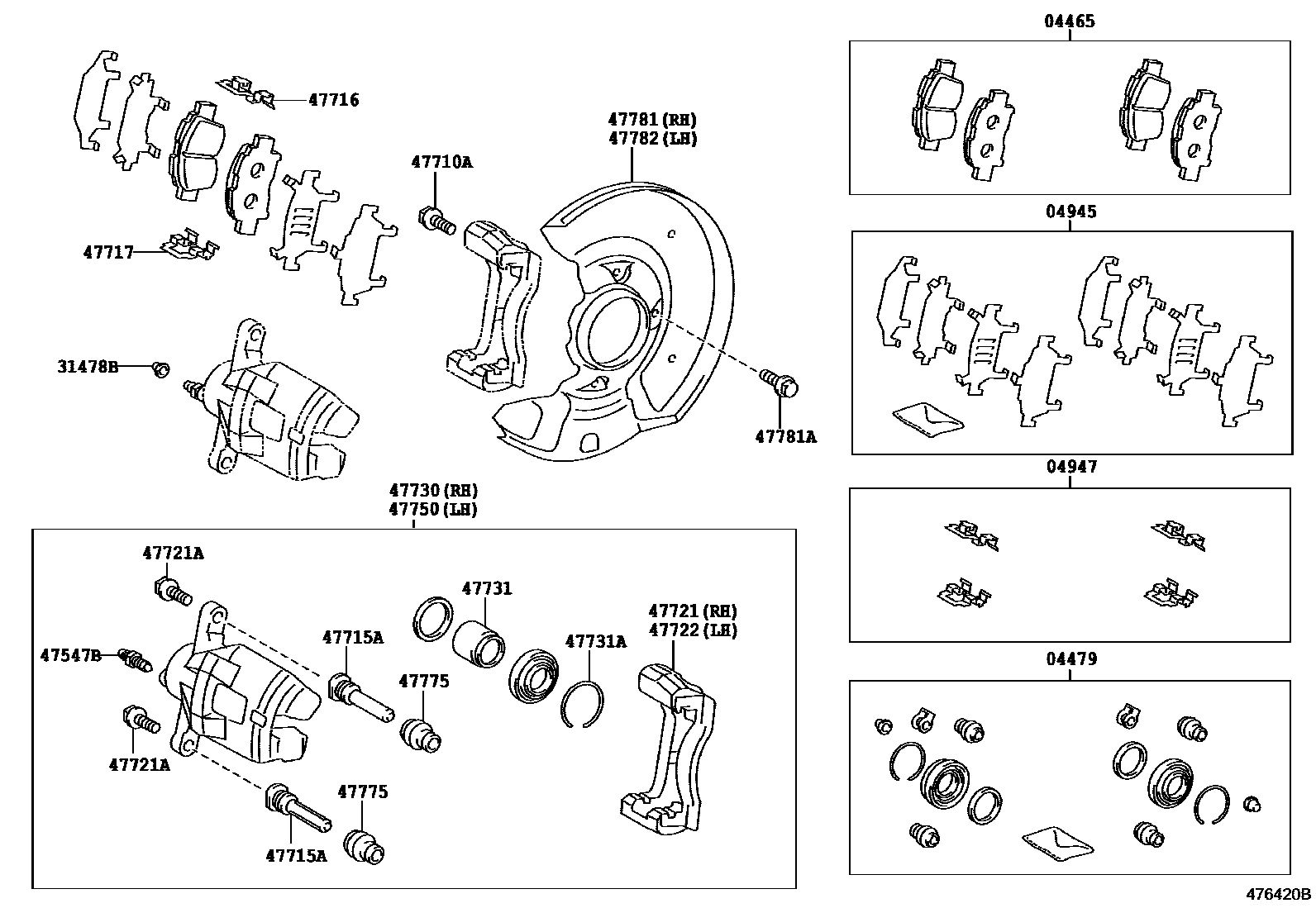

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-52170iNCP61200304-200409

MARK SUMITOMO PS558H

sub04465-52210

sub04945-52060

main04465-52210iNCP61200409-200612

MARK SUMITOMO PS558H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-47020iNCP61200304-200612

sub04478-47050

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-20210iNCP61200304-200409

main04945-52060iNCP61200409-200612

04947FITTING KIT, DISC BRAKE, FRONT

main04947-47010iNCP61200311-200612

main04947-52010iNCP61200304-200311

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iNCP61200304-200612

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iNCP61200304-200507

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12314iNCP61200304-200612

*12-1.25PX27.5-23.8

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52010iNCP61200304-200507

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-12070iNCP61200304-200507

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-12030iNCP61200304-200507

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-52170iNCP61200304-200507

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iNCP61200304-200507

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-52170iNCP61200304-200507

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-52170iNCP61200304-200507

47731PISTON, FRONT DISC BRAKE

main47731-12170iNCP61200304-200507

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-66001iNCP61200304-200507

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-52170iNCP61200304-200507

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-52010iNCP61200304-200507

sub47775-02130

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-52020iNCP61200304-200612

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iNCP61200304-200612

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-52020iNCP61200304-200612

21 parts on this diagram · 1 diagram in section
