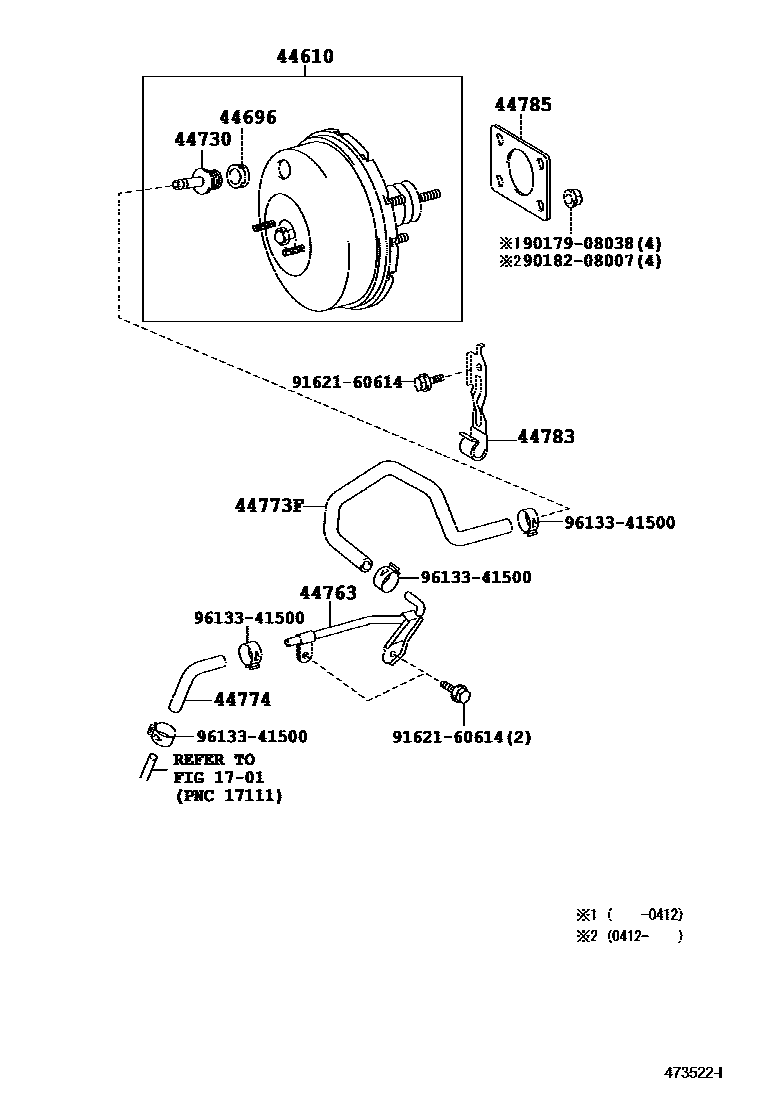

BRAKE BOOSTER & VACUUM TUBE

1701

44610BOOSTER ASSY, BRAKE

main44610-52330iNCP61200304-200309

sub44610-52331

main44610-52331iNCP61200309-200612

44696GROMMET, CHECK VALVE

main90480-24015iNCP61200304-200507

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28030iNCP61200305-200507

main44730-30010iNCP61200304-200305

44763TUBE, BOOSTER VACUUM

main44763-52010iNCP61200304-200507

44773FHOSE, UNION TO CHECK VALVE

main44773-52040iNCP61200304-200507

44774HOSE, UNION TO CONNECTOR TUBE

main95446-09130iNCP61200304-200507

44783CLAMP, VACUUM HOSE

main44783-52020iNCP61200304-200507

44785GASKET, BRAKE BOOSTER

main44785-16020iNCP61200304-200507

9017908038

main90179-08038

9018208007

main90182-08007

9162160614

main91621-60614

9613341500

main96133-41500

13 parts on this diagram · 1 diagram in section
