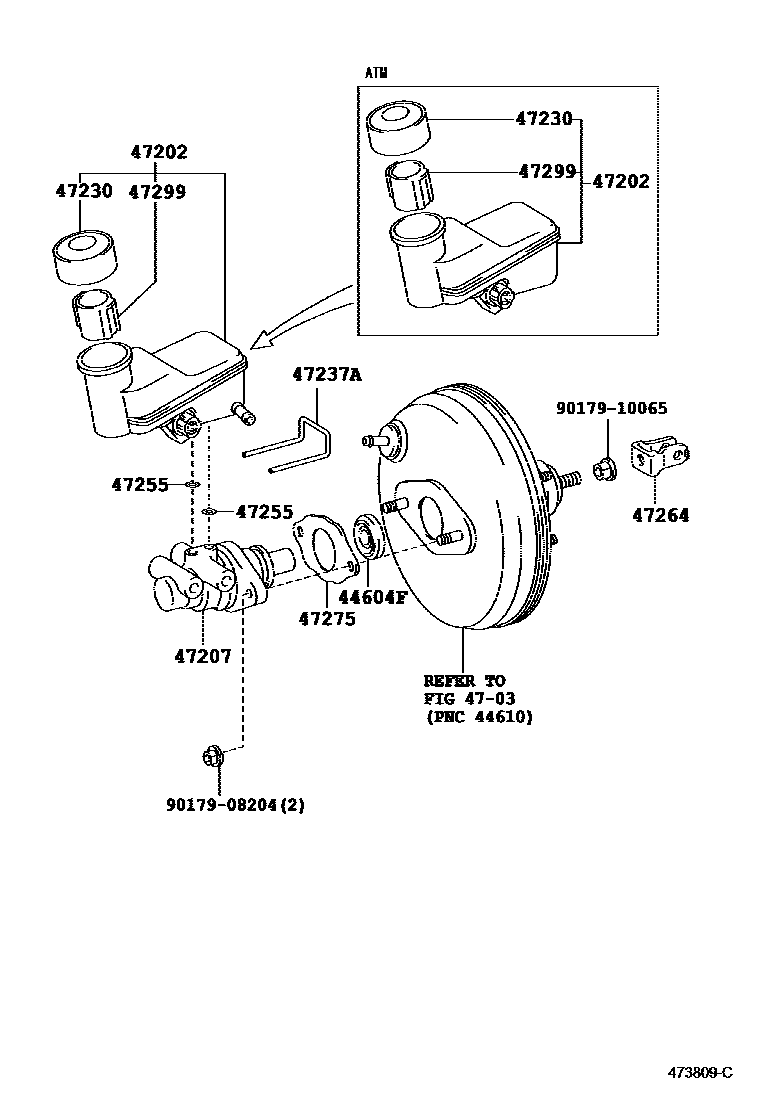

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1W(MOON ROOF)

44604FSEAL, BRAKE BOOSTER BODY

main44604-52070iNCP61200304-200309

4703

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-52030iNCP61..5F200304-200507

main47220-52040iNCP61..4FC200304-200507

47207CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK

main47207-52011iNCP61200304-200309

main47207-52012iNCP61200309-200507

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-52030iNCP61200304-200507

sub47230-33071

47237ASTOPPER, BREKE MASTER CYLINDER RESERVOIR TANK

main47237-52010iNCP61200304-200507

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-52010iNCP61200304-200507

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-52010iNCP61200304-200507

47275GASKET, BRAKE MASTER CYLINDER

main47275-52010iNCP61200304-200309

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-52010iNCP61200304-200507

9017908204

main90179-08204

9017910065

main90179-10065

12 parts on this diagram · 3 diagrams in section
