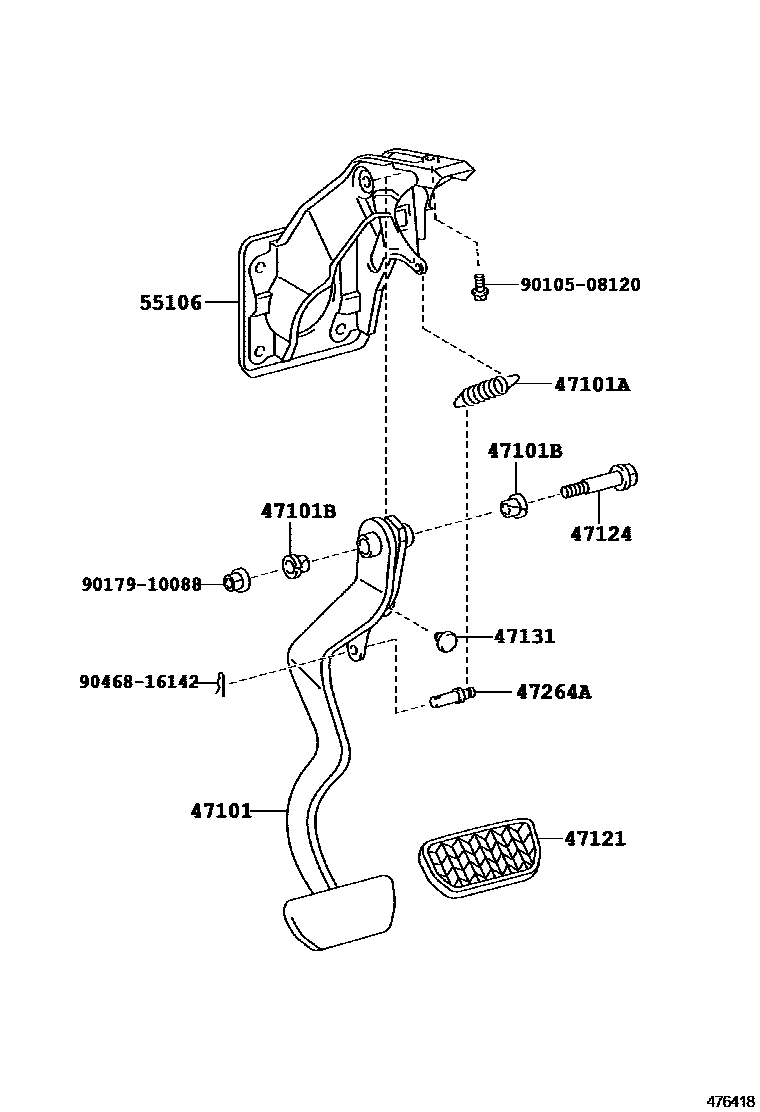

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-52130iNCP61..5F200304-200507

main47101-52140iNCP61..4FC200304-200507

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iNCP61200304-200507

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNCP61200304-200507

47121PAD, BRAKE PEDAL

main31321-52010iNCP61..5F200304-200507

main47121-52010iNCP61..4FC200304-200507

47124SHAFT, BRAKE PEDAL

main90109-10174iNCP61200304-200507

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iNCP61200304-200507

47264APIN(FOR PUSH ROD)

main90249-08295iNCP61200304-200507

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-52120iNCP61200304-200412

sub55106-52121

main55106-52121iNCP61200412-200612

9010508120

main90105-08120

9017910088

main90179-10088

9046816142

main90468-16142

11 parts on this diagram · 1 diagram in section
