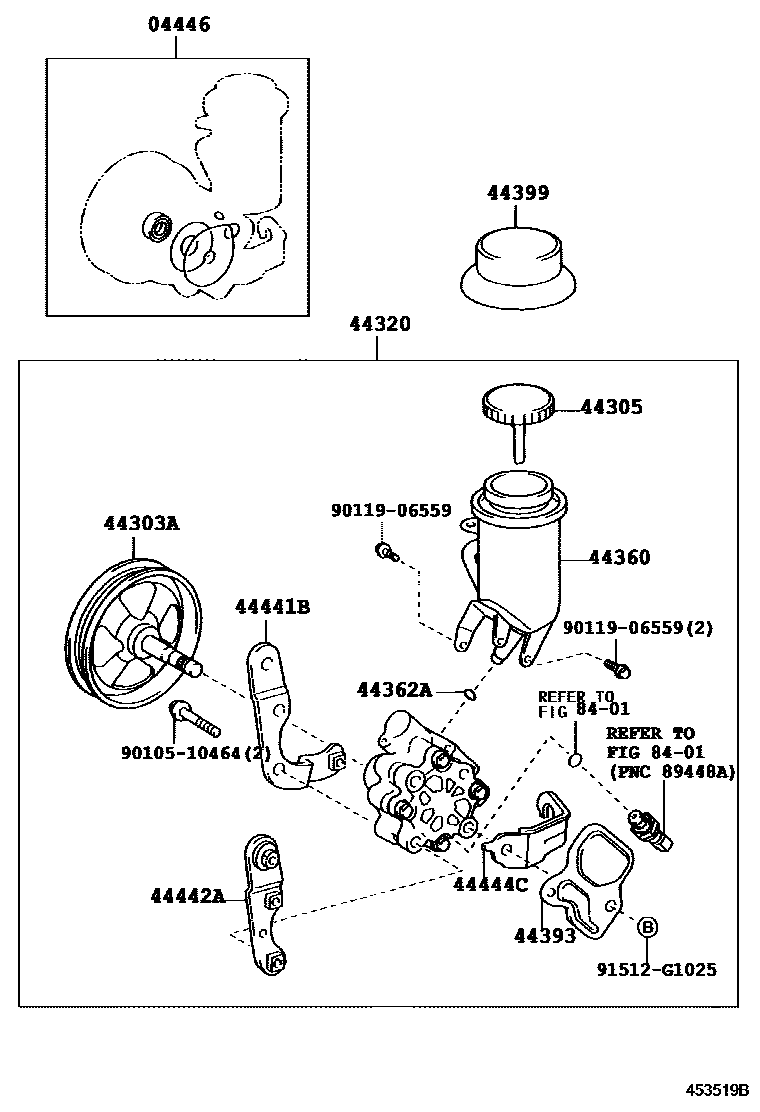

VANE PUMP & RESERVOIR (POWER STEERING)
04446GASKET KIT, POWER STEERING PUMP
44303ASHAFT SUB-ASSY, W/PULLEY
44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
sub44305-50020
44320PUMP ASSY, VANE
44360RESERVOIR ASSY, VANE PUMP OIL
44362ARING, O(FOR VANE PUMP OIL RESERVOIR)
44393INSULATOR, POWER STEERING PUMP HEAT
44399COVER, VANE PUMP OIL RESERVOIR
44441BBRACKET, PUMP, FRONT
44442ABRACKET, VANE PUMP, REAR
44444CSTAY, VANE PUMP, REAR
8401
9010510464
main90105-10464
9011906559
main90119-06559
91512G1025
main91512-G1025
15 parts on this diagram · 1 diagram in section
