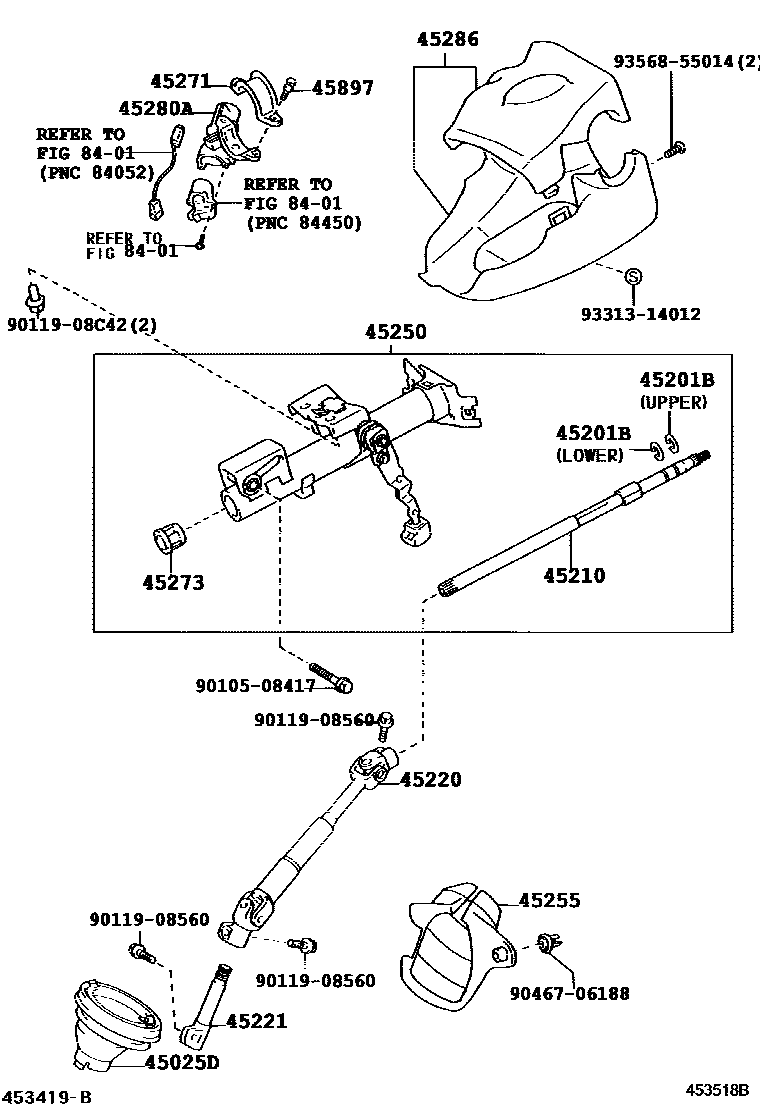

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-52030iNCP61200304-200507

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iNCP61200304-200507

T=1.20,LOWER

main90520-17269iNCP61200304-200507

T=1.20,UPPER

45210SHAFT ASSY, STEERING MAIN

main45210-27110iNCP61200304-200507

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-52020iNCP61200304-200507

45221SHAFT, STEERING INTERMEDIATE

main45297-52010iNCP61200304-200507

45250COLUMN ASSY, STEERING

main45250-52080iNCP61200304-200507

45255PLATE, STEERING COLUMN HOLE COVER

main45255-52060iNCP61200304-200507

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iNCP61200304-200507

45273BUSH, STEERING MAIN SHAFT

main45273-33030iNCP61200304-200507

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-52070iNCP61..5F200304-200507

sub45280-52080

main45280-52080iNCP61..4FC200304-200507

45286COVER, STEERING COLUMN

main45286-13905-B1iNCP61200304-200507

DK.GRAY,TRIM1#

45897BOLT, STEERING LOCK SET

main45897-12020iNCP61..4FC200304-200507

8401

9010508417

main90105-08417

9011908560

main90119-08560

9011908C42

main90119-08C42

9046706188

main90467-06188

9331314012

main93313-14012

9356855014

main93568-55014

19 parts on this diagram · 1 diagram in section
