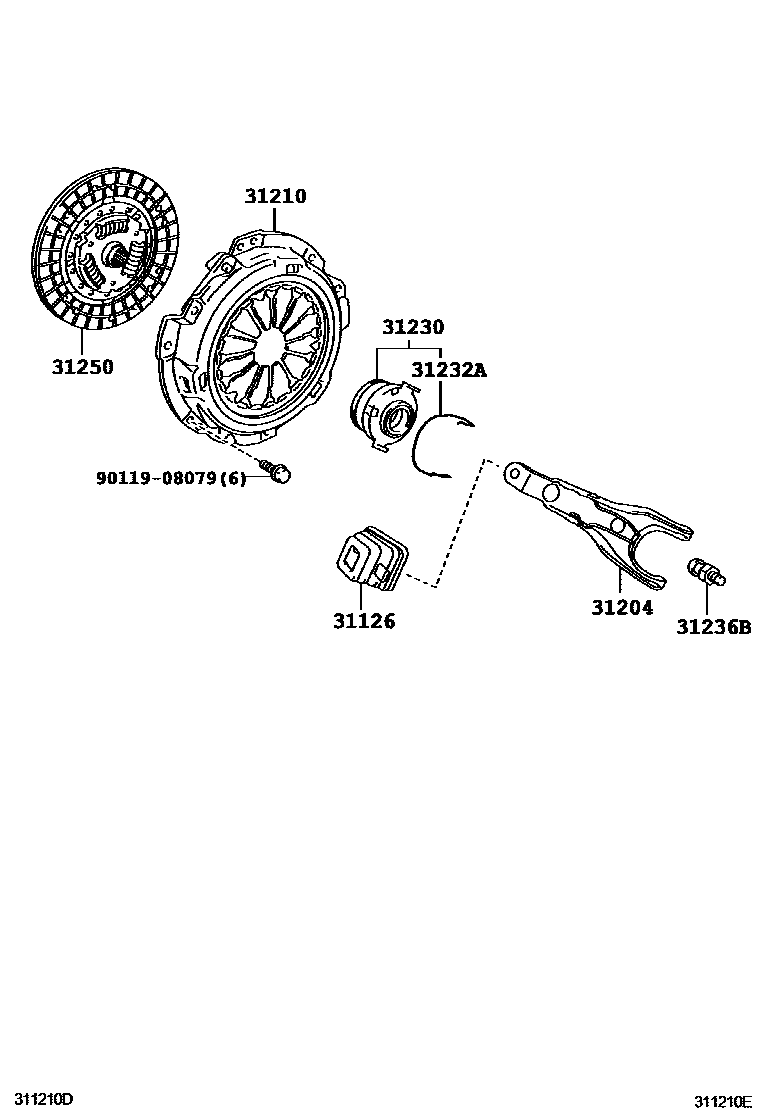

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iNCP61..5F200304-200507

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-52010iNCP61..5F200304-200507

31210COVER ASSY, CLUTCH

main31210-12191iNCP61..5F200304-200406

sub31210-12192

main31210-12192iNCP61..5F200407-200608

sub31210-52070

main31210-27040iNCP61..5F200411-200503

sub31210-52050

main31210-52070iNCP61..5F200609-200611

sub31210-52071

main31210-52071iNCP61..5F200612

sub31210-52180

31230BEARING ASSY, CLUTCH RELEASE

main31230-12180iNCP61..5F200304-200507

sub31230-12181

31232ACLIP, RELEASE BEARING HUB

main31232-12080iNCP61..5F200304-200507

31236BSUPPORT, RELEASE FORK

main31236-12020iNCP61..5F200304-200507

31250DISC ASSY, CLUTCH

main31250-12360iNCP61..5F200304-200511

sub31250-12361

main31250-12361iNCP61..5F200512

main31250-52090iNCP61..5F200411-200507

9011908079

main90119-08079

8 parts on this diagram · 1 diagram in section
