STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21060i1NZFE..NCP61200304-200507

28100STARTER ASSY

main28100-21062i1NZFE..NCP61200304-200507

12V 1.6KW

sub28100-21063

28110HOUSING ASSY, STARTER DRIVE

main28110-21061i1NZFE..NCP61200304-200507

28114PIN, STARTER DRIVE LEVER SET

main28114-21060i1NZFE..NCP61200304-200507

28120YOKE ASSY, STARTER

main28120-28040i1NZFE..NCP61200304-200507

sub28120-28060

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-21061i1NZFE..NCP61200304-200507

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i1NZFE..NCP61200304-200507

28160ARMATURE ASSY, STARTER

main28160-21060i1NZFE..NCP61200304-200507

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i1NZFE..NCP61200304-200507

28226BSTARTER KIT, REPAIR SERVICE

main28226-22061i1NZFE..NCP61200304-200507

28255GEAR, PLANET

main28255-28040i1NZFE..NCP61200304-200507

9009690016

main90096-90016

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9017908204

main90179-08204

9161261065

main91612-61065

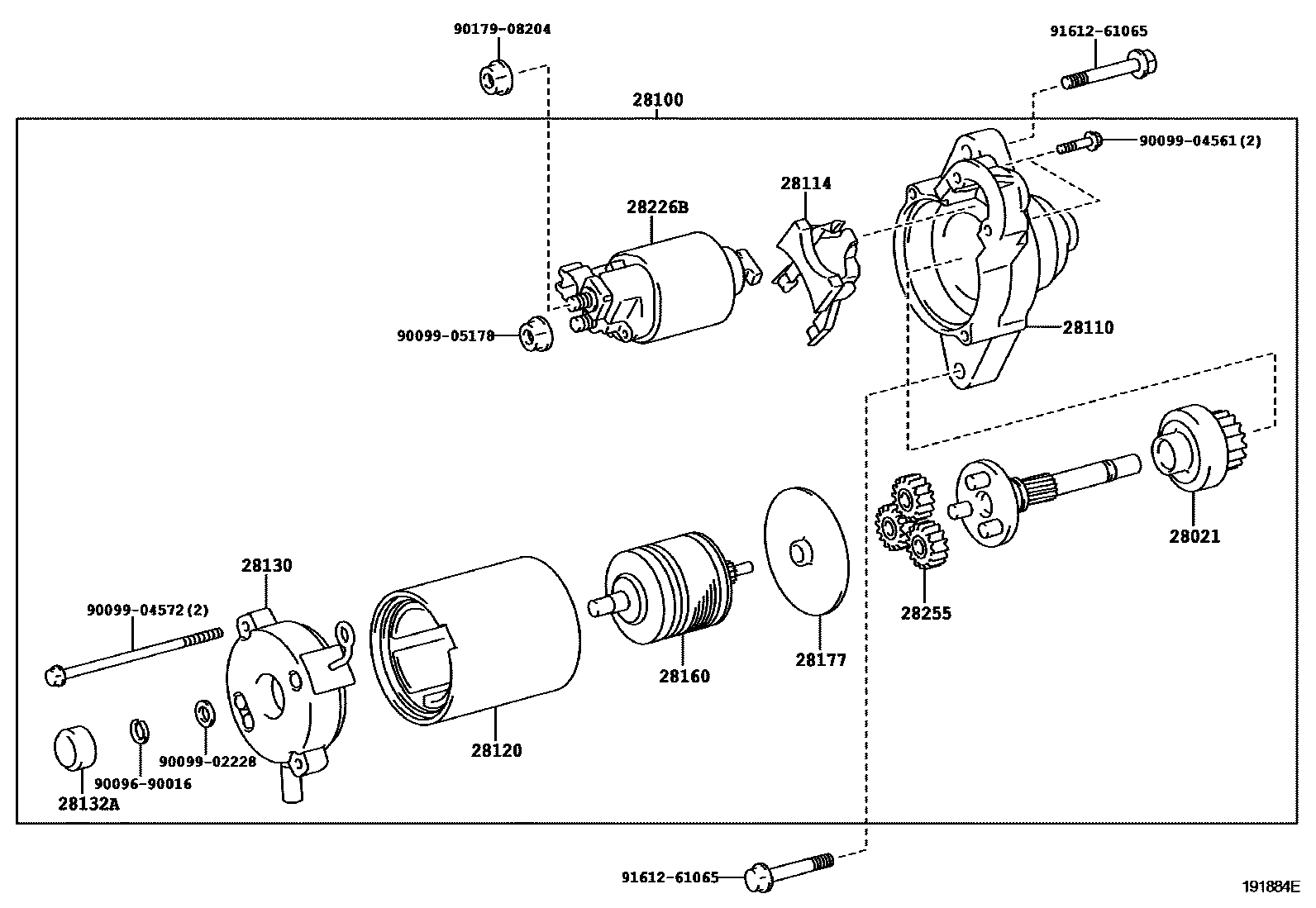

18 parts on this diagram · 1 diagram in section
