STANDARD TOOL

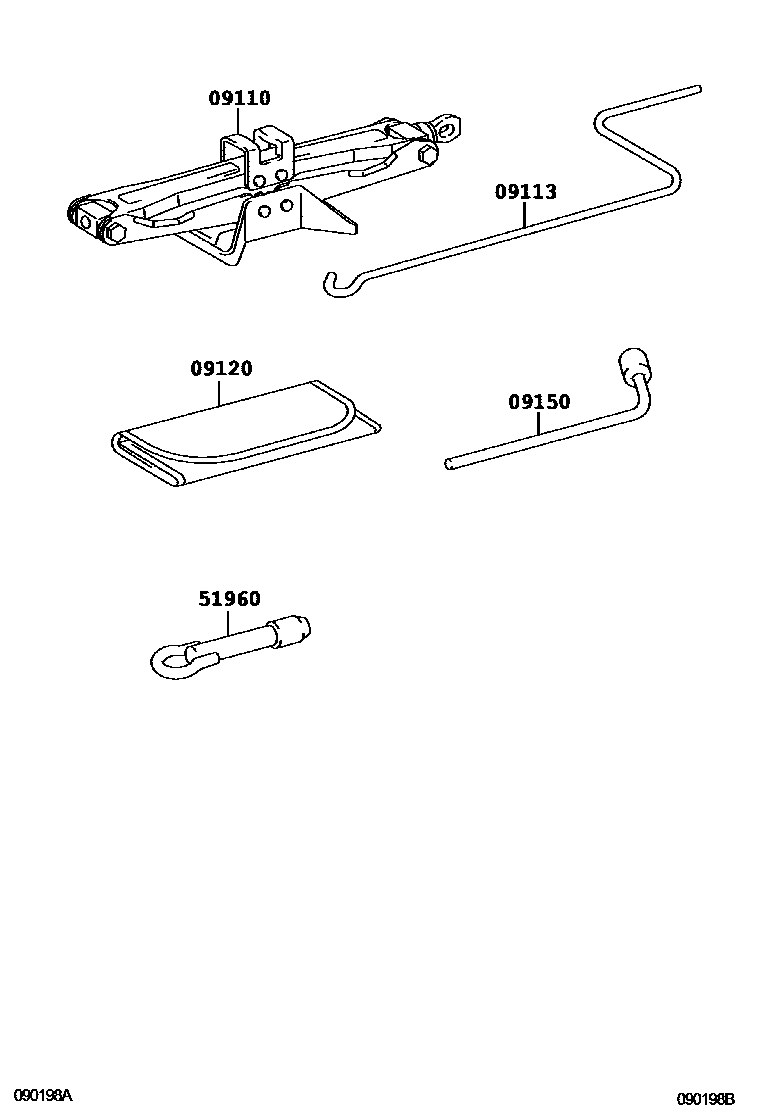

Parts diagram

09110JACK ASSY

main09111-47010i200403-200507

main09111-52040i200304-200307

main09111-52041i200307-200403

09113HANDLE, JACK

main09113-52010i200304-200307

main09113-52040i200507

09120BAG, TOOL

main09120-52040i200304-200507

09150WRENCH, HUB NUT BOX

main09150-40010i200304-200507

51960HOOK ASSY, FRONT

main51960-52080i200304-200507

5 parts on this diagram · 1 diagram in section
