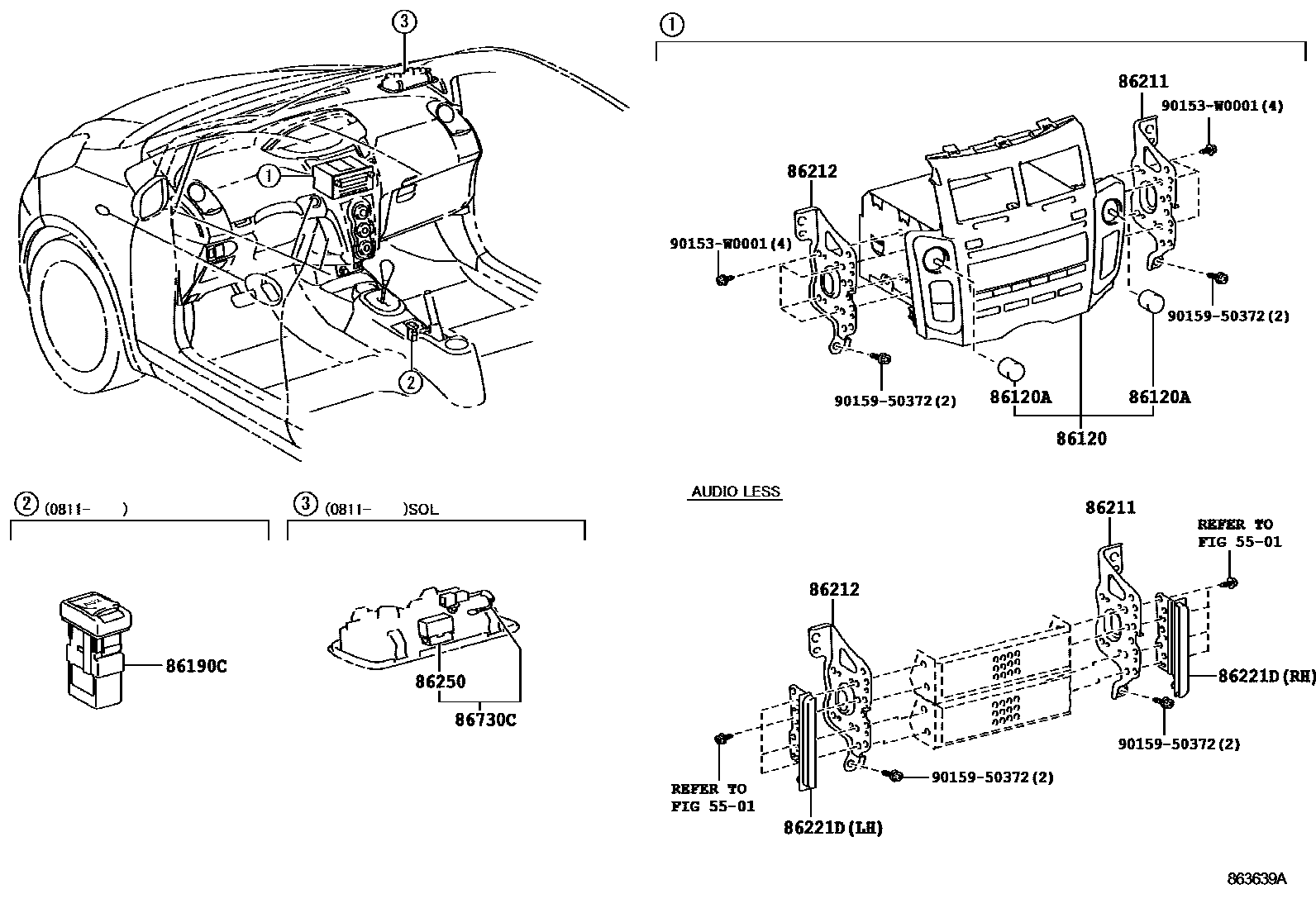

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

5501

86120RECEIVER ASSY, RADIO

main86120-0D200iKSP90,NLP90,SCP90..FRP..TRSTD200511-200806

FUJITSU TEN,ID=13801

sub86120-0D201

main86120-0D201iKSP90,NLP90,SCP90..FRP..TRSTD200806-200811

FUJITSU TEN,ID=13802

main86120-0D210iKSP90,NLP90,SCP90..FRP..SOL200511-200806

MATSUSHITA,ID=W58824

sub86120-0D211

main86120-0D210iKSP90,NLP90,SCP90..FRP..SOL200511-200806

MATSUSHITA,ID=W58824,AUDIO-LMU CD DSP 6SP EXT 2DIN

sub86120-0D211

main86120-0D210iKSP90..FRP..TRSTD200705-200806

MATSUSHITA,ID=W58824,AUDIO-LMU CD DSP 4SP EXT 2DIN

sub86120-0D211

main86120-0D211iKSP90,NLP90,SCP90..FRP..TRSTD200806-200811

MATSUSHITA,ID=W58824

main86120-0D211iKSP90,NLP90,SCP90..FRP..TRSTD200806-200811

MATSUSHITA,ID=W58824,AUDIO-LMU CD DSP 6SP EXT 2DIN

main86120-0D211iKSP90,NLP90,SCP90..FRP..TRSTD200806-200811

MATSUSHITA,ID=W58824,AUDIO-LMU CD DSP 4SP EXT 2DIN

main86120-0D490iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

FUJITSUTEN,ID=W13811,ECO MODEL PACKAGE&AUDIO-AM/FM CD 6SPEAKER

main86120-0D490iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

FUJITSUTEN,ID=W13811,AUDIO-ENTRY-AVN 6SPEAKER W(BLUETOOTH)

main86120-0D490iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

FUJITSUTEN,ID=W13811,AUDIO-AM/FM CD 6SPEAKER

main86120-0D490iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

FUJITSUTEN,ID=W13811,AUDIO-E-AVN 4SP W/B.T

main86120-0D490iKSP90..FRP..SOL200811-201107

FUJITSUTEN,ID=W13811

main86120-0D490iKSP90..FRP..SOL200811-201107

FUJITSUTEN,ID=W13811,LUNA PACKAGE&AUDIO-AM/FM CD 6SPEAKER

main86120-0D500iKSP90,NLP90,NSP90..FRP..SOL200811-201107

FUJITSUTEN,ID=W13813,WEST PACKAGE&AUDIO-ENTRY-AVN 6SPEAKER W(BLUETOOTH)

main86120-0D500iKSP90,NLP90,NSP90..FRP..SOL200811-201107

FUJITSUTEN,ID=W13813

main86120-0D500iKSP90,NLP90,NSP90..FRP..SOL200811-201107

FUJITSUTEN,ID=W13813,S PACKAGE&AUDIO-ENTRY-AVN 6SPEAKER W(BLUETOOTH)

main86120-0D500iKSP90,NLP90,NSP90..FRP..SOL200811-201107

FUJITSUTEN,ID=W13813,AUDIO-ENTRY-AVN 6SPEAKER W(BLUETOOTH)

main86120-0D510iKSP90,NLP90,NSP90..FRP..(5F,6F,6FS)..SOL200911-201107

FUJITSUTEN,ID=W13814,WEST PACKAGE

main86120-0D510iNLP90,NSP90..FRP..SOL200811-200911

FUJITSUTEN,ID=W13814,S PACKAGE

main86120-0D520iKSP90..FRP..5FS200911-201107

FUJITSUTEN,ID=W13812,WEST PACKAGE&AUDIO-AM/FM CD 6SPEAKER

main86120-0D520iKSP90,NLP90,NSP90..FRP..LHD..TRSTD200912-201107

FUJITSUTEN,ID=W13812,EAST PACKAGE

main86120-0D520iNLP90,NSP90..FRP..SOL200811-200911

FUJITSUTEN,ID=W13812,S PACKAGE&AUDIO-AM/FM CD 6SPEAKER

86120AKNOB, RADIO RECEIVER SWITCH

main90011-25139iKSP90,NLP90,NSP90..FRP..SOL200811-201107

AUDIO-ENTRY-AVN 6SPEAKER W(BLUETOOTH)

main90011-25139iKSP90,NLP90,NSP90..FRP..SOL200811-201107

WEST PACKAGE&AUDIO-ENTRY-AVN 6SPEAKER W(BLUETOOTH)

main90011-25139iKSP90,NLP90,NSP90..FRP200811-201107

S PACKAGE&AUDIO-ENTRY-AVN 6SPEAKER W(BLUETOOTH)

main90011-25139iKSP90,NLP90,NSP90..FRP200811-201107

AUDIO-E-AVN 4SP W/B.T

main90011-25139iKSP90,NLP90,SCP90..FRP..TRSTD200511-200811

main90011-25140iKSP90,NLP90,SCP90..FRP..SOL200511-200811

AUDIO-LMU CD DSP 6SP EXT 2DIN

main90011-25140iKSP90..FRP..TRSTD200705-200811

AUDIO-LMU CD DSP 4SP EXT 2DIN

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-0D010iKSP90,NLP90,NSP90..FRP..TRSTD200811-201107

AUDIO-RADIOLESS 4SPEAKER

main86190-0D010iKSP90,NLP90,NSP90..FRP..SOL200811-201107

AUDIO-RADIOLESS 6SPEAKER

86211BRACKET, RADIO, NO.1

main86211-52190iKSP90,NLP90,SCP90..FRP200511-201107

86212BRACKET, RADIO, NO.2

main86212-52200iKSP90,NLP90,SCP90..FRP200511-201107

86221DPANEL, RADIO RECEIVER

main86221-52050iKSP90..FRP..5F..SOL;NLP90..FRP..3D..6FS;NSP90..FRP..RHD..SOL;NLP90..FRP..5D..6F..SOL;NLP90..FRP..LHD..3D..6F..SOL;NLP90,NSP90..FRP..LHD..5D..6FS200911-201107

WEST PACKAGE&AUDIO-RADIOLESS 6SPEAKER,LH

main86221-52050iKSP90,NLP90,NSP90..FRP..TRSTD200705-201107

AUDIO-RADIOLESS 6SPEAKER,LH

main86221-52050iKSP90,NLP90,NSP90..FRP..TRSTD200511-201107

AUDIO-RADIOLESS 4SPEAKER,LH

main86221-52050iNLP90,NSP90..FRP..SOL200811-200911

S PACKAGE&AUDIO-RADIOLESS 6SPEAKER,LH

main86221-52060iKSP90..FRP..5F..SOL;NLP90..FRP..3D..6FS;NSP90..FRP..RHD..SOL;NLP90..FRP..5D..6F..SOL;NLP90..FRP..LHD..3D..6F..SOL;NLP90,NSP90..FRP..LHD..5D..6FS200911-201107

WEST PACKAGE&AUDIO-RADIOLESS 6SPEAKER,RH

main86221-52060iNLP90,SCP90..FRP200511-201107

AUDIO-RADIOLESS 4SPEAKER,RH

main86221-52060iNLP90,SCP90..FRP200705-201107

AUDIO-RADIOLESS 6SPEAKER,RH

main86221-52060iNLP90,NSP90..FRP..SOL200811-200911

S PACKAGE&AUDIO-RADIOLESS 6SPEAKER,RH

86250MICROPHONE ASSY, AMPLIFIER

main86250-52020iKSP90,NLP90,NSP90..FRP..LHD..SOL200811-201107

AUDIO-RADIOLESS 4SPEAKER

main86250-52020iKSP90,NLP90,NSP90..FRP..LHD..SOL200811-201107

AUDIO-AM/FM CD 6SPEAKER

main86250-52020iKSP90,NLP90,NSP90..FRP..LHD..SOL200811-201107

AUDIO-RADIOLESS 6SPEAKER

main86250-52030iKSP90,NLP90,NSP90..FRP..RHD..SOL200811-201107

AUDIO-RADIOLESS 4SPEAKER

main86250-52030iKSP90,NLP90,NSP90..FRP..RHD..SOL200811-201107

AUDIO-AM/FM CD 6SPEAKER

main86250-52030iKSP90,NLP90,NSP90..FRP..RHD..SOL200811-201107

AUDIO-RADIOLESS 6SPEAKER

86730CMICROPHONE ASSY, TELEPHONE

main86730-52010iKSP90,NLP90,NSP90..FRP..LHD..SOL200811-201107

AUDIO-RADIOLESS 4SPEAKER

main86730-52010iKSP90,NLP90,NSP90..FRP..LHD..SOL200811-201107

AUDIO-AM/FM CD 6SPEAKER

main86730-52010iKSP90,NLP90,NSP90..FRP..LHD..SOL200811-201107

AUDIO-RADIOLESS 6SPEAKER

main86730-52020iKSP90..FRP..RHD..SOL200811-201107

AUDIO-AM/FM CD 6SPEAKER

main86730-52020iKSP90,NLP90,NSP90..FRP..RHD..SOL200811-201107

AUDIO-RADIOLESS 6SPEAKER

main86730-52020iKSP90,NLP90,NSP90..FRP..RHD..SOL200811-201107

AUDIO-RADIOLESS 4SPEAKER

90153W0001

main90153-W0001

9015950372

main90159-50372

11 parts on this diagram · 3 diagrams in section
