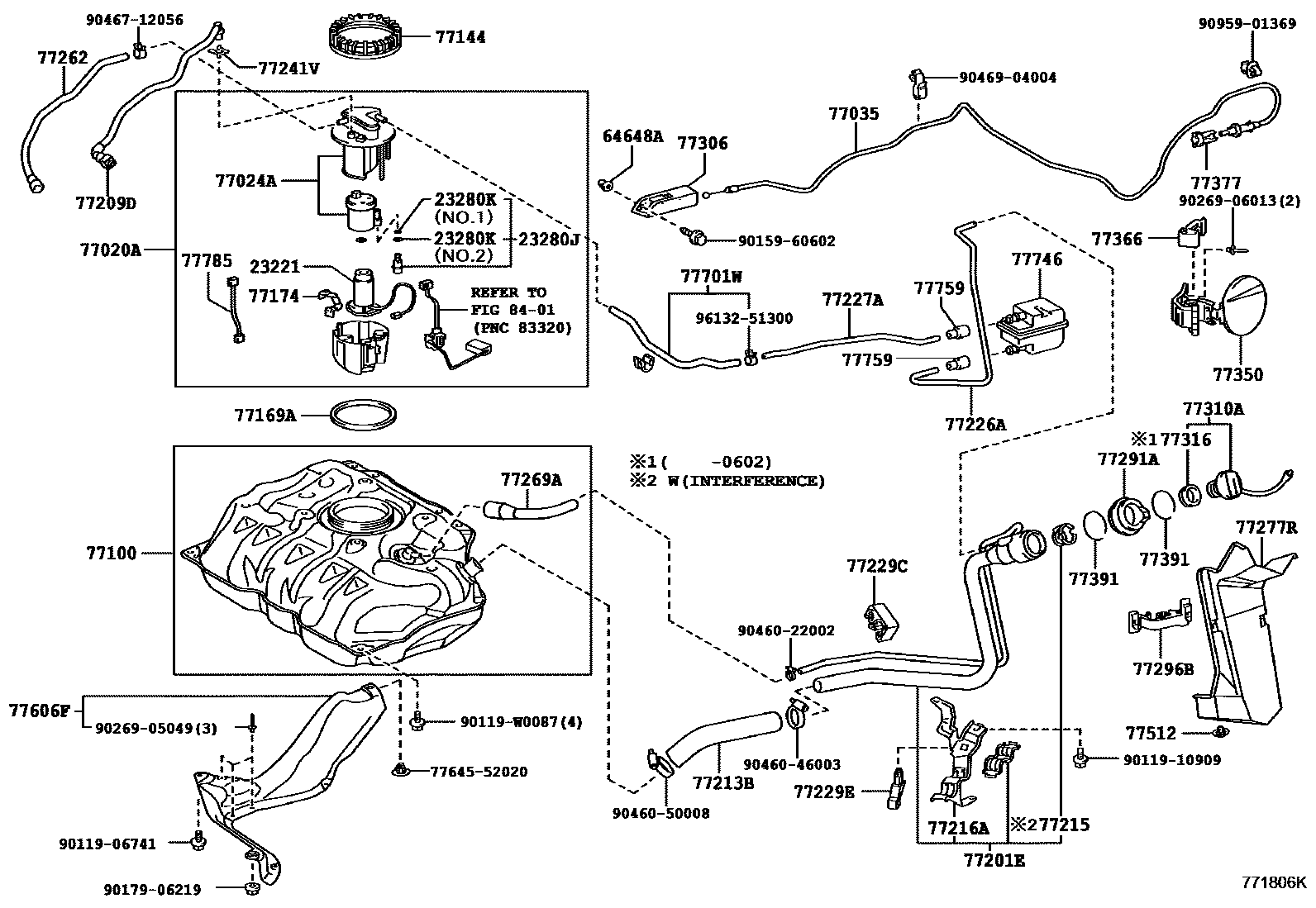

FUEL TANK & TUBE
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
64648AGROMMET, LUGGAGE DOOR LOCK OPENER
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
sub77213-52190
FUEL INLET-WITH(WITHOUT/INTERFERENCE)
sub77213-52190
FUEL INLET-WITH(WITHOUT/INTERFERENCE)
FUEL INLET-WITH(WITHOUT/INTERFERENCE)
77215PLATE, FUEL TANK FILLER PIPE FLANGE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77226ATUBE, FUEL TANK BREATHER, NO.6
77227ATUBE, FUEL TANK EVAPORATION VENT
77229CCLAMP, BREATHER TUBE
77229ECLAMP, BREATHER TUBE
77241VCLIP, TUBE JOINT
77269AHOSE, FUEL TANK BREATHER
77277RPROTECTOR, FUEL TANK FILLER PIPE
77291ASHIELD, FUEL TANK FILLER PIPE
77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310ACAP ASSY, FUEL TANK
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77512BRACKET, FUEL TANK, REAR
77606FCASE SUB-ASSY, FUEL TANK COVER VENT
77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1
77746FILTER, CHARCOAL CANISTER, NO.2
77759HOSE, CHARCOAL CANISTER
FUEL INLET-WITH(W/O INTERFERENCE)
77785HARNESS, FUEL PUMP
8401
7764552020PACKING, FUEL TANK BRACKET UPPER, B
main77645-52020
9011906741
main90119-06741
9011910909
main90119-10909
90119W0087
main90119-W0087
9015960602
main90159-60602
9017906219
main90179-06219
9026905049
main90269-05049
9026906013
main90269-06013
9046022002
main90460-22002
9046046003
main90460-46003
9046050008
main90460-50008
9046712056
main90467-12056
9046904004
main90469-04004
9095901369
main90959-01369
9613251300
main96132-51300
55 parts on this diagram · 7 diagrams in section
