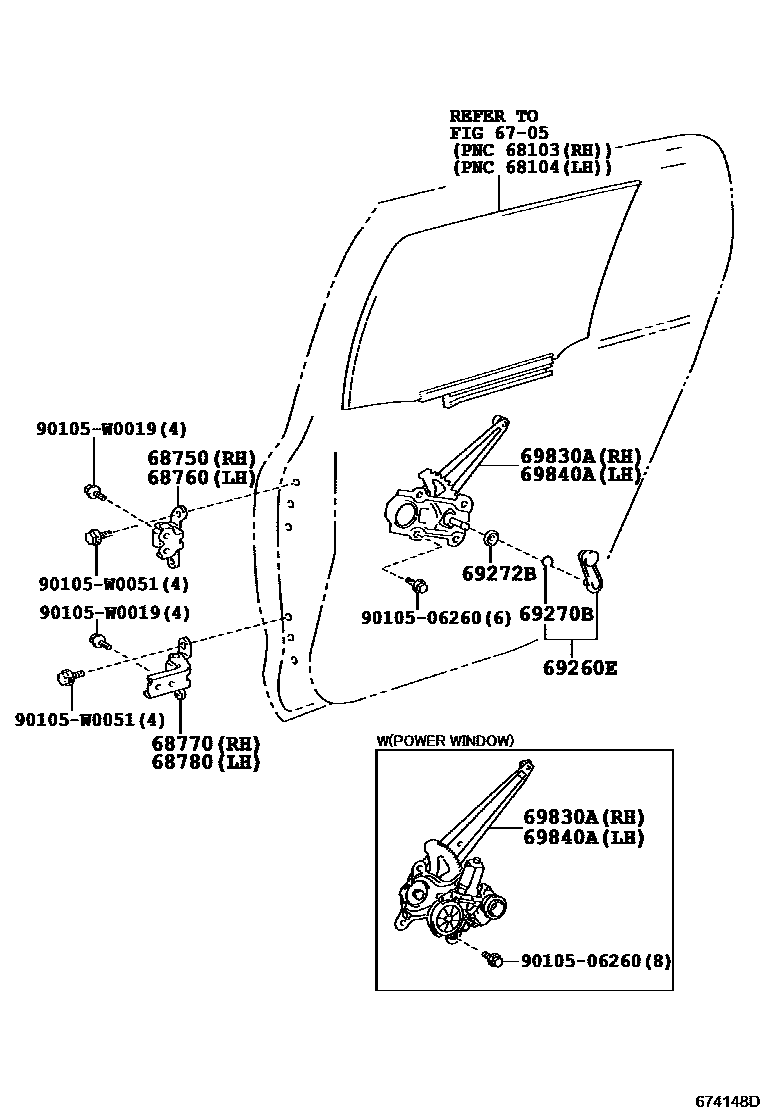

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-05020iKSP90,NLP90,NSP90..FRP..5D200811-201107

(L)

sub68750-20121

main68750-05020iKSP90,NLP90,SCP90..FRP..5D200511-200811

sub68750-20121

main68750-20121iKSP90,NLP90,NSP90..FRP..5D200811-201107

(J)

sub68750-20122

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-05020iKSP90,NLP90,SCP90..FRP..5D200511-200811

sub68760-20121

main68760-05020iKSP90,NLP90,NSP90..FRP..5D200811-201107

(L)

sub68760-20121

main68760-20121iKSP90,NLP90,NSP90..FRP..5D200811-201107

(J)

sub68760-20122

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-05020iKSP90,NLP90,SCP90..FRP..5D200511-200811

sub68770-52031

main68770-05020iKSP90,NLP90,NSP90..FRP..5D200811-201107

(L)

sub68770-52031

main68770-52031iKSP90,NLP90,NSP90..FRP..5D200811-201107

(J)

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-05020iKSP90,NLP90,SCP90..FRP..5D200511-200811

sub68780-52031

main68780-05020iKSP90,NLP90,NSP90..FRP..5D200811-201107

(L)

sub68780-52031

main68780-52031iKSP90,NLP90,NSP90..FRP..5D200811-201107

(J)

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-02020-B2iKSP90,NLP90,SCP90..FRP..5D200511-200811

DK.GRAY,TRIM1#

sub69260-02020

sub69260-02021

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90080-52100iKSP90,NLP90,SCP90..FRP..5D200511-200811

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-02022iKSP90,NLP90,SCP90..FRP..5D200511-200811

POWER WINDOW-WITH FRONT ONLY (DRIVER AUTO)

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-0D120iKSP90,NLP90,SCP90..FRP..5D200511-200811

main69830-02240iKSP90,NLP90,NSP90..FRP..5D..SOL200811

POWER WINDOW-WITH FRONT & REAR (DRIVER AUTO)

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-0D120iKSP90,NLP90,SCP90..FRP..5D200511-200811

main69840-02240iKSP90,NLP90,NSP90..FRP..5D..SOL200811

POWER WINDOW-WITH FRONT & REAR (DRIVER AUTO)

9010506260

main90105-06260

90105W0019

main90105-W0019

90105W0051

main90105-W0051

13 parts on this diagram · 1 diagram in section
