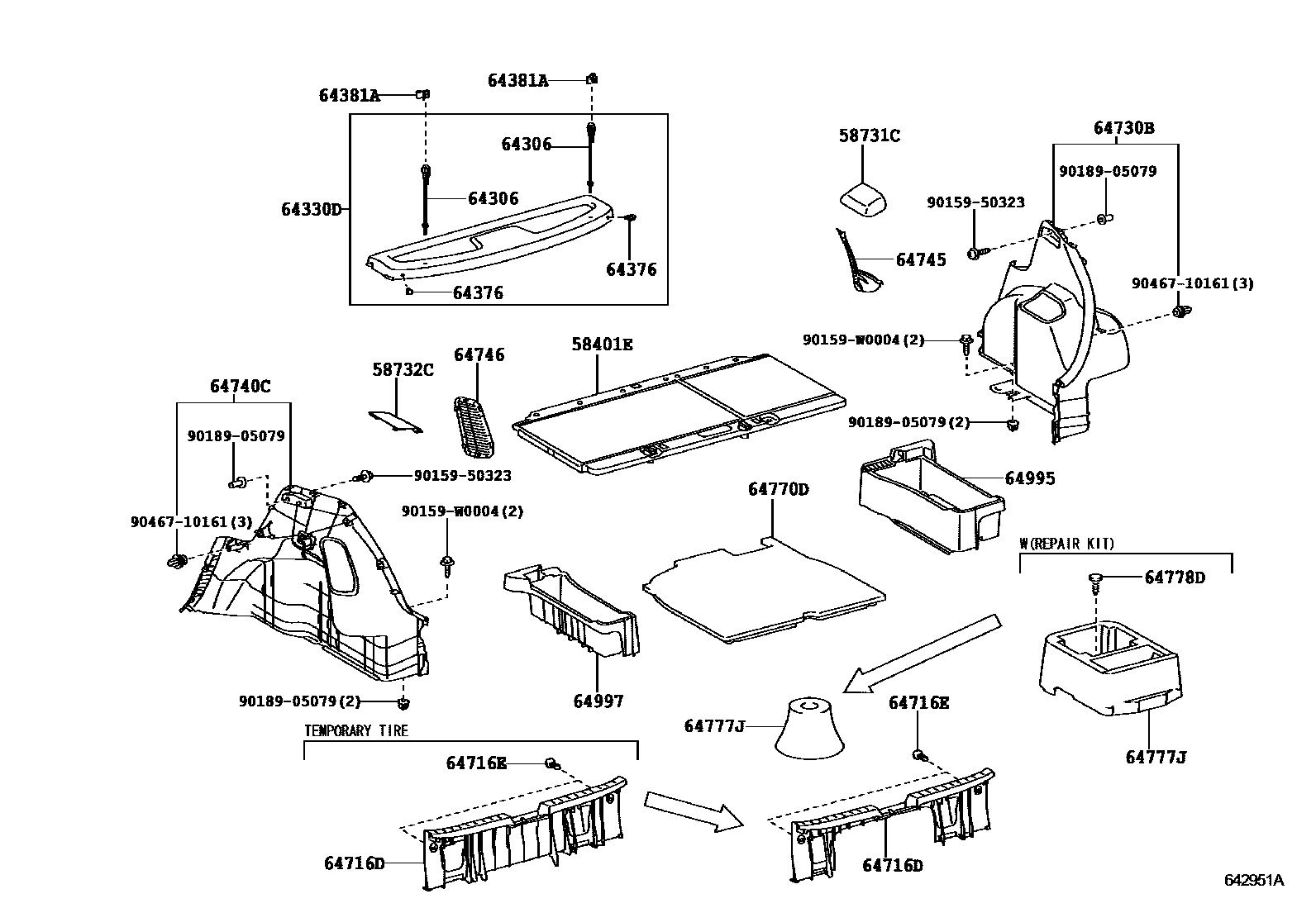

DECK BOARD & DECK TRIM COVER
58401EBOARD SUB-ASSY, DECK
LUGGAGE ROOM SEPARATOR-WITH(2WAY),DARK GRAY,TRIM1#
sub58410-0D010
TIRE & DISK WHEEL-185/60R15 RR 5.5J BLACK&SPARE TIRE-GROUND TIRE(STEEL)&LUGGAGE ROOM SEPARATOR-WITH(2WAY),DARK GRAY,TRIM1#
sub58410-0D010
TIRE & DISK WHEEL-185/60R15 RR 5.5J ALLOY&SPARE TIRE-GROUND TIRE(ALMINIUM WHEEL)&LUGGAGE ROOM SEPARATOR-WITH(2WAY),DARK GRAY,TRIM1#
sub58410-0D010
TIRE & DISK WHEEL-175/65R14 RR 5J BLACK&SPARE TIRE-GROUND TIRE(STEEL)&LUGGAGE ROOMSEPARATOR-WITH(2WAY),DARK GRAY,TRIM1#
sub58410-0D010
58731CCAP, REAR ABSORBER
58732CCAP, REAR ABSORBER
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
PACKAGE TRAY TRIM&TONNEAU COVER-W/O
PKG.TRAY TRIM&TONEAU CVR.-W/O
64330DPANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM1#,TYPE B:REFER ILLUST.
BLACK,TRIM1#,4#,TYPE B:REFER ILLUST.
PACKAGE TRAY TRIM&TONNEAU COVER-W/O,BLACK,TRIM1#,4#
sub64330-0D111
PKG.TRAY TRIM&TONEAU CVR.-W/O,BLACK,TRIM1#
sub64330-0D111
N1 PACKAGE PORTUGAL,BLACK,TRIM1#
sub64330-0D111
PACKAGE TRAY TRIM&TONNEAU COVER-W/O,BLACK,TRIM1#
sub64330-0D111
BLACK,TRIM1#,4#,TYPE A:REFER ILLUST.
BLACK,TRIM1#,TYPE A:REFER ILLUST.
64376SPACER, PACKAGE TRAY TRIM, NO.2
PACKAGE TRAY TRIM&TONNEAU COVER-W/O
PKG.TRAY TRIM&TONEAU CVR.-W/O
64381AHANGER, PACKAGE TRAY TRIM
PKG.TRAY TRIM&TONEAU CVR.-W/O
PACKAGE TRAY TRIM&TONNEAU COVER-W/O
64716DCOVER, DECK TRIM, REAR
DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
64716ECLIP(FOR DECK TRIM REAR COVER)
64730BPANEL ASSY, DECK TRIM SIDE, RH
INSTRUMENT PANEL UNDER COVER=D & P SEAT,DK.GRAY,TRIM1#
sub64730-0D072
ASH BROWN,TRIM4#
sub64730-0D072
DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
sub64730-0D102
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
64740CPANEL ASSY, DECK TRIM SIDE, LH
INSTRUMENT PANEL UNDER COVER=D & P SEAT,DK.GRAY,TRIM1#
sub64740-0D092
ASH BROWN,TRIM4#
sub64740-0D092
DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
sub64740-0D122
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
64745COVER, REAR COMBINATION LAMP SERVICE, RH
DK.GRAY,TRIM1#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
DK.GRAY,TRIM1#
64770DCOVER ASSY, SPARE WHEEL
LUGGAGE ROOM SEPARATOR-WITH(2WAY)
64777JCUSHION, SPARE WHEEL
SPARE TIRE-GROUND TIRE (STEEL)
SPARE TIRE-GROUND TIRE (ALLOY WHEEL)
N1 PACKAGE PORTUGAL
N1 PACKAGE PORTUGAL&SPARE TIRE-GROUND TIRE (STEEL)
N1 PACKAGE PORTUGAL&SPARE TIRE-GROUND TIRE (ALLOY WHEEL)
N1 PACKAGE
64778DPROTECTOR, SPARE WHEEL
64995BOX, DECK FLOOR, RH
LUGGAGE ROOM SEPARATOR-WITH(2WAY)
sub64995-52050
TIRE & DISK WHEEL-185/60R15 RR 5.5J BLACK&SPARE TIRE-GROUND TIRE(STEEL)&LUGGAGE ROOM SEPARATOR-WITH(2WAY)
sub64995-52050
TIRE & DISK WHEEL-185/60R15 RR 5.5J ALLOY&SPARE TIRE-GROUND TIRE(ALMINIUM WHEEL)&LUGGAGE ROOM SEPARATOR-WITH(2WAY)
sub64995-52050
TIRE & DISK WHEEL-175/65R14 RR 5J BLACK&SPARE TIRE-GROUND TIRE(STEEL)&LUGGAGE ROOMSEPARATOR-WITH(2WAY)
sub64995-52050
64997BOX, DECK FLOOR, LH
LUGGAGE ROOM SEPARATOR-WITH(2WAY)
sub64997-52030
TIRE & DISK WHEEL-185/60R15 RR 5.5J BLACK&SPARE TIRE-GROUND TIRE(STEEL)&LUGGAGE ROOM SEPARATOR-WITH(2WAY)
sub64997-52030
TIRE & DISK WHEEL-185/60R15 RR 5.5J ALLOY&SPARE TIRE-GROUND TIRE(ALMINIUM WHEEL)&LUGGAGE ROOM SEPARATOR-WITH(2WAY)
sub64997-52030
TIRE & DISK WHEEL-175/65R14 RR 5J BLACK&SPARE TIRE-GROUND TIRE(STEEL)&LUGGAGE ROOMSEPARATOR-WITH(2WAY)
sub64997-52030
9015950323
main90159-50323
90159W0004
main90159-W0004
9018905079
main90189-05079
9046710161
main90467-10161
22 parts on this diagram · 3 diagrams in section
