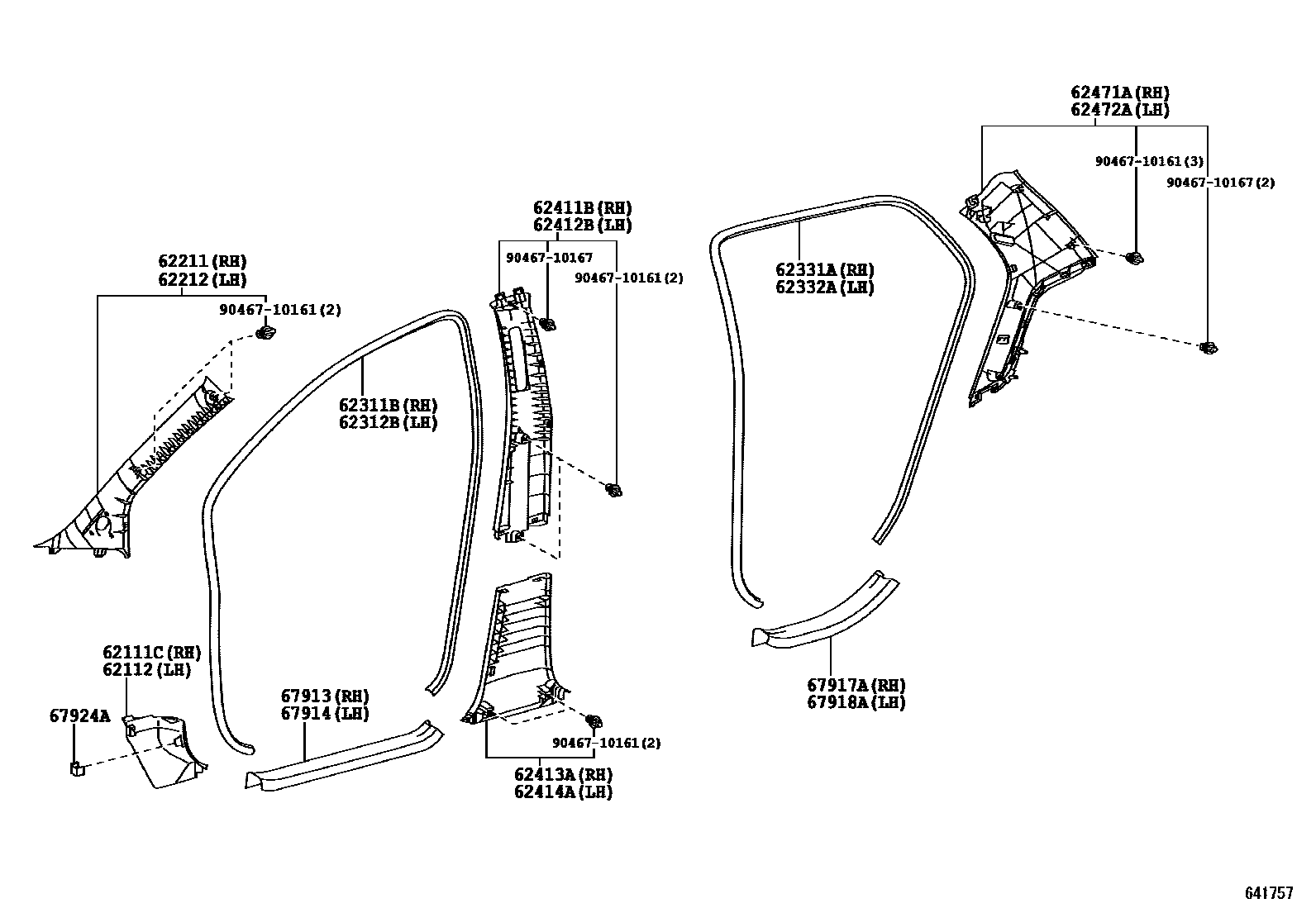

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1W(SRS CURTAIN SHIELD AIR BAG)0003 1 0004 1W(SRS CURTAIN SHIELD AIR BAG)

62111CBOARD, COWL SIDE TRIM, RH

main62111-0D060-B0iKSP90,NLP90,SCP90..FRP200511-201107

DK.GRAY,TRIM1#

main62111-0D060-E0iKSP90,NLP90,NSP90..FRP..SOL200811-201001

ASH BROWN,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-0D070-B0iKSP90,NLP90,NSP90..FRP..LHD200511-201107

DK.GRAY,TRIM1#

main62112-0D070-E0iKSP90,NLP90,NSP90..FRP..LHD..SOL200811-201001

ASH BROWN,TRIM4#

main62112-0D080-B0iKSP90,NLP90,SCP90..FRP..RHD200511-201107

DK.GRAY,TRIM1#

main62112-0D080-E0iKSP90,NLP90,NSP90..FRP..RHD..SOL200811-201001

ASH BROWN,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62211-0D060-B0iKSP90,SCP90..FRP..TRSTD200511-201107

GRAY,TRIM1#

sub62211-52140

main62211-0D060-B0iKSP90,SCP90..FRP..TRSTD200511-201107

SRS AIR BAG-*DRP & SIDE(WITHOUT/CURTAIN & KNEE),GRAY,TRIM1#

sub62211-52140

main62211-0D070-B0iKSP90,NSP90..FRP..TRSTD200511-201107

SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE,GRAY,TRIM1#

sub62211-52150

main62211-0D070-B0iKSP90,SCP90..FRP..TRSTD200511-201107

GRAY,TRIM1#

sub62211-52150

main62211-0D070-E0iKSP90,NSP90..FRP..SOL200811-201001

GREGE,TRIM4#

sub62211-52150

main62211-0D100-B0iNLP90..FRP..SOL200511-201107

SRS AIR BAG-*DRP & SIDE(WITHOUT/CURTAIN & KNEE),GRAY,TRIM1#

main62211-0D100-B0iNLP90..FRP..TRSTD200511-201107

GRAY,TRIM1#

main62211-0D110-B0iNLP90..FRP..SOL200511-201107

SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE,GRAY,TRIM1#

main62211-0D110-B0iNLP90..FRP..SOL200511-201107

GRAY,TRIM1#

main62211-0D110-E0iNLP90..FRP..SOL200811-201001

GREGE,TRIM4#

62212GARNISH, FRONT PILLAR, LH

main62212-0D060-B0iKSP90,SCP90..FRP..TRSTD200511-201107

GRAY,TRIM1#

sub62212-52140

main62212-0D060-B0iKSP90,SCP90..FRP..TRSTD200511-201107

SRS AIR BAG-*DRP & SIDE(WITHOUT/CURTAIN & KNEE),GRAY,TRIM1#

sub62212-52140

main62212-0D070-B0iKSP90,SCP90..FRP..TRSTD200511-201107

SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE,GRAY,TRIM1#

sub62212-52150

main62212-0D070-B0iKSP90,NSP90..FRP..SOL200511-201107

GRAY,TRIM1#

sub62212-52150

main62212-0D070-E0iKSP90,NSP90..FRP..SOL200811-201001

GREGE,TRIM4#

sub62212-52150

main62212-0D100-B0iNLP90..FRP..TRSTD200511-201107

GRAY,TRIM1#

main62212-0D100-B0iNLP90..FRP..TRSTD200511-201107

SRS AIR BAG-*DRP & SIDE(WITHOUT/CURTAIN & KNEE),GRAY,TRIM1#

main62212-0D110-B0iNLP90..FRP..TRSTD200511-201107

GRAY,TRIM1#

main62212-0D110-B0iNLP90..FRP..TRSTD200511-201107

SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE,GRAY,TRIM1#

main62212-0D110-E0iNLP90..FRP..SOL200811-201001

GREGE,TRIM4#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0D080-B1iKSP90,NLP90,SCP90..FRP..5D200511-200608

GRAY,TRIM1#

sub62311-0D081

main62311-0D081-B1iKSP90,NLP90,SCP90..FRP..5D200609-201107

GRAY,TRIM1#

main62311-0D081-E0iKSP90,NLP90,NSP90..FRP..5D..SOL200811-201001

GREGE,TRIM4#

main62311-0D090-B1iKSP90,NLP90,SCP90..FRP..3D200601-200608

GRAY,TRIM1#

sub62311-0D091

main62311-0D091-B1iKSP90,NLP90,NSP90..FRP..3D200609-201107

GRAY,TRIM1#

main62311-0D091-E0iKSP90,NLP90,NSP90..FRP..3D..SOL200811-201001

GREGE,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0D080-B1iKSP90,NLP90,SCP90..FRP..5D200511-200608

GRAY,TRIM1#

sub62312-0D081

main62312-0D081-B1iKSP90,NLP90,SCP90..FRP..5D200609-201107

GRAY,TRIM1#

main62312-0D081-E0iKSP90,NLP90,NSP90..FRP..5D..SOL200811-201001

GREGE,TRIM4#

main62312-0D090-B1iKSP90,NLP90,SCP90..FRP..3D200601-200608

GRAY,TRIM1#

sub62312-0D091

main62312-0D091-B1iKSP90,NLP90,SCP90..FRP..3D200609-201107

GRAY,TRIM1#

main62312-0D091-E0iKSP90,NLP90,NSP90..FRP..3D..SOL200811-201001

GREGE,TRIM4#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0D010-B1iKSP90,NLP90,SCP90..FRP..5D200511-200608

GRAY,TRIM1#

sub62331-0D011

main62331-0D011-B1iKSP90,NLP90,SCP90..FRP..5D200609-201107

GRAY,TRIM1#

main62331-0D011-E0iKSP90,NLP90,NSP90..FRP..5D..SOL200811-201001

GREGE,TRIM4#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0D010-B1iKSP90,NLP90,SCP90..FRP..5D200511-200608

GRAY,TRIM1#

sub62332-0D011

main62332-0D011-B1iKSP90,NLP90,SCP90..FRP..5D200609-201107

GRAY,TRIM1#

main62332-0D011-E0iKSP90,NLP90,NSP90..FRP..5D..SOL200811-201001

GREGE,TRIM4#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-0D060-B0iKSP90,NLP90,NSP90..FRP..5D200511-201107

GRAY,TRIM1#

main62411-0D060-E0iKSP90,NLP90,NSP90..FRP..5D..SOL200811-201001

GREGE,TRIM4#

main62411-0D070-B0iKSP90,NLP90,NSP90..FRP..3D200601-201107

GRAY,TRIM1#

main62411-0D070-E0iKSP90,NLP90,NSP90..FRP..3D..SOL200811-201001

GREGE,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-0D060-B0iKSP90,NLP90,NSP90..FRP..5D200511-201107

GRAY,TRIM1#

main62412-0D060-E0iKSP90,NLP90,NSP90..FRP..5D..SOL200811-201001

GREGE,TRIM4#

main62412-0D070-B0iKSP90,NLP90,SCP90..FRP..3D200601-201107

GRAY,TRIM1#

main62412-0D070-E0iKSP90,NLP90,NSP90..FRP..3D..SOL200811-201001

GREGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0D080-B0iKSP90,NLP90,SCP90..FRP..5D200511-201107

DK.GRAY,TRIM1#

main62413-0D080-E0iKSP90,NLP90,NSP90..FRP..5D..SOL200811-201001

ASH BROWN,TRIM4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0D080-B0iKSP90,NLP90,SCP90..FRP..5D200511-201107

DK.GRAY,TRIM1#

main62414-0D080-E0iKSP90,NLP90,NSP90..FRP..5D..SOL200811-201001

ASH BROWN,TRIM4#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-0D070-B0iKSP90,NLP90,SCP90..FRP..3D..TRSTD200601-200811

GRAY,TRIM1#

sub62471-52190

main62471-0D090-B0iKSP90,NLP90,SCP90..FRP..5D..TRSTD200511-200811

GRAY,TRIM1#

sub62471-52210

main62471-0D110-B0iKSP90,NLP90,NSP90..FRP..3D..TRSTD200811-201107

SRS AIR BAG-*DRP & SIDE(WITHOUT/CURTAIN & KNEE),GRAY,TRIM1#

sub62471-52280

main62471-0D110-B0iKSP90,NLP90,NSP90..FRP..3D..SOL200811-201107

GRAY,TRIM1#

sub62471-52280

main62471-0D120-B0iKSP90,NLP90,NSP90..FRP..3D..TRSTD200601-201107

SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE,GRAY,TRIM1#

sub62471-52140

main62471-0D120-B0iKSP90,NLP90,NSP90..FRP..3D..SOL200601-201107

GRAY,TRIM1#

sub62471-52140

main62471-0D120-B0iKSP90,NLP90,SCP90..FRP..3D..TRSTD200601-200811

INSTRUMENT PANEL UNDER COVER=D & P SEAT&SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE,GRAY,TRIM1#

sub62471-52140

main62471-0D120-E0iKSP90,NLP90,NSP90..FRP..3D..SOL200811-201001

GREGE,TRIM4#

sub62471-52140

main62471-0D130-B0iKSP90,NLP90,NSP90..FRP..5D..SOL200811-201107

GRAY,TRIM1#

sub62471-52290

main62471-0D130-B0iKSP90,NLP90,NSP90..FRP..5D..TRSTD200811-201107

SRS AIR BAG-*DRP & SIDE(WITHOUT/CURTAIN & KNEE),GRAY,TRIM1#

sub62471-52290

main62471-0D140-B0iKSP90,NLP90,SCP90..FRP..5D..SOL200511-201107

SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE,GRAY,TRIM1#

sub62471-52180

main62471-0D140-B0iKSP90,NLP90,SCP90..FRP..5D..SOL200511-201107

GRAY,TRIM1#

sub62471-52180

main62471-0D140-B0iKSP90,NLP90,SCP90..FRP..5D..SOL200511-200811

INSTRUMENT PANEL UNDER COVER=D & P SEAT&SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE,GRAY,TRIM1#

sub62471-52180

main62471-0D140-E0iKSP90,NLP90,NSP90..FRP..5D..SOL200811-201001

GREGE,TRIM4#

sub62471-52180

62472AGARNISH, ROOF SIDE, INNER LH

main62472-0D070-B0iKSP90,NLP90,SCP90..FRP..3D..TRSTD200601-200811

GRAY,TRIM1#

sub62472-52220

main62472-0D110-B0iKSP90,NLP90,SCP90..FRP..5D..TRSTD200511-200811

GRAY,TRIM1#

sub62472-52180

main62472-0D130-B0iKSP90,NLP90,NSP90..FRP..3D..SOL200811-201107

GRAY,TRIM1#

sub62472-52340

main62472-0D130-B0iKSP90,NLP90,NSP90..FRP..3D..SOL200811-201107

SRS AIR BAG-*DRP & SIDE(WITHOUT/CURTAIN & KNEE),GRAY,TRIM1#

sub62472-52340

main62472-0D140-B0iKSP90,NLP90,SCP90..FRP..3D..TRSTD200601-201107

SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE,GRAY,TRIM1#

sub62472-52170

main62472-0D140-B0iKSP90,NLP90,NSP90..FRP..3D..TRSTD200601-201107

GRAY,TRIM1#

sub62472-52170

main62472-0D140-B0iKSP90,NLP90,SCP90..FRP..3D..SOL200601-200811

INSTRUMENT PANEL UNDER COVER=D & P SEAT&SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE,GRAY,TRIM1#

sub62472-52170

main62472-0D140-E0iKSP90,NLP90,NSP90..FRP..3D..SOL200811-201001

GREGE,TRIM4#

sub62472-52170

main62472-0D150-B0iKSP90,NLP90,NSP90..FRP..5D..TRSTD200811-201107

GRAY,TRIM1#

sub62472-52200

main62472-0D150-B0iKSP90,NLP90,NSP90..FRP..5D..SOL200811-201107

SRS AIR BAG-*DRP & SIDE(WITHOUT/CURTAIN & KNEE),GRAY,TRIM1#

sub62472-52200

main62472-0D160-B0iKSP90,NLP90,SCP90..FRP..5D..TRSTD200511-201107

GRAY,TRIM1#

sub62472-52190

main62472-0D160-B0iKSP90,NLP90,SCP90..FRP..5D..SOL200511-200811

INSTRUMENT PANEL UNDER COVER=D & P SEAT&SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE,GRAY,TRIM1#

sub62472-52190

main62472-0D160-B0iKSP90,NLP90,SCP90..FRP..5D..SOL200511-201107

SRS AIR BAG-*DRP & SIDE & CURTAIN & KNEE,GRAY,TRIM1#

sub62472-52190

main62472-0D160-E0iKSP90,NLP90,NSP90..FRP..5D..SOL200811-201001

GREGE,TRIM4#

sub62472-52190

67913PLATE, FRONT DOOR SCUFF, RH

main67913-0D070-B0iKSP90,NLP90,NSP90..FRP..3D200601-201107

DK.GRAY,TRIM1#

main67913-0D070-E0iKSP90,NLP90,NSP90..FRP..3D..SOL200811-201001

ASH BROWN,TRIM4#

main67913-0D080-B0iKSP90,NLP90,SCP90..FRP..5D200511-201107

DK.GRAY,TRIM1#

main67913-0D080-E0iKSP90,NLP90,NSP90..FRP..5D..SOL200811-201001

ASH BROWN,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-0D070-B0iKSP90,NLP90,NSP90..FRP..3D200601-201107

DK.GRAY,TRIM1#

main67914-0D070-E0iKSP90,NLP90,NSP90..FRP..3D..SOL200811-201001

ASH BROWN,TRIM4#

main67914-0D080-B0iKSP90,NLP90,SCP90..FRP..5D200511-201107

DK.GRAY,TRIM1#

main67914-0D080-E0iKSP90,NLP90,NSP90..FRP..5D..SOL200811-201001

ASH BROWN,TRIM4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-0D060-B0iKSP90,NLP90,SCP90..FRP..5D200511-201107

DK.GRAY,TRIM1#

main67917-0D060-E0iKSP90,NLP90,NSP90..FRP..5D..SOL200811-201001

ASH BROWN,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-0D060-B0iKSP90,NLP90,NSP90..FRP..5D200511-201107

DK.GRAY,TRIM1#

main67918-0D060-E0iKSP90,NLP90,NSP90..FRP..5D..SOL200811-201001

ASH BROWN,TRIM4#

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67924-52140iKSP90,NLP90,NSP90..FRP200511-200811

9046710161

main90467-10161

9046710167

main90467-10167

21 parts on this diagram · 4 diagrams in section
