SIDE MEMBER

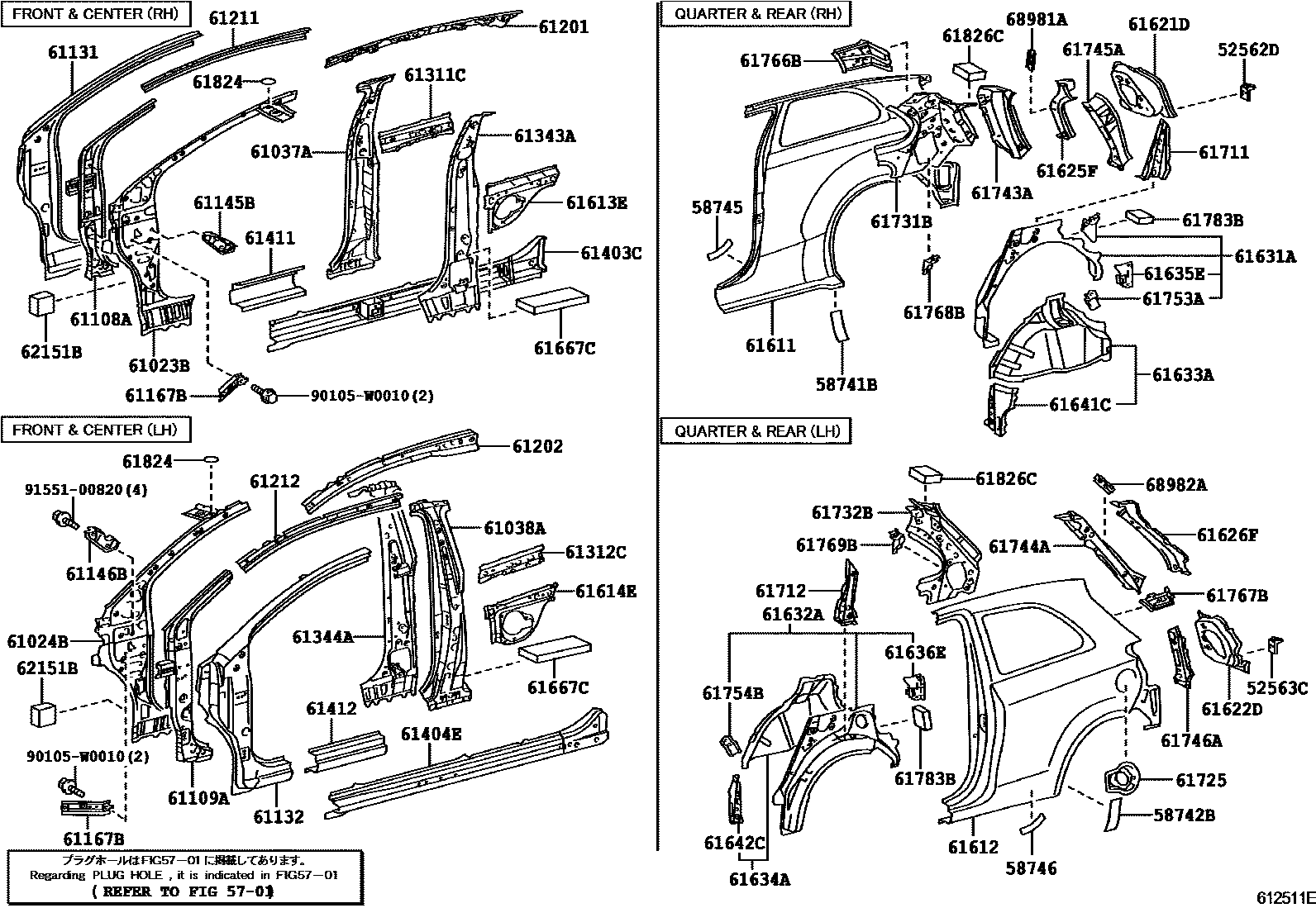

Parts diagram
52562DRETAINER, REAR BUMPER, UPPER SIDE, RH
main52562-52030i200511-200811
52563CRETAINER, REAR BUMPER, UPPER SIDE, LH
main52562-52030i200511-200811
5701
58741BPROTECTOR, QUARTER PANEL, RH
main58741-0D030i200511-200811
main58741-0D040i200601-200811
58742BPROTECTOR, QUARTER PANEL, LH
main58742-0D030i200511-200811
main58742-0D040i200601-200811
58745PROTECTOR, QUARTER PANEL, FRONT RH
main58745-0D020i200601-200811
58746PROTECTOR, QUARTER PANEL, FRONT LH
main58746-0D020i200601-200811
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
main61023-0D090i200511-201107
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
main61024-0D090i200511-201107
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
main61037-0D902i200601-200811
main61037-0D903i200511-200811
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
main61038-0D902i200601-200811
main61038-0D903i200511-200811
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
main61108-0D050i200511-200811
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
main61109-0D050i200511-200811
61131PILLAR, FRONT BODY, UPPER OUTER RH
main61131-52170i200511-200811
main61131-52210i200601-200811
61132PILLAR, FRONT BODY, UPPER OUTER LH
main61132-52110i200511-200811
main61132-52190i200601-200811
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
main61145-0D020i200511-200811
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
main61146-0D020i200511-200811
61167BBRACE, FRONT BODY PILLAR, LOWER
main61167-52010i200511-200811
61201RAIL SUB-ASSY, ROOF SIDE, RH
main61201-0D020i200511-200811
main61201-52070i200601-200811
61202RAIL SUB-ASSY, ROOF SIDE, LH
main61202-0D020i200511-200811
main61202-52040i200601-200811
61211RAIL, ROOF SIDE, OUTER RH
main61071-0D010i200601-200811
main61211-0D060i200511-200811
61212RAIL, ROOF SIDE, OUTER LH
main61072-0D010i200601-200811
main61212-0D060i200511-200811
61311CPANEL, REAR BODY FRONT OUTSIDE, RH
main61311-0D010i200601-200811
61312CPANEL, REAR BODY FRONT OUTSIDE, LH
main61312-0D010i200601-200811
61343APILLAR, CENTER BODY, INNER RH
main61032-0D010i200511-200811
main61032-0D020i200601-200811
61344APILLAR, CENTER BODY, INNER LH
main61042-0D010i200511-200811
main61042-0D020i200601-200811
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
main61403-0D060i200511-200811
main61403-0D070i200601-200811
61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH
main61404-0D060i200511-200811
main61404-0D070i200601-200811
61411PANEL, ROCKER, OUTER RH
main61411-52160i200511-200811
main61411-52170i200601-200811
61412PANEL, ROCKER, OUTER LH
main61412-52170i200511-200811
main61412-52180i200601-200811
61611PANEL, QUARTER, RH
main61601-52270i200511-200811
main61611-52240i200601-200811
61612PANEL, QUARTER, LH
main61602-52290i200511-200811
main61602-52310i200601-200811
61613EPANEL, QUARTER, INNER RH
main61613-52050i200601-200811
61614EPANEL, QUARTER, INNER LH
main61614-52030i200601-200811
61621DTROUGH, BACK DOOR OPENING, RH
main61621-52110i200511-200811
61622DTROUGH, BACK DOOR OPENING, LH
main61622-52110i200511-200811
61625FEXTENSION, QUARTER PANEL, UPPER RH
main61625-52110i200511-200811
61626FEXTENSION, QUARTER PANEL, UPPER LH
main61626-52110i200511-200811
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
main61631-52903i200511-200811
main61631-52904i200601-200811
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
main61632-52902i200511-200811
main61632-52903i200601-200811
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
main61607-0D902i200511-200811
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
main61608-0D902i200511-200811
61635EEXTENSION, QUARTER WHEEL HOUSE, RH
main61635-52060i200511-200811
61636EEXTENSION, QUARTER WHEEL HOUSE, LH
main61636-52060i200511-200811
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
main61641-0D060i200511-200811
61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH
main61642-0D060i200511-200811
61667CSEAL, QAURTER PANEL, NO.1
main61667-52070i200601-200811
61711PANEL, ROOF SIDE, OUTER RH
main61711-52130i200511-200811
61712PANEL, ROOF SIDE, OUTER LH
main61712-52160i200511-200811
61725BOX, FUEL INLET
main61725-52080i200511-200811
61731BPANEL, ROOF SIDE, INNER RH
main61731-52180i200511-200811
main61731-52190i200601-200811
61732BPANEL, ROOF SIDE, INNER LH
main61732-52230i200511-200801
sub61732-52231
main61732-52231i200802-200811
main61732-52240i200601-200801
sub61732-52241
main61732-52241i200802-200811
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
main61743-52071i200511-200811
61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH
main61744-52061i200511-200811
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
main61745-52080i200511-200811
61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH
main61746-52080i200511-200811
61753ARETAINER, QUARTER TRIM, LOWER
main61753-52020i200601-200811
61754BRETAINER, QUARTER TRIM, LOWER LH
main61754-52020i200601-200811
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
main61766-0D040i200511-200811
main61766-0D050i200601-200811
61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH
main61767-0D040i200511-200811
main61767-0D050i200601-200811
61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH
main61768-52151i200511-200811
61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH
main61769-52151i200511-200811
61783BPAD, REAR WHEEL OPENING EXTENSION, NO.1
main61783-0D020i200511-200811
61824PLATE, NOISE CONTROL, NO.1
main61824-0D040i200511-200907
main61824-12060i200907
61826CPAD, NOISE SHUTTER, NO.3
main61826-0D020i200511-200811
62151BPAD, COWL SIDE SILENCER
main62151-0D040i200511-200811
68981ARETAINER, BACK DOOR STAY, RH
main68981-52050i200511-200811
68982ARETAINER, BACK DOOR STAY, LH
main68981-52050i200511-200811
90105W0010
main90105-W0010
9155100820
main91551-00820

70 parts on this diagram · 2 diagrams in section
