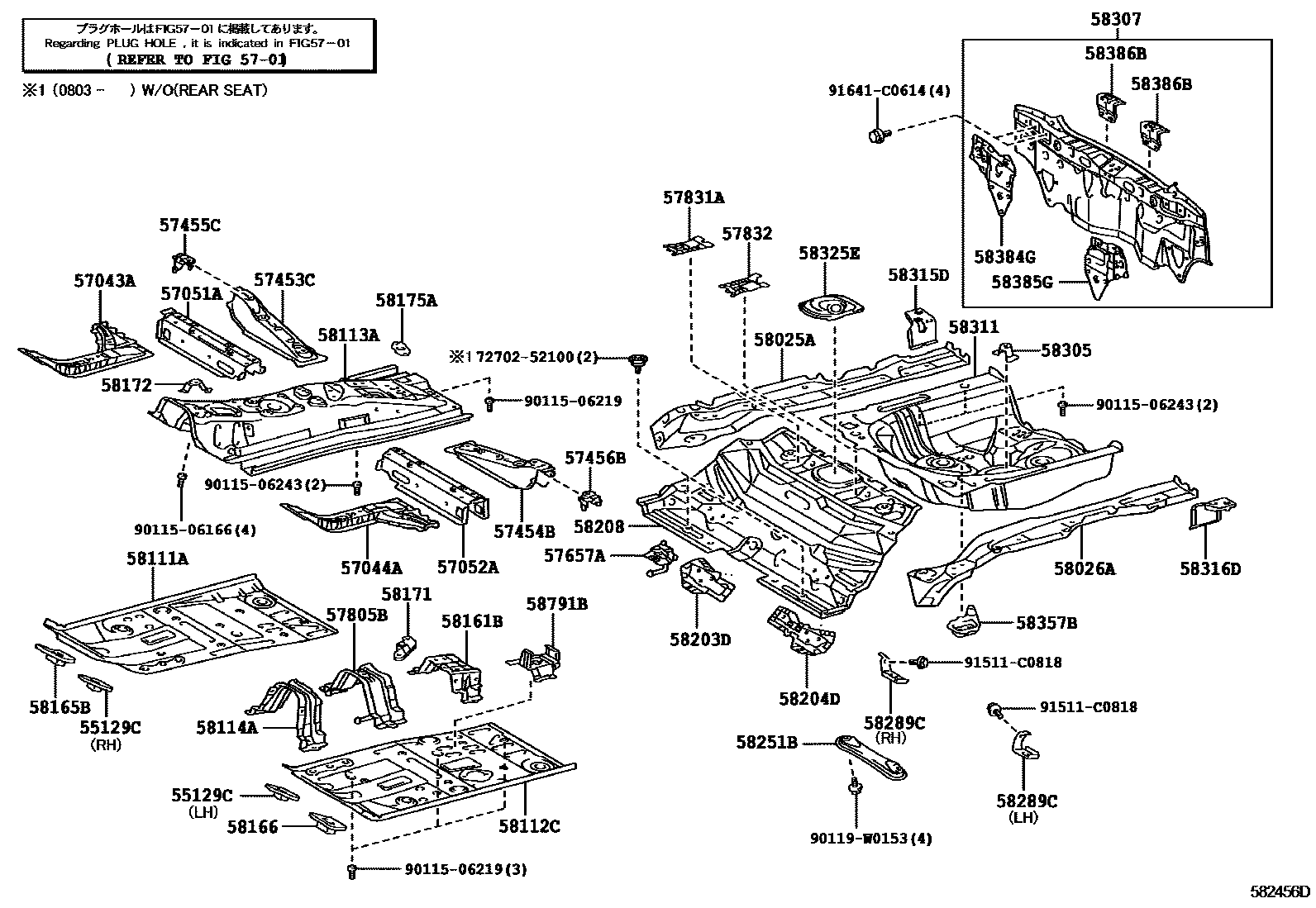

FLOOR PAN & LOWER BACK PANEL

55129CCOVER, DASH PANEL HOLE

main55129-0D100iKSP90,NLP90,SCP90..FRP¥1,240200511-200811

RH

main55139-0D020iKSP90,NLP90,SCP90..FRP¥1,240200511-200811

LH

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-0D010iKSP90,NLP90,NSP90..FRP200511-201011

sub57043-0D011

main57043-0D011iKSP90,NLP90,NSP90..FRP201012

sub57043-0D012

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-0D040iKSP90,NLP90,SCP90..FRP200511-201011

sub57044-0D041

main57044-0D041iKSP90,NLP90,NSP90..FRP201012

sub57044-0D042

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-52020iKSP90,NLP90,NSP90..FRP¥8,700200511-200912

sub57051-52030

main57051-52030iKSP90,NLP90,NSP90..FRP201001

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-52020iKSP90,NLP90,SCP90..FRP¥8,700200511-200811

57453CMEMBER, FRONT FLOOR CROSS SIDE, RH

main57453-52020iKSP90,NLP90,SCP90..FRP¥6,500200511-201009

sub57453-52021¥6,500

sub57455-52040¥550

main57453-52021iKSP90,NLP90,NSP90..FRP¥6,500201010

sub57453-52022¥4,060

57454BMEMBER, FRONT FLOOR CROSS SIDE, LH

main57454-52010iKSP90,NLP90,SCP90..FRP¥6,500200511-201009

sub57454-52011¥6,500

sub57456-52040¥550

main57454-52011iKSP90,NLP90,NSP90..FRP¥6,500201010

sub57454-52012¥4,060

57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH

main57455-52040iKSP90,NLP90,NSP90..FRP¥550201010

57456BBRACKET, FRONT SEAT MOUNTING, OUTSIDE LH

main57456-52040iKSP90,NLP90,NSP90..FRP¥550201010

57657ABRACKET, EXHAUST PIPE MOUNTING, NO.2

main51904-52010iKSP90,NLP90,NSP90..FRP¥1,340200511-200811

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-0D060iKSP90,NLP90,SCP90..FRP200511-200811

57831AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1

main57831-0D020iKSP90,NLP90,SCP90..FRP200511-200811

57832REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2

main57832-0D020iKSP90,NLP90,SCP90..FRP200511-200811

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-52010iKSP90,NLP90,SCP90..FRP¥6,800200511-200904

main58025-52021iKSP90,NLP90,NSP90..FRP200905-201011

sub58025-52022¥8,000

main58025-52022iKSP90,NLP90,NSP90..FRP¥8,000201012

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-52010iKSP90,NLP90,SCP90..FRP¥6,800200511-200904

main58026-52021iKSP90,NLP90,NSP90..FRP200905-201011

sub58026-52022¥8,000

main58026-52022iKSP90,NLP90,NSP90..FRP¥8,000201012

58111APAN, FRONT FLOOR, RH

main58111-52160iKSP90,NLP90,SCP90..FRP¥18,400200511-200811

sub58111-52270

58112CPAN, FRONT FLOOR, LH

main58112-52901iKSP90,NLP90,SCP90..FRP¥18,400200511-200811

sub58112-52918¥18,400

58113APANEL, FRONT FLOOR, CENTER

main58113-52906iKSP90,NLP90,SCP90..FRP..5F200511-200811

sub58113-52925¥30,500

main58113-52907iKSP90,NLP90,NSP90..FRP..(5FS,6FS)200511-200811

sub58113-52926

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-52070iKSP90,NLP90,NSP90..FRP¥4,350200511-201009

sub58114-52071¥2,740

main58114-52071iKSP90,NLP90,NSP90..FRP¥2,740201010

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-52070iKSP90,NLP90,NSP90..FRP¥3,450201010

main58161-52090iKSP90,NLP90,NSP90..FRP¥5,500200511-201009

sub58161-52070¥3,450

58165BCOVER, FRONT FLOOR, RH

main58165-0D020iKSP90,NLP90,SCP90..FRP¥2,080200511-200811

58166COVER, FRONT FLOOR, LH

main58166-0D020iKSP90,NLP90,SCP90..FRP¥2,080200511-200811

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-52090iKSP90,NLP90,SCP90..FRP¥840200511-200811

58172BRACKET, COMPUTER MOUNTING, NO.3

main58172-52020iKSP90,NLP90,SCP90..FRP¥500200511-200811

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-52020iKSP90,NLP90,SCP90..FRP¥220200511-200811

58203DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH

main58203-52060iKSP90,NLP90,SCP90..FRP¥6,600200511-200811

58204DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH

main58204-52060iKSP90,NLP90,SCP90..FRP¥8,200200511-201007

sub58204-52061¥8,200

main58204-52061iKSP90,NLP90,NSP90..FRP¥8,200201008

58208PAN, CENTER FLOOR

main58211-52240iKSP90,NLP90,SCP90..FRP200511-200811

58251BBRACE, FLOOR PANEL, FRONT

main58251-52020iKSP90,NLP90,SCP90..FRP¥840200511-200811

58289CBRACKET, FLOOR BRAKE HOSE, REAR

main58289-52030iKSP90,NLP90,NSP90..FRP¥820200511-201107

RH

sub58289-52080¥900

main58299-52060iKSP90,NLP90,SCP90..FRP¥820200511-201107

LH

sub58299-52100¥940

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-52070iKSP90,NLP90,SCP90..FRP¥500200511-200811

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-52430iKSP90,NLP90,SCP90..FRP¥20,700200511-201107

58311PAN, REAR FLOOR

main58311-52110iKSP90,NLP90,SCP90..FRP¥15,300200511-200811

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-0D040iKSP90,NLP90,SCP90..FRP¥1,970200511-200811

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-0D040iKSP90,NLP90,SCP90..FRP¥1,970200511-200811

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-52050iKSP90,NLP90,SCP90..FRP¥1,450200511-200811

58357BBRACKET, ACTUATOR COVER, NO.3 RH

main58357-52030iKSP90,NLP90,SCP90..FRP¥1,280200511-201104

sub58357-52031¥880

main58357-52031iKSP90,NLP90,NSP90..FRP¥880201105-201107

58384GGUSSET, LOWER BACK, UPPER RH

main58384-52080iKSP90,NLP90,SCP90..FRP¥3,700200511-200811

58385GGUSSET, LOWER BACK, UPPER LH

main58385-52060iKSP90,NLP90,SCP90..FRP¥3,650200511-200811

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-52040iKSP90,NLP90,SCP90..FRP¥820200511-200811

58791BCARRIER, JACK

main58791-52060iKSP90,NLP90,SCP90..FRP¥1,310200511-200811

7270252100BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-52100

9011506166

main90115-06166¥90

9011506219

main90115-06219¥80

9011506243

main90115-06243¥80

90119W0153

main90119-W0153

91511C0818

main91511-C0818¥130

91641C0614

main91641-C0614¥70

49 parts on this diagram · 1 diagram in section
