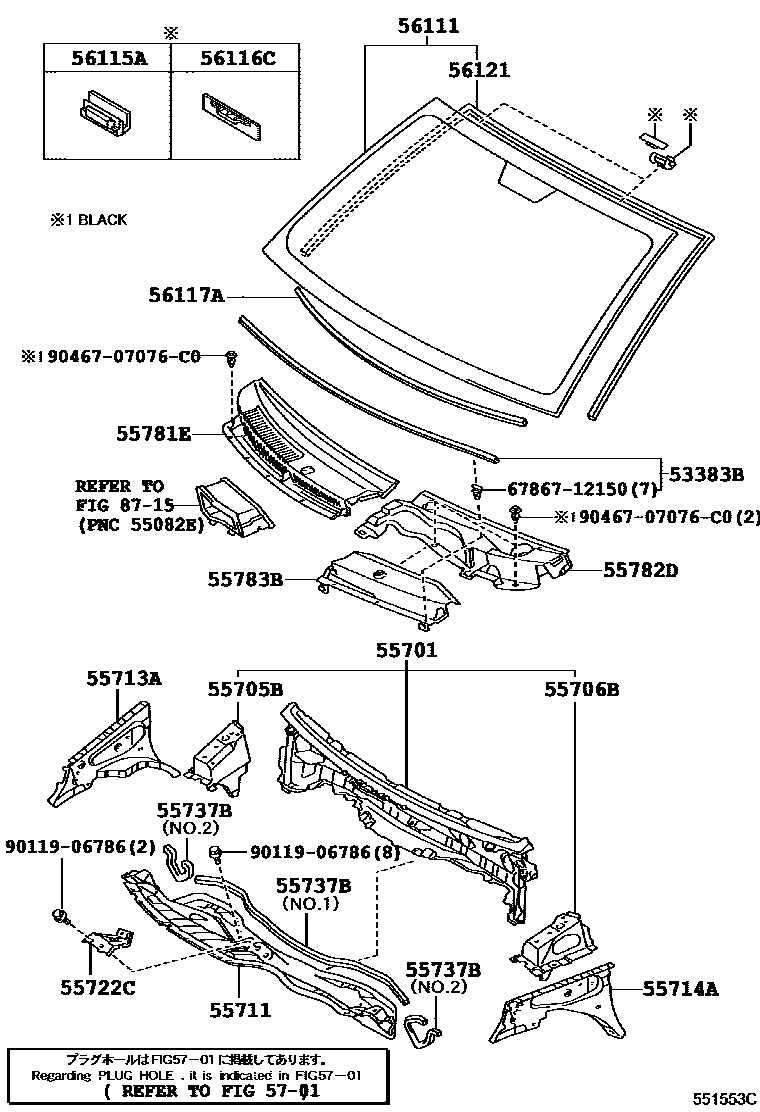

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
sub53383-52050
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55711PANEL, COWL TOP, OUTER
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55722CBRACE, COWL TOP TO COWL, INNER
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
NO.1
NO.2
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
COLD SPEC, WITH(REAR HEATER DUCT)
COLD SPEC, WITH OUT(REAR HEATER DUCT)
COLD SPEC, WITH(REAR HEATER DUCT)
COLD SPEC, WITH OUT(REAR HEATER DUCT)
55782DLOUVER, COWL TOP VENTILATOR, LH
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
56111GLASS, WINDSHIELD
*LAM,T=4.66,GREEN
*LAM,T=4.66,GREEN
*LAM,T=4.66,GREEN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
*LAM,T=4.66,GREEN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=1010,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
sub56117-50140
56121WEATHERSTRIP, WINDSHIELD
5701
8715
6786712150CLIP, DOOR WEATHERSTRIP
main67867-12150
9011906786
main90119-06786
9046707076C0
main90467-07076C0
22 parts on this diagram · 2 diagrams in section
