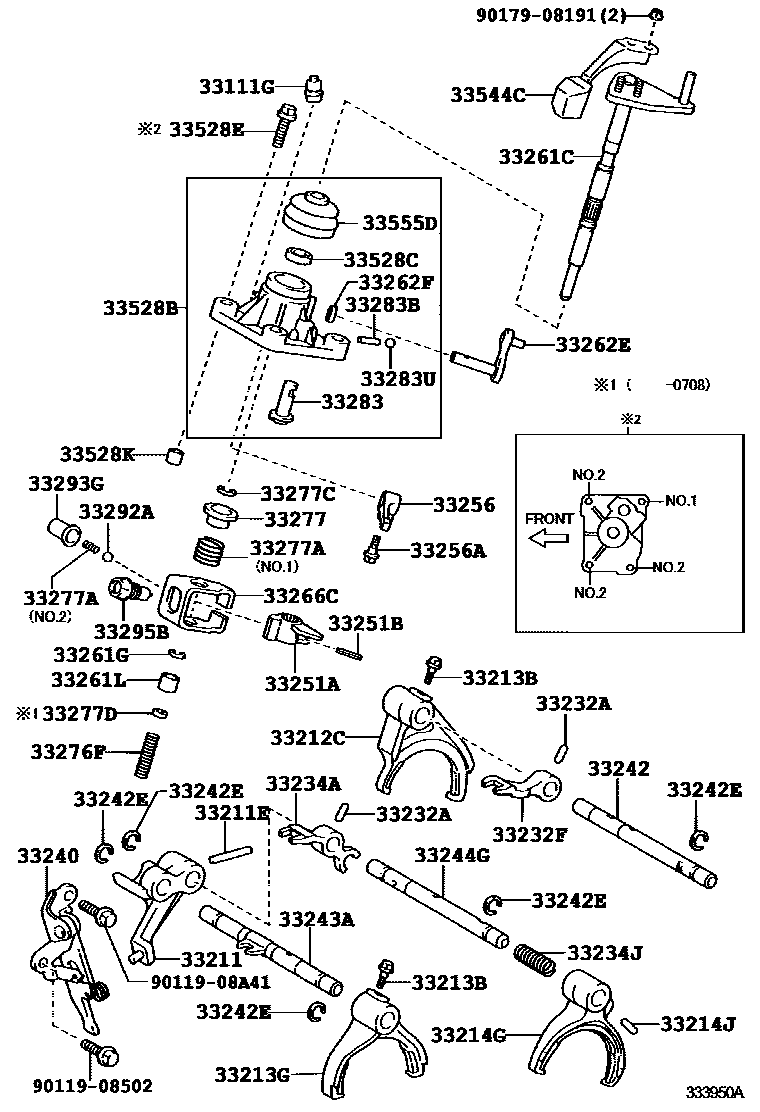

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33211FORK, REVERSE SHIFT
TMMP:REFER FIG.33-01
AI-A:REFER FIG.33-01
33211EPIN, STRAIGHT(FOR REVERSE SHIFT FORK)
AI-A:REFER FIG.33-01
TMMP:REFER FIG.33-01
33212CFORK, GEAR SHIFT, NO.1
TMMP:REFER FIG.33-01
TMMP:REFER FIG.33-01
AI-A:REFER FIG.33-01
33213BBOLT(FOR SHIFT FORK SET)
ECO MODEL PACKAGE
33213GFORK, GEAR SHIFT, NO.2
TMMP:REFER FIG.33-01
AI-A:REFER FIG.33-01
AI-A:REFER FIG.33-01
33214GFORK, GEAR SHIFT, NO.3
TMMP:REFER FIG.33-01
AI-A:REFER FIG.33-01
33214JPIN, STRAIGHT(FOR 5TH SHIFT FORK)
AI-A:REFER FIG.33-01
TMMP:REFER FIG.33-01
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
ECO MODEL PACKAGE
33232FHEAD, GEAR SHIFT, NO.1
33234AHEAD, GEAR SHIFT, NO.3
ECO MODEL PACKAGE
33234JSPRING, COMPRESSION (FOR SHIFT RETURN)
AI-A:REFER FIG.33-01
TMMP:REFER FIG.33-01
33240BRACKET ASSY, REVERSE SHIFT ARM
TMMP:SEE 33-01,(L)
TOYOTA:REFER 33-01,TMMP:REFER FIG.33-01
TMMP:SEE 33-01,(J),AI-A:REFER FIG.33-01,TOYOTA:REFER 33-01
33242SHAFT, GEAR SHIFT FORK, NO.1
TMMP:REFER FIG.33-01
AI-A:REFER FIG.33-01
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
ECO MODEL PACKAGE
33243ASHAFT, GEAR SHIFT FORK, NO.2
TMMP:REFER FIG.33-01
AI-A:REFER FIG.33-01
AI-A:REFER FIG.33-01
33244GSHAFT, GEAR SHIFT FORK, NO.3
TMMP:REFER FIG.33-01
AI-A:REFER FIG.33-01
33251ALEVER, SHIFT, INNER NO.1
TMMP:REFER FIG.33-01
TMMP:REFER FIG.33-01
AI-A:REFER FIG.33-01
TOYOTA:REFER 33-01
sub33251-52060
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=22
L=28.0
L=25.5
33256LEVER, SELECT INNER
TMMP:REFER FIG.33-01
AI-A:REFER FIG.33-01
TMMP:REFER FIG.33-01
TOYOTA:REFER 33-01
33256ABOLT, SET (FOR SELECT INNER LEVER)
33261GRING, SNAP (FOR SHIFT & SELECT LEVER SHAFT)
33261LBUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT)
(J),NO.1
NO.1
AI-A:REFER FIG.33-01
(J),NO.2
NO.2
TMMP:REFER FIG.33-01
(L),NO.1
(L),NO.2
33262ESHAFT, SELECT LEVER
33262FSEAL, OIL (FOR SELECT LEVER SHAFT)
ECO MODEL PACKAGE
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
ECO MODEL PACKAGE
33277SEAT, SELECT SPRING, NO.2
33277ASPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
NO.1
NO.2
33277CRING, SHAFT SNAP (FOR SELECT SPRING NO.2 SEAT)
33277DSPACER (FOR SELECT RETURN SPRING)
33283PIN, REVERSE RESTRICT, NO.1
ECO MODEL PACKAGE
33283BPIN, STRAIGHT (FOR REVERSE RESTRICT PIN)
ECO MODEL PACKAGE
33283UBALL, REVERSE RESTRICT PIN
ECO MODEL PACKAGE
33292APIN, LOCK BALL
(L)
(J)
33293GHOLDER, LOCK BALL
33295BPIN, SHIFT GATE
ECO MODEL PACKAGE
33528BCOVER, CONTROL SHAFT
33528CSEAL, OIL (FOR CONTROL SHAFT COVER)
33528EBOLT (FOR CONTROL SHAFT COVER)
*8-1.25X35-30,TMMP, NO.1
*8-1.25X35-30
*8-1.25X35-30,AI-A, NO.1
*8-1.25X35-30,TMMP, NO.1 & NO.2
*8-1.25X35-30,AI-A, NO.1 & NO.2
*8-1.25X35-30,AI-A, NO.2
*8-1.25X35-30,ECO MODEL PACKAGE,AI-A, NO.1
*10-1.25PX25-19.8
*8-1.25PX35-30,TMMP, NO.2
*8-1.25PX35-30,AI-A, NO.2
*10-1.25PX25-25
33528KPIN, RING (FOR CONTROL SHAFT COVER SET BOLT)
ECO MODEL PACKAGE
33555DBOOT, SHIFT LEVER
ECO MODEL PACKAGE
9011908502
9011908A41
9017908191
47 parts on this diagram · 7 diagrams in section
