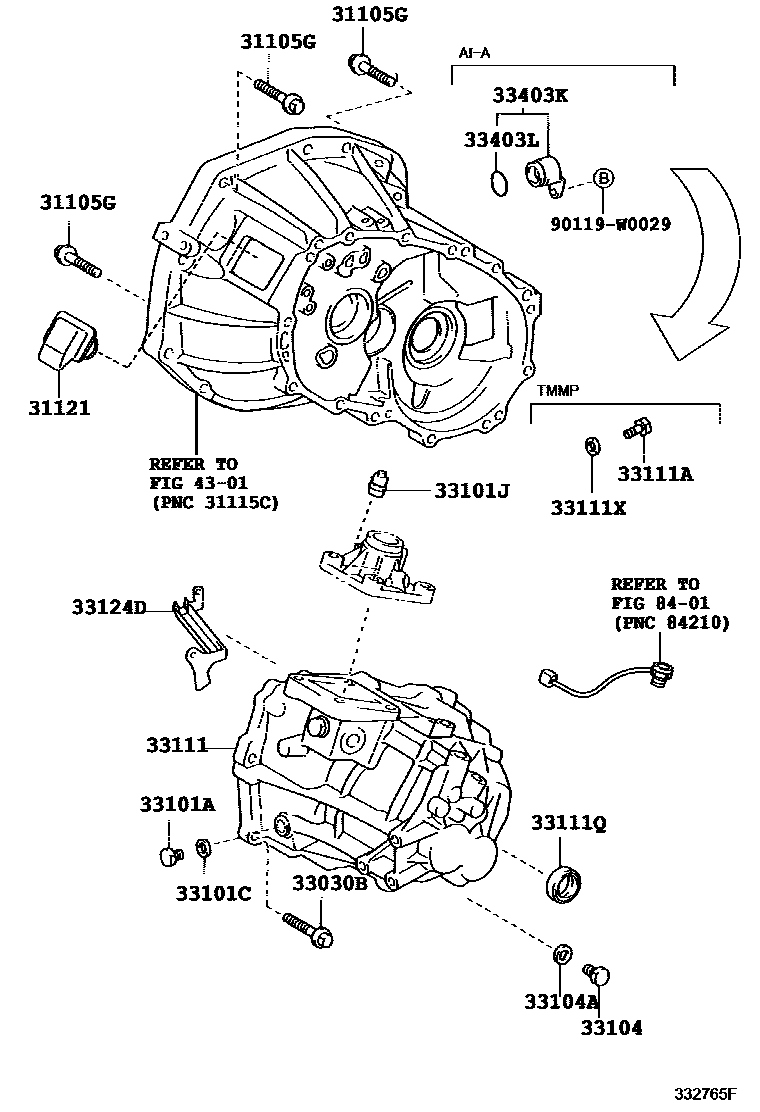

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
*12-1.25PX45-30
*12-1.25PX45-30,TYPE A
*10-1.25PX45-26
*10-1.25PX80-26
*12-1.25PX45-30,TYPE B
*12-1.25PX80-30
*10-1.25PX45-30
*10-1.25PX50-30
*10-1.25PX40-30
31121COVER, CLUTCH HOUSING, NO.1
(L)
TMMP:REFER FIG.33-01
AI-A:REFER FIG.33-01
(J)
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
*8-1.25PX45-27.5
*8-1.25PX60-30
*8-1.25PX50-30
*8-1.25PX45-27.5
*8-1.25PX35-22,AI-A:REFER FIG.33-01
*8-1.25PX40-22
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
NO.1
NO.2
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
NO.1
AI-A:REFER FIG.33-01
(J),NO.2
NO.2
(L),NO.2
TMMP:REFER FIG.33-01
33101JPLUG, BREATHER
33104PLUG SUB-ASSY, DRAIN(MTM)
ECO MODEL PACKAGE
33104AGASKET, DRAIN PLUG(MTM)
AI-A:REFER FIG.33-01
TMMP:REFER FIG.33-01
33111CASE, MANUAL TRANSMISSION
TMMP:REFER FIG.33-01
TMMP:REFER FIG.33-01
AI-A:REFER FIG.33-01
AI-A:REFER FIG.33-01
sub33111-12260
sub33111-52131
sub33111-12320
33111APLUG, MANUAL TRANSMISSION CASE
ENGINE-WITHOUT(STOP & START SYSTEM)
TMMP:REFER FIG.33-01
33111QSEAL, OIL(FOR TRANSMISSION CASE)
sub90311-34042
AI-A:REFER FIG.33-01
AI-A:REFER FIG.33-01,TOYOTA:REFER 33-01
sub90311-35064
sub90311-35066
sub90311-35075
33111XGASKET, TRANSMISSION CASE PLUG
TMMP:REFER FIG.33-01
33124DPIPE, OIL RECEIVER, NO.2(MTM)
TMMP:REFER FIG.33-01
AI-A:REFER FIG.33-01
33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
AI-A:REFER FIG.33-01
33403LRING, O
AI-A:REFER FIG.33-01
4301
8401
90119W0029
main90119-W0029
