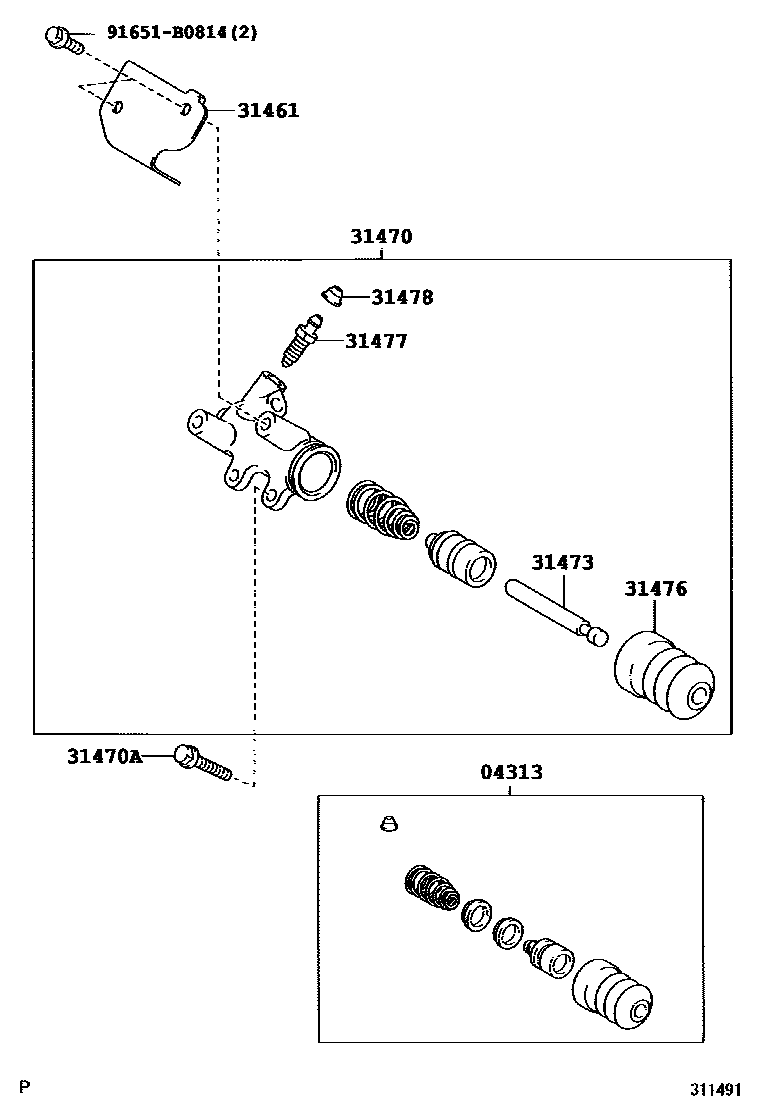

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-35060iNLP90..FRP..5F200511-200811

main04313-52020iKSP90,SCP90..FRP..5F200511-200811

main04313-52020iKSP90..FRP..5F200811-200906

ECO MODEL PACKAGE

main04313-52021iKSP90..FRP..5F200906

ECO MODEL PACKAGE

31461INSULATOR, RELEASE CYLINDER HEAT

main31461-0D010iKSP90,SCP90..FRP..5F200511-200811

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-52100iKSP90..FRP..5F200811-200904

TMMP:REFER FIG.33-01

sub31470-52101

main31470-52100iKSP90,SCP90..FRP..5F200511-200811

sub31470-52101

main31470-52100iKSP90..FRP..5F200811-200906

AI-A:REFER FIG.33-01

sub31470-52101

main31470-52101iKSP90..FRP..5F200904-201101

TMMP:REFER FIG.33-01

sub31470-52102

main31470-52101iKSP90..FRP..5F200906-201101

AI-A:REFER FIG.33-01

sub31470-52102

main31470-52102iKSP90..FRP201101-201107

AI-A:REFER FIG.33-01,TMMP:REFER FIG.33-01

main31470-52131iNLP90..FRP..5F200511-200811

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iKSP90..FRP..5F200511-201009

*8-1.25PX22-17.1

main91611-60822iKSP90..FRP..5F201005-201009

*8-1.25PX22-17.1,ECO MODEL PACKAGE

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22030iNLP90..FRP..5F200511-200811

main31473-30070iKSP90..FRP..5F200511-201005

main31473-30070iKSP90..FRP..5F201005-201009

ECO MODEL PACKAGE

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iNLP90..FRP..5F200511-201005

main31476-22010iKSP90..FRP..5F201005-201009

ECO MODEL PACKAGE

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iKSP90,SCP90..FRP..5F200511-200811

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iKSP90,SCP90..FRP..5F200511-201107

91651B0814

main91651-B0814

9 parts on this diagram · 3 diagrams in section
