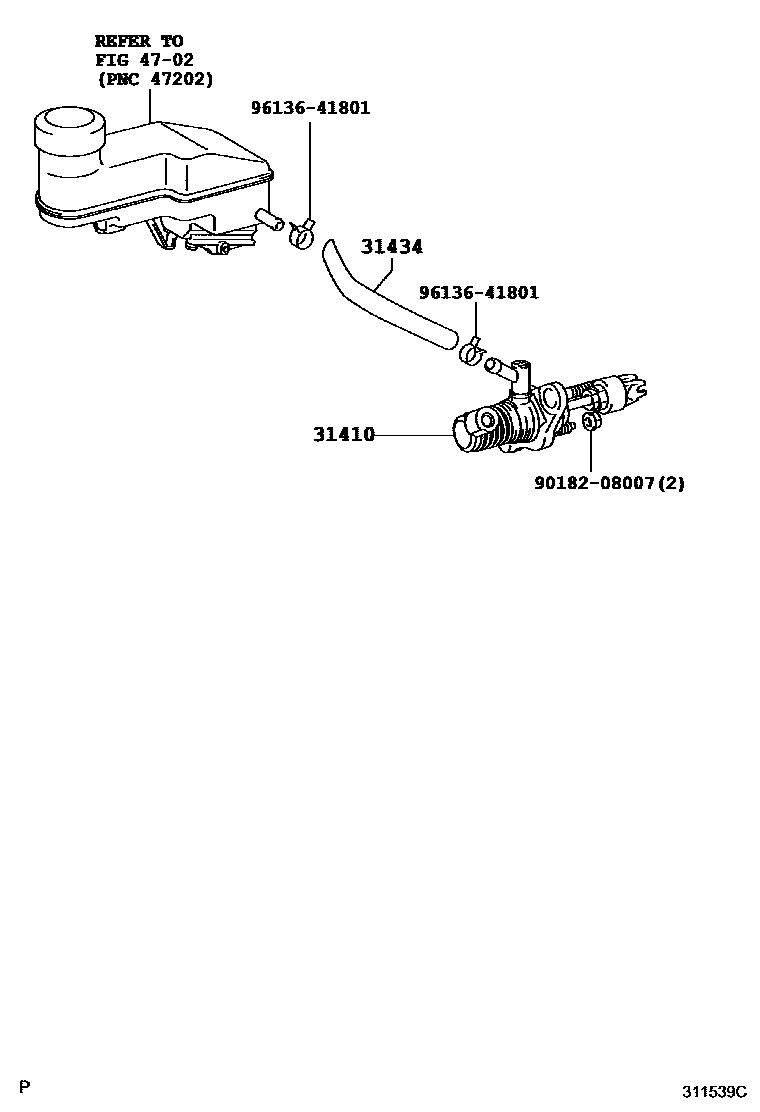

CLUTCH MASTER CYLINDER

0001 1 0003 1

31410CYLINDER ASSY, CLUTCH MASTER

main31420-0D070iKSP90..FRP..RHD..5F200811-201107

main31420-0D080iSCP90..FRP..RHD..5F200511-200811

main31420-0D081iNSP90..FRP..RHD..6F200811-201107

main31420-0D090iNLP90..FRP..RHD..5F200511-200811

sub31420-0D091

main31420-0D100iKSP90..FRP..LHD..5F200811-201107

main31420-0D110iSCP90..FRP..LHD..5F200511-200811

main31420-0D111iNSP90..FRP..LHD..6F200811-201107

main31420-0D120iNLP90..FRP..LHD..5F200511-200811

main31420-0D121iNLP90..FRP..LHD..6F200811-201107

main31420-52050iNLP90..FRP..RHD..6F200811-201107

31434TUBE, CLUTCH RESERVOIR

main31434-52170iKSP90,NLP90,SCP90..FRP..RHD..5F200511-200811

main31434-52180iKSP90,NLP90,NSP90..FRP..LHD..(5F,6F)200811

4702

9018208007

main90182-08007

9613641801

main96136-41801

5 parts on this diagram · 2 diagrams in section
