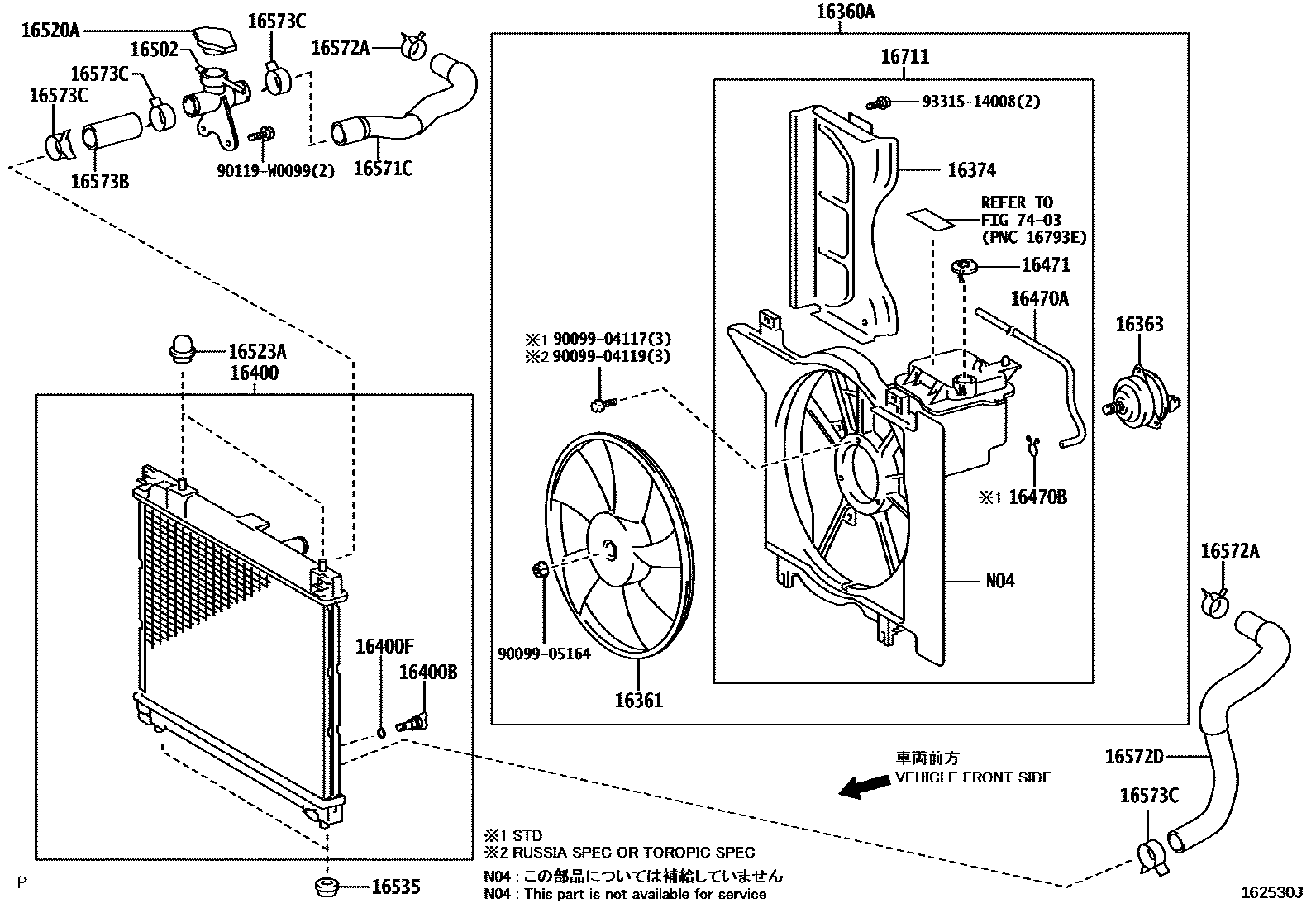

RADIATOR & WATER OUTLET
16360AFAN ASSY, W/MOTOR
sub16360-0N051
RUSSIA SPEC&TROPICAL SPEC(A2,B RANK)
sub16360-0Q031
RUSSIA SPEC
RUSSIA SPEC&TROPICAL SPEC(A,B RANK)
TROPICAL SPEC(A,B RANK)
16361FAN
TROPICAL SPEC(A2,B RANK)
RUSSIA SPEC
RUSSIA SPEC&TROPICAL SPEC(A2,B RANK)
RUSSIA SPEC&TROPICAL SPEC(A,B RANK)
TROPICAL SPEC(A,B RANK)
16363MOTOR, COOLING FAN
RUSSIA SPEC
RUSSIA SPEC&TROPICAL SPEC(A,B RANK)
TROPICAL SPEC(A,B RANK)
sub16363-0G051
RUSSIA SPEC&TROPICAL SPEC(A2,B RANK)
RUSSIA SPEC
TROPICAL SPEC(A2,B RANK)
16374INSULATOR, COOLING FAN MOTOR
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
RUSSIA SPEC&TROPICAL SPEC(A,B RANK)
TROPICAL SPEC(A,B RANK)
RUSSIA SPEC
RUSSIA SPEC&TROPICAL SPEC(A2,B RANK)
TROPICAL SPEC(A2,B RANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16502FILLER SUB-ASSY, WATER
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16572DHOSE, RADIATOR, NO.2
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
16711SHROUD, FAN
sub16711-0N031
RUSSIA SPEC
RUSSIA SPEC&TROPICAL SPEC(A2,B RANK)
TROPICAL SPEC(A2,B RANK)
RUSSIA SPEC&TROPICAL SPEC(A,B RANK)
TROPICAL SPEC(A,B RANK)
7403
9009904117
main90099-04117
9009904119
main90099-04119
9009905164
main90099-05164
90119W0099
main90119-W0099
9331514008
main93315-14008
29 parts on this diagram · 15 diagrams in section
