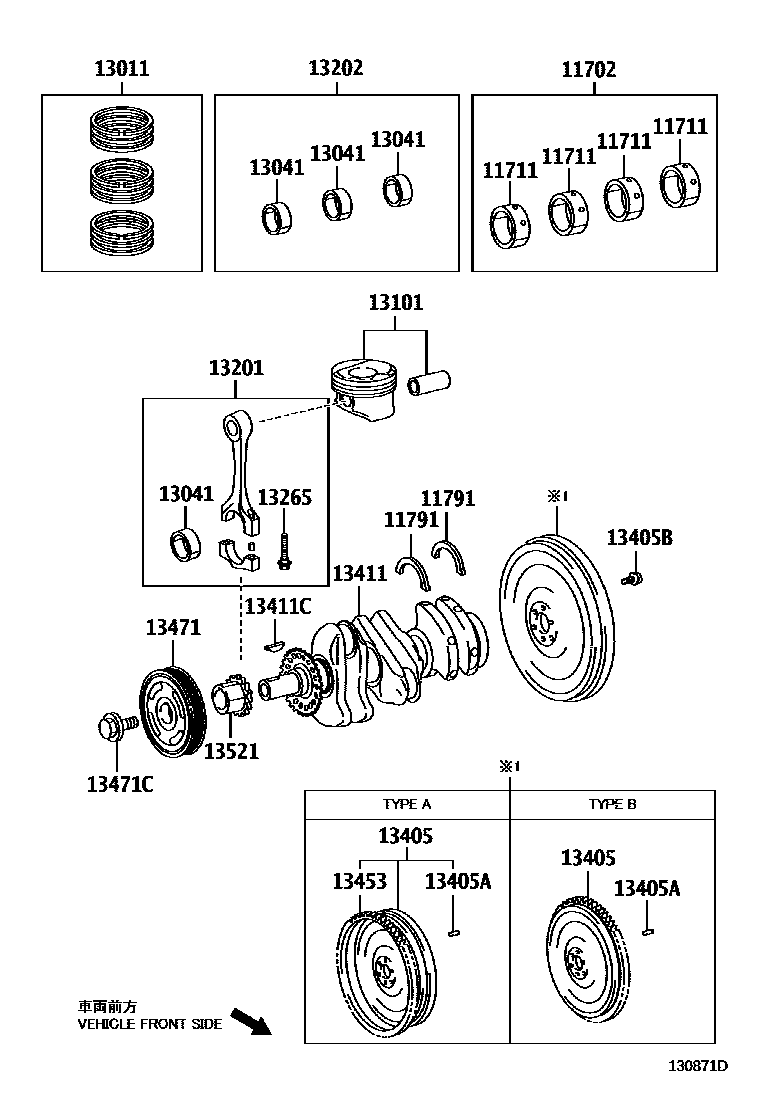

CRANKSHAFT & PISTON
11702BEARING SET, CRANKSHAFT
U/S 0.25
U/S 0.25
U/S 0.25
11711BEARING, CRANKSHAFT
MARK2,(L):REFER R/M
MARK3,(L):REFER R/M
MARK4,(L):REFER R/M
MARK5,(L):REFER R/M
MARK2,(L):REFER R/M
MARK3,(L):REFER R/M
MARK4,(L):REFER R/M
MARK5,(L):REFER R/M
MARK 1,(J):REFER R/M
MARK 2,(J):REFER R/M
MARK 3,(J):REFER R/M
MARK 4,(J):REFER R/M
MARK2,(J):REFER R/M
MARK3,(J):REFER R/M
MARK4,(J):REFER R/M
MARK5,(J):REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
STD,(J)
STD
STD,(J)
STD
O/S 0.125
O/S 0.125
O/S 0.125
O/S 0.25
O/S 0.25
O/S 0.25
13011RING SET, PISTON
STD,*138,(L)
STD
STD,*251
STD,*132
STD,*137
STD
STD,*132,*138,(J)
O/S 0.50
13041BEARING, CONNECTING ROD
MARK1,*138,(L):REFER R/M
sub13041-0Q020
MARK2,*138,(L):REFER R/M
sub13041-0Q020
MARK3,*138,(L):REFER R/M
sub13041-0Q020
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK1,*132:REFER R/M
MARK2,*132:REFER R/M
MARK3,*132:REFER R/M
13101PISTON SUB-ASSY, W/PIN
STD
STD,MARKA,REFER REPAIR MANUAL
STD,MARKB,REFER REPAIR MANUAL
STD,MARKC,REFER REPAIR MANUAL
STD,MARKA,REFER REPAIR MANUAL
STD,MARKB,REFER REPAIR MANUAL
STD,MARKC,REFER REPAIR MANUAL
STD,MARK A,REFER REPAIR MANUAL
STD,MARK B,REFER REPAIR MANUAL
STD,MARK C,REFER REPAIR MANUAL
STD
O/S 0.50
13201ROD SUB-ASSY, CONNECTING
(L)
(J)
13202BEARING SET, CONNECTING ROD
U/S 0.25
U/S 0.25
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
(J)
TYPE A
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
(L)
(J)
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
13453GEAR, FLYWHEEL RING
(L)
(J)
13471PULLEY, CRANKSHAFT
(L)
(J)
(J)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
18 parts on this diagram · 6 diagrams in section
