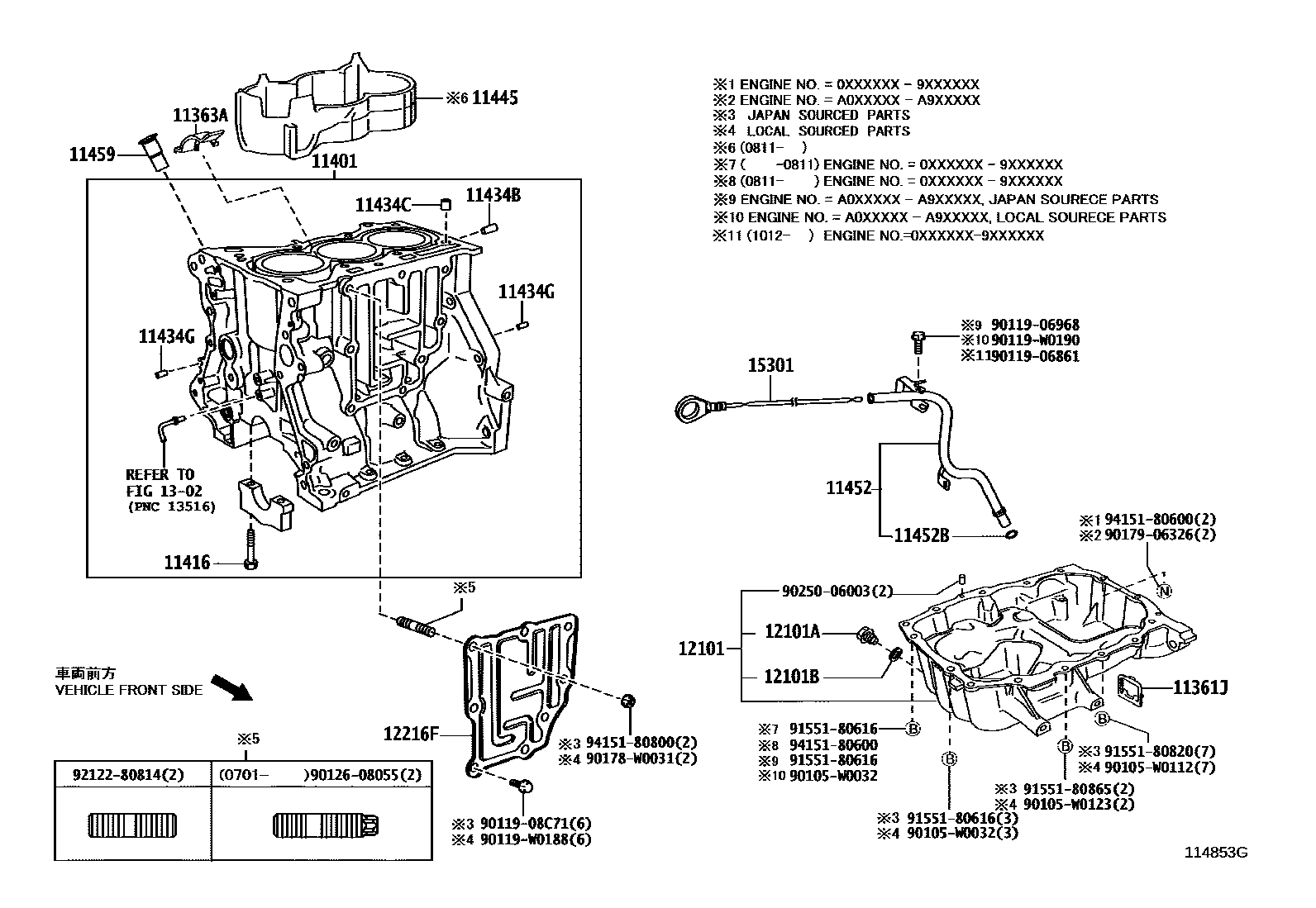

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11363ACOVER, FLYWHEEL HOUSING SIDE
(L)
(J)
11401BLOCK SUB-ASSY, CYLINDER
sub11410-0J010
*132
sub11410-39155
sub11410-49016
sub11410-49017
sub11410-49018
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
L=22,OD=10
L=14,OD=10
L=15,OD=8
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=18,OD=8
L=12,OD=12
11434GPIN, STRAIGHT(FOR END PLATE)
11445SPACER, CYLINDER BLOCK WATER JACKET
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
11459SUPPORT, OIL LEVEL GAGE GUIDE
12101PAN SUB-ASSY, OIL
(L)
*132
(J)
*137
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
(L)
(J)
12216FPLATE, VENTILATION BAFFLE
1302
15301GAGE SUB-ASSY, OIL LEVEL
*138
*132
90105W0032
main90105-W0032
90105W0112
main90105-W0112
90105W0123
main90105-W0123
9011906861
main90119-06861
9011906968
main90119-06968
9011908C71
main90119-08C71
90119W0188
main90119-W0188
90119W0190
main90119-W0190
9012608055
main90126-08055
90178W0031
main90178-W0031
9017906326
main90179-06326
9025006003
main90250-06003
9155180616
main91551-80616
9155180820
main91551-80820
9155180865
main91551-80865
9212280814
main92122-80814
9415180600
main94151-80600
9415180800
main94151-80800
35 parts on this diagram · 7 diagrams in section
