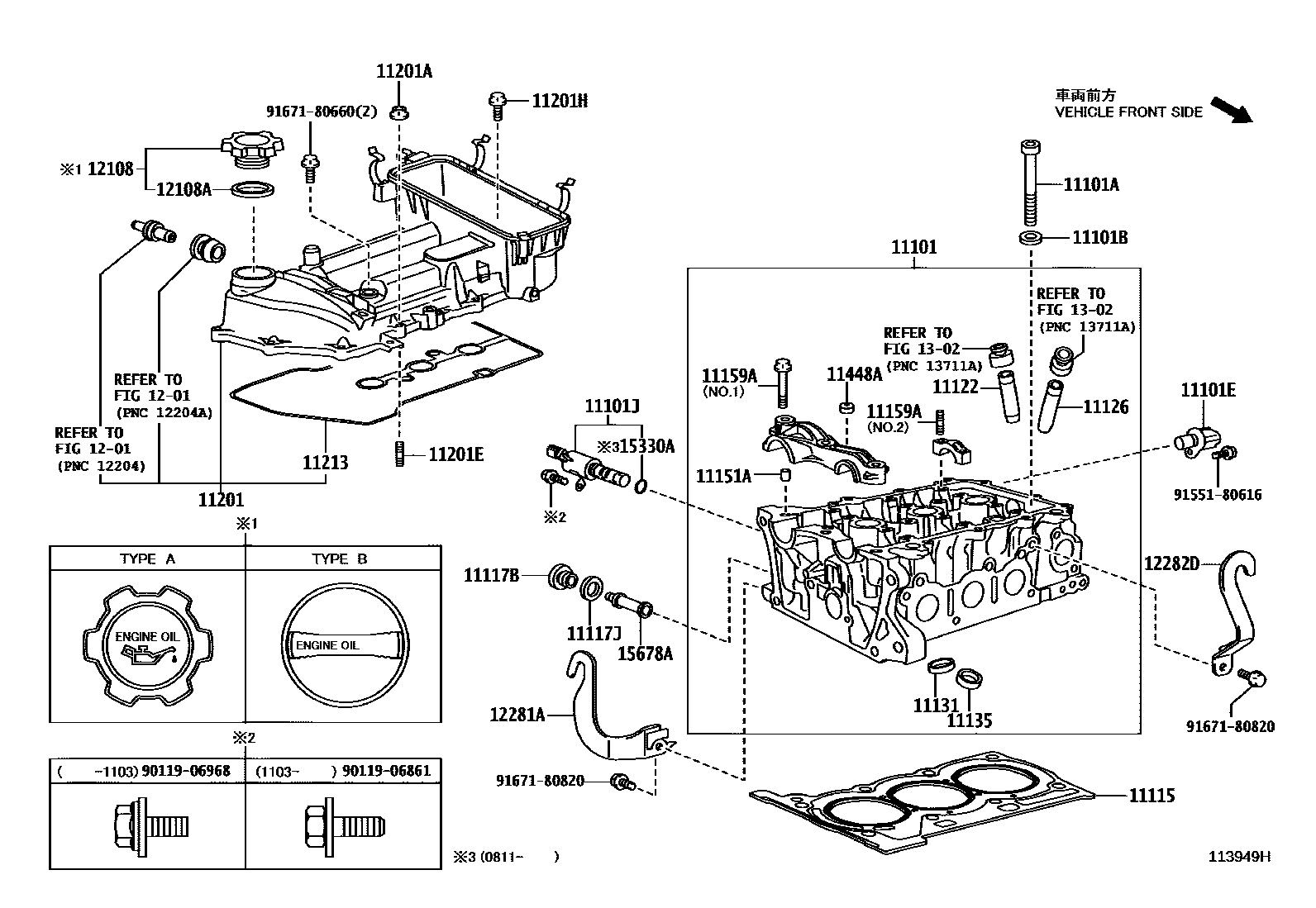

CYLINDER HEAD
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
*132
*251
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
*132,*138,(J)
*132
NO.1
NO.2
11115GASKET, CYLINDER HEAD
T=0.41
MARKA,REFER REPAIR MANUAL
MARKB,REFER REPAIR MANUAL
MARKC,REFER REPAIR MANUAL
MARKD,REFER REPAIR MANUAL
MARKE,REFER REPAIR MANUAL
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11122BUSH, INTAKE VALVE GUIDE
STD
STD,*132,*138
STD
STD,*132
STD,*251
O/S 0.05
O/S 0.05,*132,*138
O/S 0.05,*132
O/S 0.05
O/S 0.05,*251
11126BUSH, EXHAUST VALVE GUIDE
STD
STD,*132,*138
STD
STD,*132
STD,*251
O/S 0.05
O/S 0.05,*132,*138
O/S 0.05,*132
O/S 0.05,*251
O/S 0.05
11131SEAT, INTAKE VALVE
STD,(L)
STD,*138,(L)
STD,*138
STD,(J)
STD
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD,(L)
STD,*138,(L)
STD,*138
STD,(J)
STD
O/S 0.03
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=10,OD=8,*132
L=10,OD=8,*251
L=11,OD=9
L=12.5,OD=8
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
NO.2
NO.1
*251,NO.1
*132,NO.1
*251,NO.2
*132,NO.2
NO.2
NO.1
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
(L)
(J)
11201EBOLT, STUD(FOR CYLINDER HEAD COVER SET)
11201HBOLT(FOR CYLINDER HEAD COVER)
(L)
(J)
11448AORIFICE, CYLINDER HEAD OIL
1201
12108CAP SUB-ASSY, OIL FILLER
(J)
*251
*132
*138T/P B:REF.ILLUST
*132T/P B:REF.ILLUST
TYPE A:REFER ILLUST.
12108AGASKET(FOR OIL FILLER CAP)
*251
*132
(J)
12282DHANGER, ENGINE, NO.2
EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS),*132
*132
*251
*251
*132
1302
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15678AFILTER, OIL CONTROL VALVE
9011906861
main90119-06861
9011906968
main90119-06968
9155180616
main91551-80616
9167180660
main91671-80660
9167180820
main91671-80820
33 parts on this diagram · 9 diagrams in section
