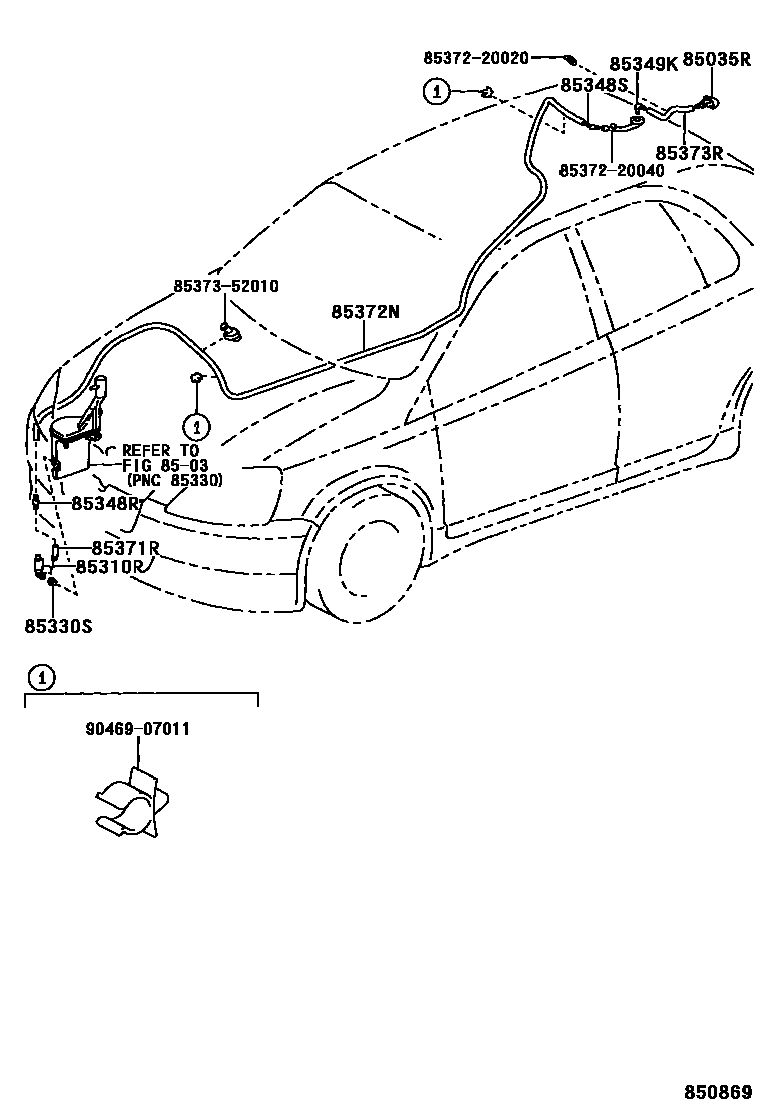

REAR WASHER

0001 1 0002 1 0003 1

8503

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-0D010iSCP1#200101-200302

85310RMOTOR ASSY, REAR WASHER

main85340-05010iSCP1#200101-200505

sub85340-05011

main85340-05011iNLP10,SCP1#..FRP200506

85330SBUSH, REAR WASHER JAR

main90069-20005iSCP1#200101-200505

85348RJOINT, REAR WASHER HOSE, NO.1

main85375-05050iSCP1#200101-200302

85348SJOINT, REAR WASHER ELBOW, NO.1

main85395-05020iSCP1#200101-200302

85349KJOINT, REAR WASHER ELBOW, NO.2

main85395-0D010iSCP1#200101-200302

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90069-16009iSCP1#200101-200505

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90069-16013iSCP1#200101-200302

L=4670

sub90069-16011

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90069-16010iSCP1#200101-200302

8537220020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20020

8537220040HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20040

8537352010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-52010

9046907011

main90469-07011

14 parts on this diagram · 3 diagrams in section
