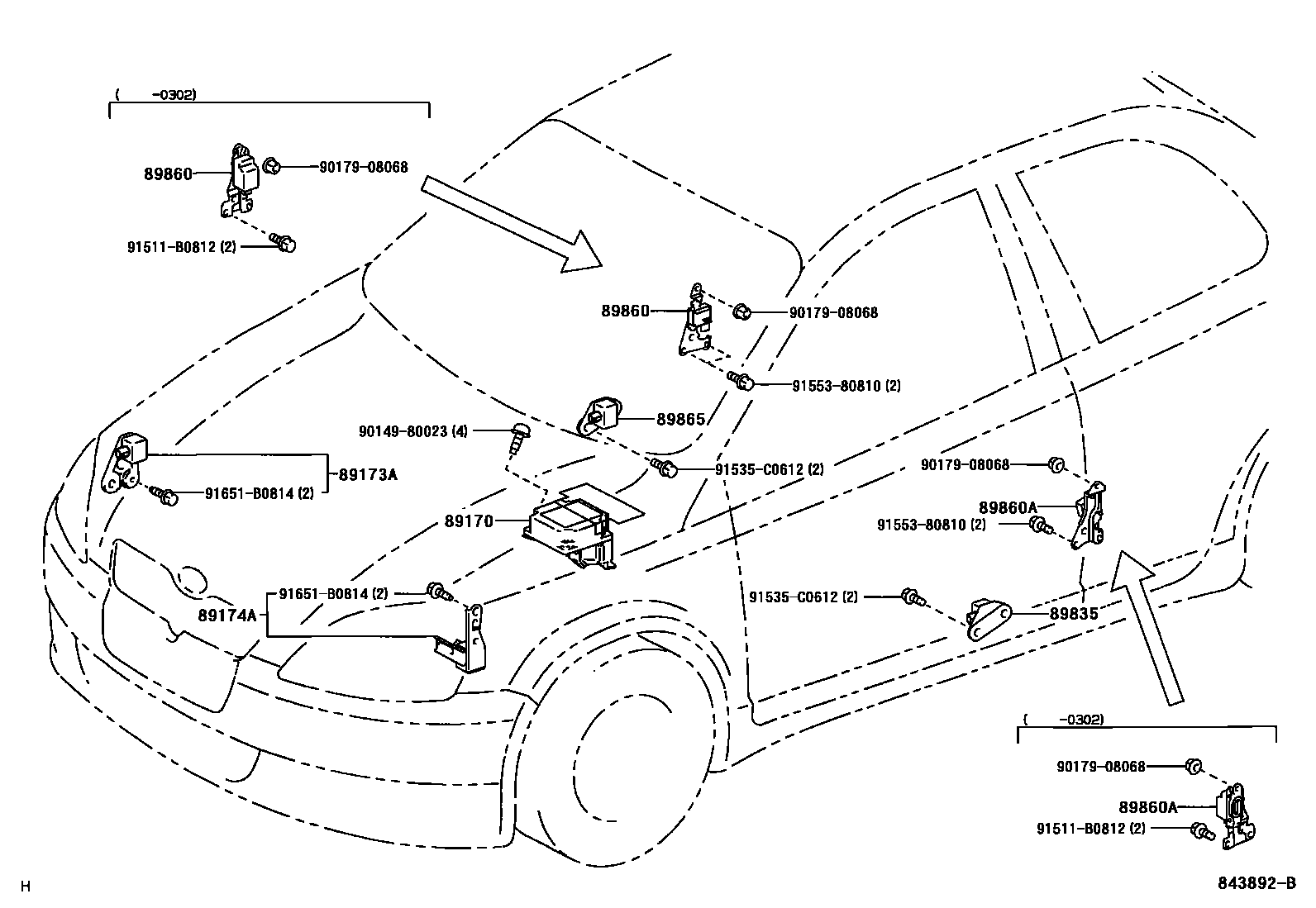

AIR BAG

0001 1 0002 1

89170SENSOR ASSY, AIRBAG

main89170-0D010iSCP1#..3D200101-200302

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

main89170-0D020iSCP1#..5D200101-200302

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

main89170-0D030iSCP1#200101-200302

main89170-0D040iSCP1#200101-200302

*80,DRIVER SIDE & PASSENGER SIDE

main89170-0D070iNLP10,SCP1#..FRP200302

main89170-0D080iNLP10,SCP1#..FRP200302

*80,DRIVER SIDE & PASSENGER SIDE

main89170-0D090iNLP10,SCP1#..FRP..3D200302

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

main89170-0D100iNLP10,SCP1#..FRP..5D200302

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

89173ASENSOR, AIRBAG, FRONT RH

main89173-59125iSCP1#200101-200302

sub89173-59225

sub82821-30580

main89173-59135iNLP10,SCP1#..FRP200302

89174ASENSOR, AIRBAG, FRONT LH

main89174-59065iSCP1#200101-200302

sub89174-59155

main89174-59075iNLP10,SCP1#..FRP200302

89835SENSOR, DOOR SIDE AIRBAG, LH

main89835-52010iSCP1#..3D200101-200302

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-0D010iSCP1#..3D200101-200302

main89860-0D020iSCP1#..5D200101-200302

main89860-0D030iNLP10,SCP1#..FRP..3D200302

main89860-0D040iNLP10,SCP1#..FRP..5D200302

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-0D010iSCP1#..3D200101-200302

main89830-0D020iSCP1#..5D200101-200302

main89830-0D030iNLP10,SCP1#..FRP..3D200302

main89830-0D040iNLP10,SCP1#..FRP..5D200302

89865SENSOR, DOOR SIDE AIRBAG, RH

main89865-52010iSCP1#..3D200101-200302

9014980023

main90149-80023

9017908068

main90179-08068

91511B0812

main91511-B0812

91535C0612

main91535-C0612

9155380810

main91553-80810

91651B0814

main91651-B0814

13 parts on this diagram · 2 diagrams in section
