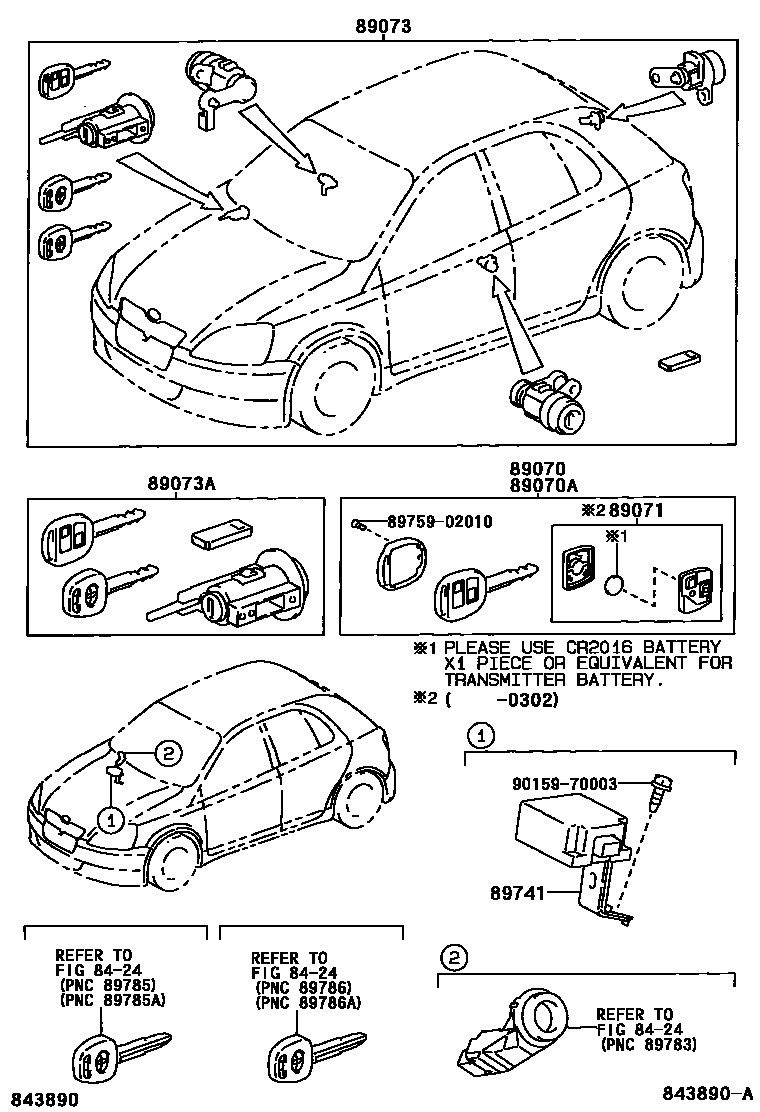

WIRELESS DOOR LOCK
8424
89070TRANSMITTER ASSY, DOOR CONTROL
89070ATRANSMITTER, DOOR CONTROL (CUT KEY)
89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
W(DOUBLE-LOCK)
W(DOUBLE-LOCK)
89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
W(DOUBLE-LOCK)
W(DOUBLE-LOCK)
89073AIGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)
W(DOUBLE-LOCK)
W(DOUBLE-LOCK)
89741RECEIVER, DOOR CONTROL
8975902010SCREW, DOOR CONTROL TRANSMITTER
main89759-02010
9015970003
main90159-70003
9 parts on this diagram · 2 diagrams in section
