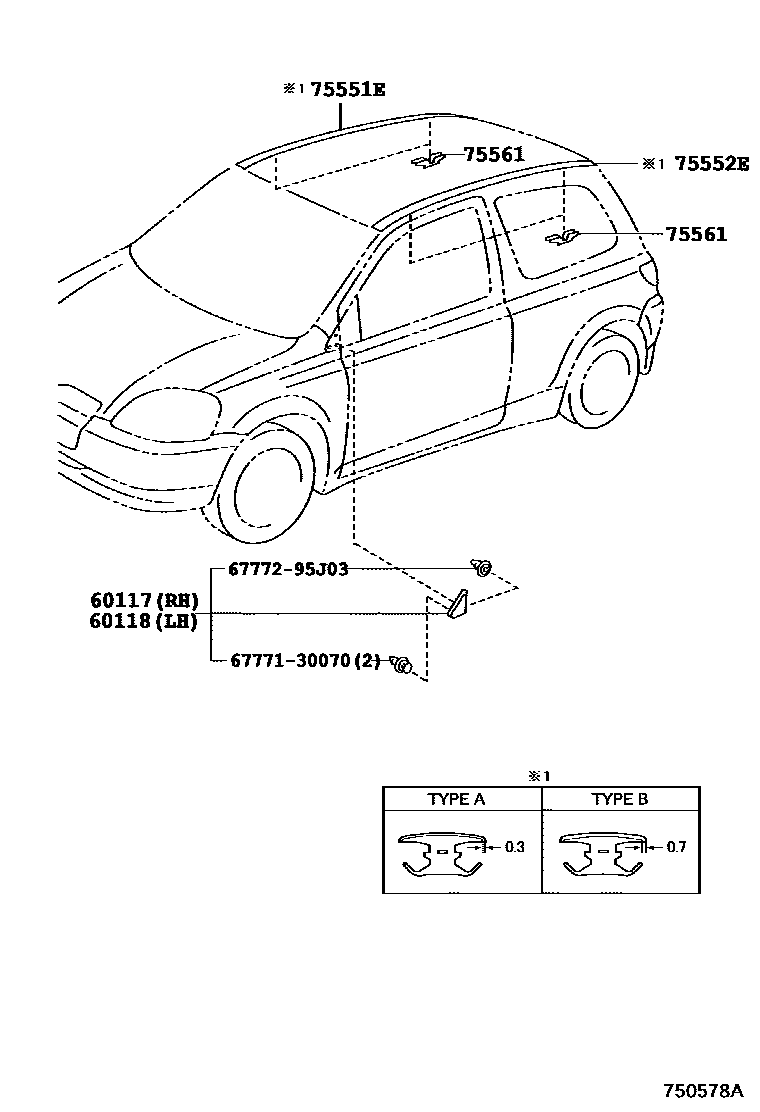

SIDE MOULDING

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-0D010iSCP1#200101-200302

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-0D010iSCP1#200101-200302

75551EMOULDING, ROOF DRIP SIDE FINISH, RH

main75551-0D010iSCP1#200101-200310

sub75551-0D011

main75551-0D011iNLP10,SCP1#..FRP200310-200506

main75551-0D011iNLP10,SCP1#..FRP200506

TYPE A:REFER ILLUST.

main75551-52011iNLP10,SCP1#..FRP200506

TYPE B:REFER ILLUST.

75552EMOULDING, ROOF DRIP SIDE FINISH, LH

main75551-0D010iSCP1#200101-200310

sub75551-0D011

main75551-0D011iNLP10,SCP1#..FRP200310-200506

main75551-0D011iNLP10,SCP1#..FRP200506

TYPE A:REFER ILLUST.

main75551-52011iNLP10,SCP1#..FRP200506

TYPE B:REFER ILLUST.

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-52020iSCP1#200101-200302

6777130070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30070

6777295J03WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J03

7 parts on this diagram · 1 diagram in section
