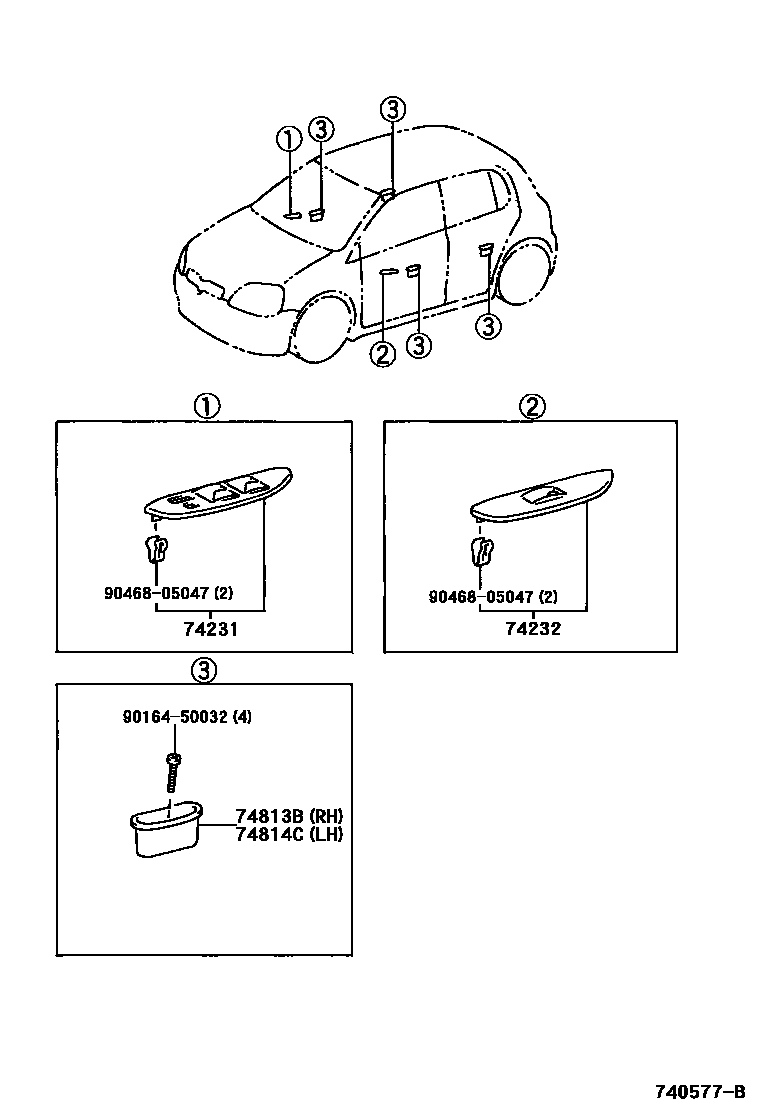

ARMREST & VISOR

0001 1 0002 1

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74230-52070iSCP12..FRP..RHD..TRSTD¥3,670200306

W(ELECTRIC REMOTE CONTROL MIRROR)

main74230-52070iSCP10..FRP..RHD..TRSTD..5F¥3,670200306-200312

main74230-52080iNLP10,SCP12..FRP..LHD..TRSTD¥4,040200306

W(ELECTRIC REMOTE CONTROL MIRROR)

main74230-52080iSCP10..FRP..LHD..TRSTD..5FS¥4,040200401

main74231-52020-B0iNLP10,SCP1#..FRP..RHD..TRSTD200302

DK.GRAY,TRIM10,11,17

sub74231-52020¥1,810

main74231-52020-B0iNLP10,SCP1#..FRP..RHD..SOL200302

DK.GRAY,TRIM10,11

sub74231-52020¥1,810

main74231-52020-C0iSCP1#..RHD200101-200302

SHADOW GRAY,TRIM1#,7#

sub74231-52020¥1,810

main74231-52030iSCP1#..LHD¥2,030200101-200208

main74231-52030-B0iNLP10,SCP1#..FRP..LHD..SOL200302

DK.GRAY,TRIM10,11,17

sub74231-52030¥2,030

main74231-52030-B0iNLP10,SCP1#..FRP..LHD..TRSTD200302

DK.GRAY,TRIM10,11

sub74231-52030¥2,030

main74231-52030-C0iSCP1#..LHD200208-200302

SHADOW GRAY,TRIM1#,7#

sub74231-52030¥2,030

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-52010-B2iNLP10,SCP1#..FRP..LHD..5D..TRSTD200302

W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM10,11

sub74232-52010¥1,810

main74232-52010-B2iNLP10,SCP1#..FRP..LHD..5D..TRSTD200302

W(POWER WINDOW---FRONT & REAR),DK.GRAY,TRIM10,11,17

sub74232-52010¥1,810

main74232-52010-C0iSCP1#..LHD..5D200101-200302

W(POWER WINDOW---FRONT & REAR),SHADOW GRAY,TRIM1#,7#

sub74232-52010¥1,810

main74232-52020-B2iNLP10,SCP1#..FRP..LHD..SOL200302

W(POWER WINDOW---FRONT ONLY),DK.GRAY,TRIM10,11,17

sub74232-52020¥1,810

main74232-52020-B2iNLP10,SCP1#..FRP..LHD..TRSTD200302

DK.GRAY,TRIM10,11

sub74232-52020¥1,810

main74232-52020-C0iSCP1#..LHD200101-200302

W(POWER WINDOW---FRONT ONLY),SHADOW GRAY,TRIM1#,7#

sub74232-52020¥1,810

main74232-52030-B0iNLP10,SCP1#..FRP..RHD..SOL200302

W(POWER WINDOW---FRONT ONLY),DK.GRAY,TRIM10,11,17

sub74232-52030¥2,030

main74232-52030-B0iNLP10,SCP1#..FRP..RHD..SOL200302

DK.GRAY,TRIM10,11

sub74232-52030¥2,030

main74232-52030-C0iSCP1#..RHD200101-200302

W(POWER WINDOW---FRONT ONLY),SHADOW GRAY,TRIM1#,7#

sub74232-52030¥2,030

main74240-52060iNLP10..FRP..RHD..TRSTD¥4,040200306-200312

main74240-52060iSCP12..FRP..RHD..TRSTD¥4,040200306

CARBON GRAIN & W(DOUBUL LOCK)

main74240-52070iSCP10..FRP..LHD..TRSTD..5FS¥3,670200306

CARBON GRAIN

main74240-52090iNLP10,SCP12..FRP..LHD..5D..TRSTD¥3,330200306

CARBON GRAIN & W(POWER WINDOW---FRONT & REAR)

main74240-52090iSCP10..FRP..LHD..5D..TRSTD..5F¥3,330200401

W(POWER WINDOW=FRONT & REAR)

74813BHANDLE, FRONT DOOR PULL, RH

main74813-0D010-B0iNLP10,SCP1#..FRP..5D..SOL200302

DK.GRAY,TRIM10,11

main74813-0D010-B0iNLP10..FRP..RHD..3D..TRSTD200302-200401

DK.GRAY,TRIM10,11,17

main74813-0D010-B0iNLP10,SCP1#..FRP..3D..SOL200302

DK.GRAY,TRIM10,11,17,18,19

main74813-0D010-B0iNLP10..FRP..RHD..3D..TRSTD200401

DK.GRAY,TRIM10,11,17,18

main74813-0D010-B1iSCP1#..3D200101-200302

SHADOW GRAY,TRIM1#

main74813-0D010-H0iSCP1#..5D200101-200302

FRENCH TURQUOISE,TRIM7#

74814CHANDLE, FRONT DOOR PULL, LH

main74814-0D010-B0iNLP10..FRP..RHD..3D..TRSTD200302-200401

DK.GRAY,TRIM10,11,17

main74814-0D010-B0iSCP10..FRP..RHD..5D..TRSTD..5FS200302

DK.GRAY,TRIM10,11

main74814-0D010-B0iSCP10..FRP..RHD..5D..TRSTD..5FS200302

DK.GRAY,TRIM10,11,17,18,19

main74814-0D010-B0iNLP10..FRP..RHD..3D..TRSTD200401

DK.GRAY,TRIM10,11,17,18

main74814-0D010-B1iSCP1#..3D200101-200302

SHADOW GRAY,TRIM1#

main74814-0D010-H0iSCP1#..5D200101-200302

FRENCH TURQUOISE,TRIM7#

9016450032

main90164-50032¥90

9046805047

main90468-05047¥90

6 parts on this diagram · 2 diagrams in section
