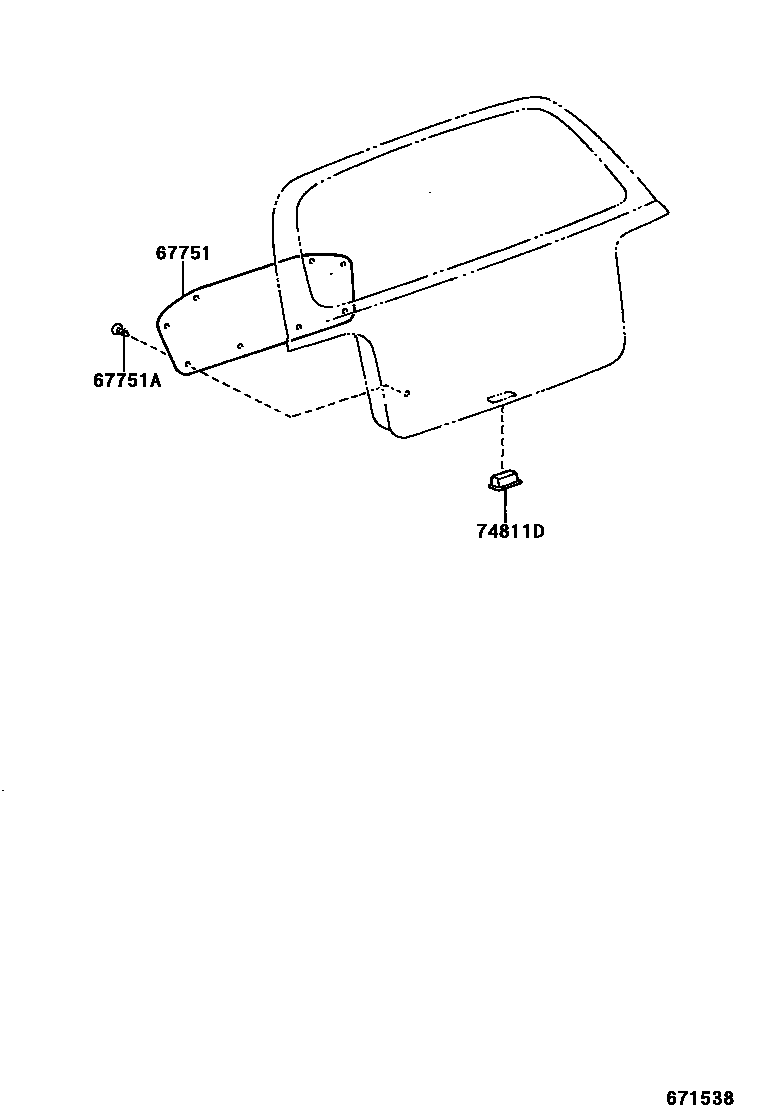

BACK DOOR PANEL & GLASS

0001 1 0002 1

67751BOARD, BACK DOOR TRIM

main67751-0D010-C1iSCP10..FRP..TSGS;SCP10..FRP..RHD..TRSTD..5FS200302

BLACK,TRIM10,11,17,18,19

main67751-0D010-C1iSCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS200302

BLACK,TRIM10,11

main67751-0D010-C1iSCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS200302-200401

BLACK,TRIM10,11,17

main67751-0D010-C1iNLP10..FRP..RHD..TRSTD200401

BLACK,TRIM10,11,17,18

main67751-0D010-C1iSCP1#200101-200302

BLACK,TRIM1#,7#

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-05096-22iNLP10,SCP1#..FRP..SOL200302

BLACK,TRIM10,11,17,18,19

sub90467-05096

main90467-05096-22iSCP1#200101-200302

BLACK,TRIM1#,7#

sub90467-05096

main90467-05096-22iNLP10..FRP..RHD..TRSTD200302-200401

BLACK,TRIM10,11,17

sub90467-05096

main90467-05096-22iNLP10,SCP1#..FRP..SOL200302

BLACK,TRIM10,11

sub90467-05096

main90467-05096-22iNLP10..FRP..RHD..TRSTD200401

BLACK,TRIM10,11,17,18

sub90467-05096

74811DHANDLE, DOOR PULL

main74811-0D010-C0iNLP10,SCP1#..FRP..SOL200302-200401

BLACK,TRIM10,11,17

main74811-0D010-C0iNLP10,SCP1#..FRP..SOL200302

BLACK,TRIM10,11,17,18,19

main74811-0D010-C0iSCP10..FRP..TSGS;SCP10..FRP..RHD..TRSTD..5FS200302

BLACK,TRIM10,11

main74811-0D010-C0iNLP10..FRP..RHD..TRSTD200401

BLACK,TRIM10,11,17,18

main74811-0D010-C0iSCP1#200101-200302

BLACK,TRIM1#,7#

3 parts on this diagram · 2 diagrams in section
